MeshLink Motor
1 / 4

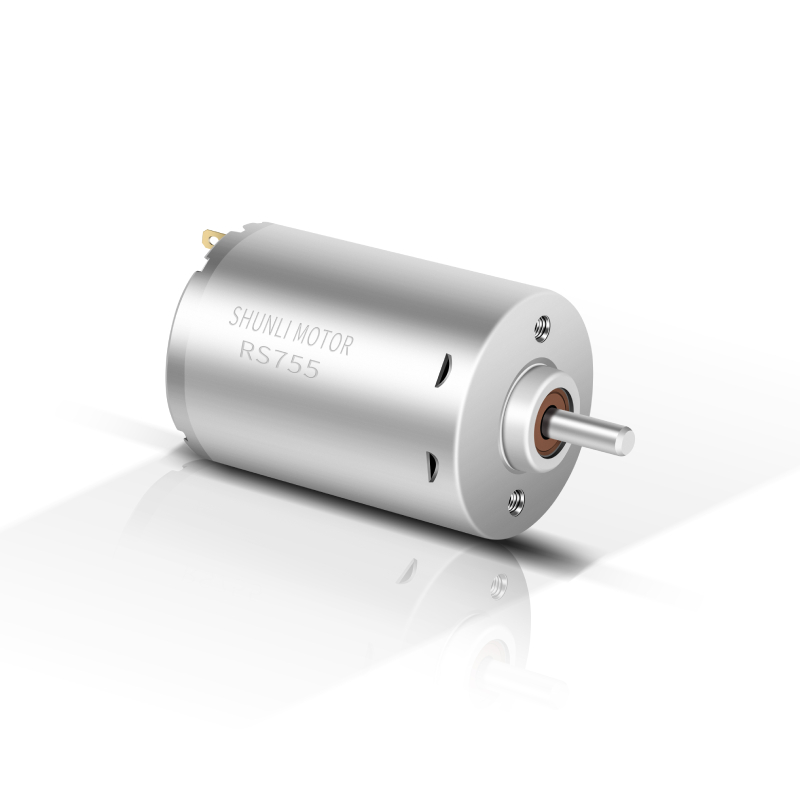

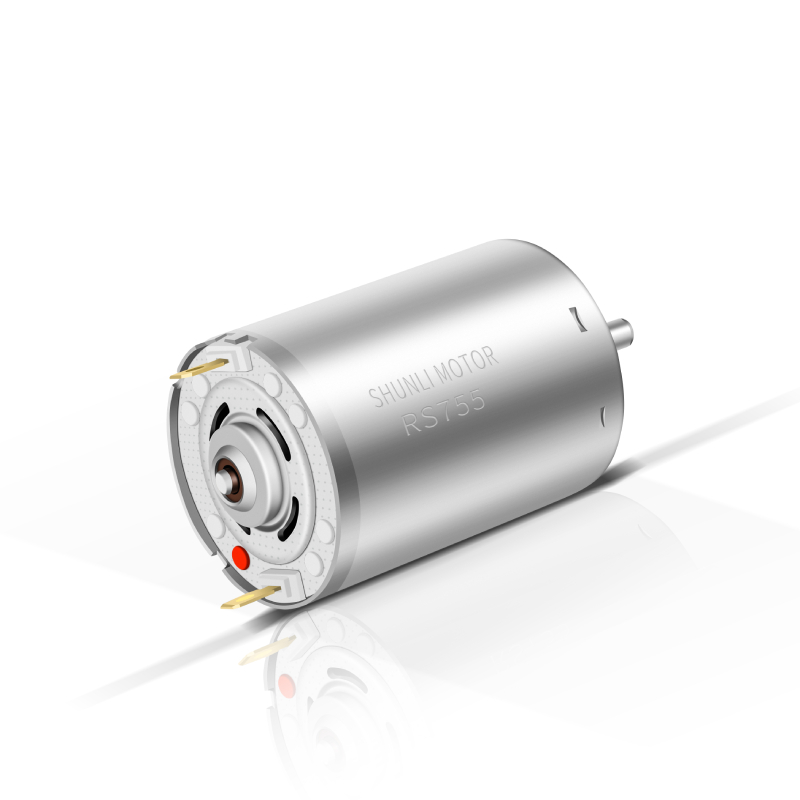

This high-performance permanent magnet brushed DC motor offers exceptional speed and reliability for various industrial and home appliance applications. Available in both 750 and 755 series, these motors are designed for high-efficiency operation.
Model: RS-755 H
Model: RS-775 H

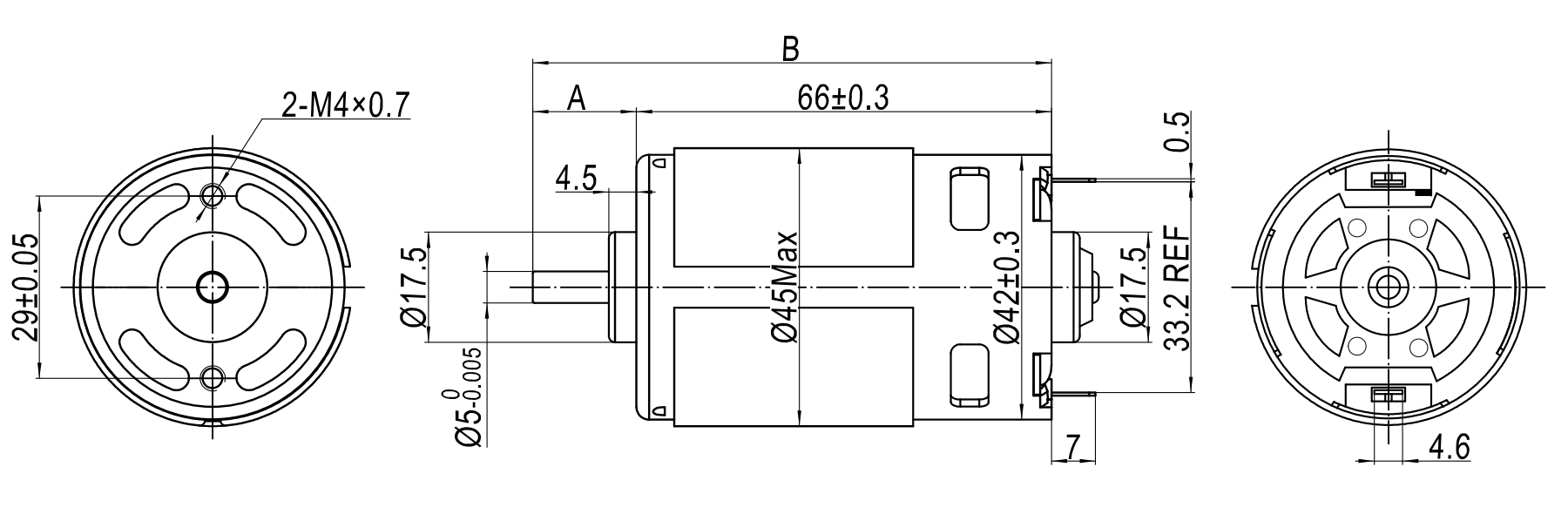

💡 Customization Note: The length of the shaft can be fully customized based on your design needs.
| Model | Voltage (V) | No-Load | Rated | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | |
| RS-750H | 6.0~12.0 | 12 VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6 | 66.6 | 55.6 | 393.1 |
| RS-755H | 3.0~6.0 | 6 VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1 | 38.2 | 66.34 | 306.9 |
Our motors are widely used in home appliances, power tools, automotive components, and micro-mechanical equipment.
