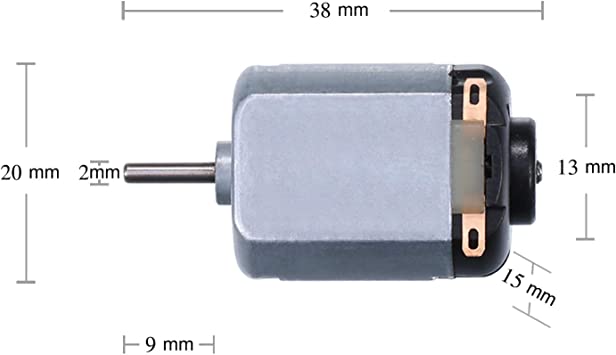

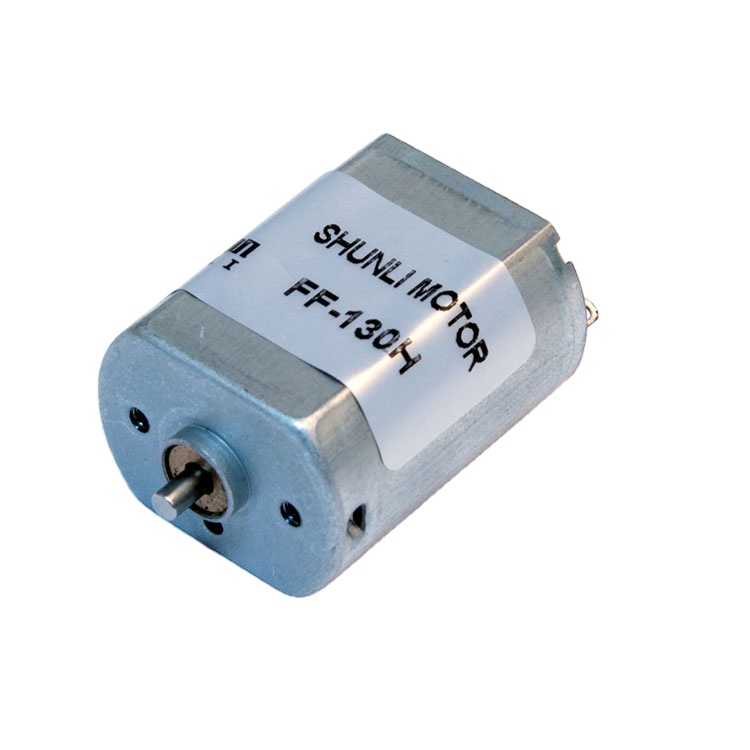

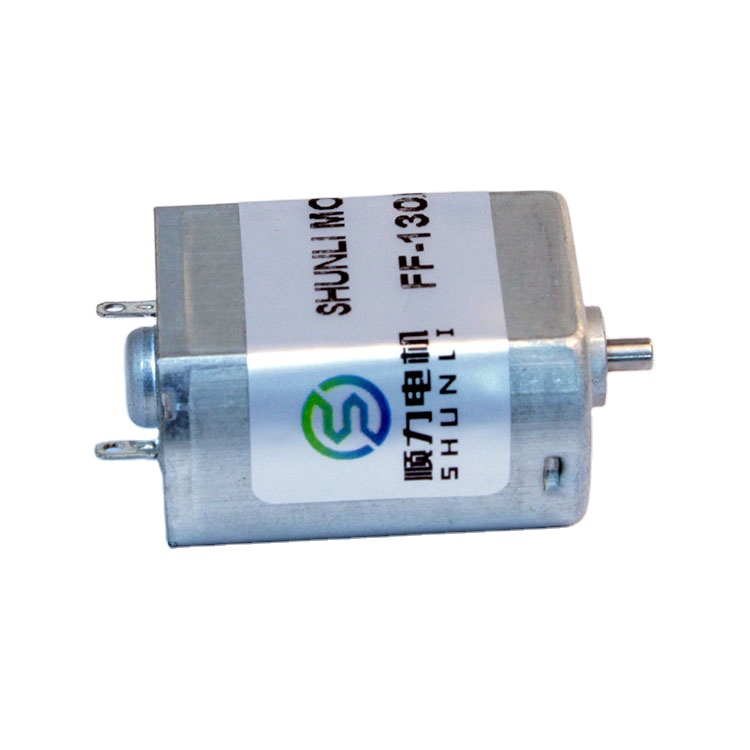

Safe product 3v 24v 130 20mm dc electric mini motor for toy. Mini electric hobby motor 3V-12V 25000 RPM powerful magnetic propeller with shaft for toy applications.
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m | W | mA | mN.m | ||||
| FF-130PA | 2.0~3.0 | 2.3VDC | 4000 | 70 | 2500 | 300 | 1.32 | 13.8 | 760 | 3.92 | |
| 3.0~6.0 | 6VDC | 11500 | 100 | 10000 | 390 | 1.27 | 1.33 | 2300 | 10 | ||
| FF-130SH | 1.5~3.0 | 3VDC | 12800 | 270 | 10337 | 1130 | 1.9 | 2.08 | 4750 | 10 | |
| FK-130PH | 6.0~9.0 | 7.19VDC | 2700 | 20 | 1999 | 50 | 0.8 | 0.17 | 150 | 3 | |
