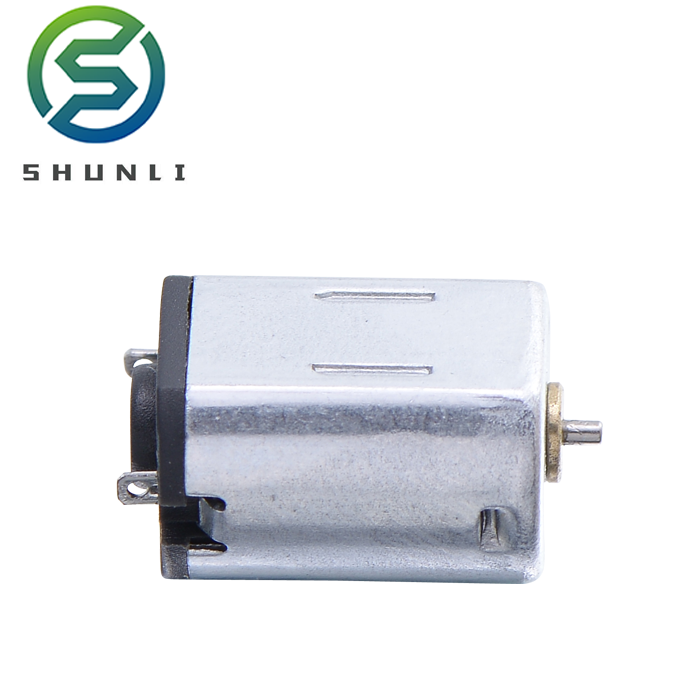

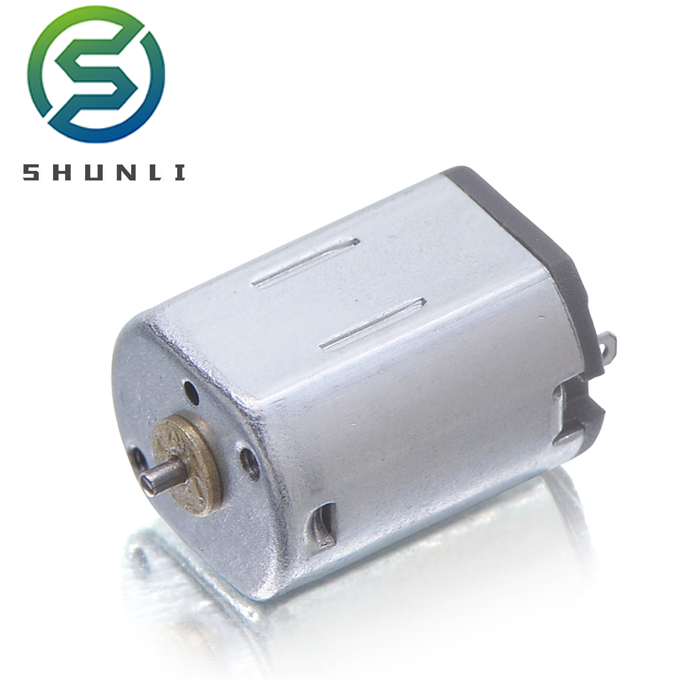

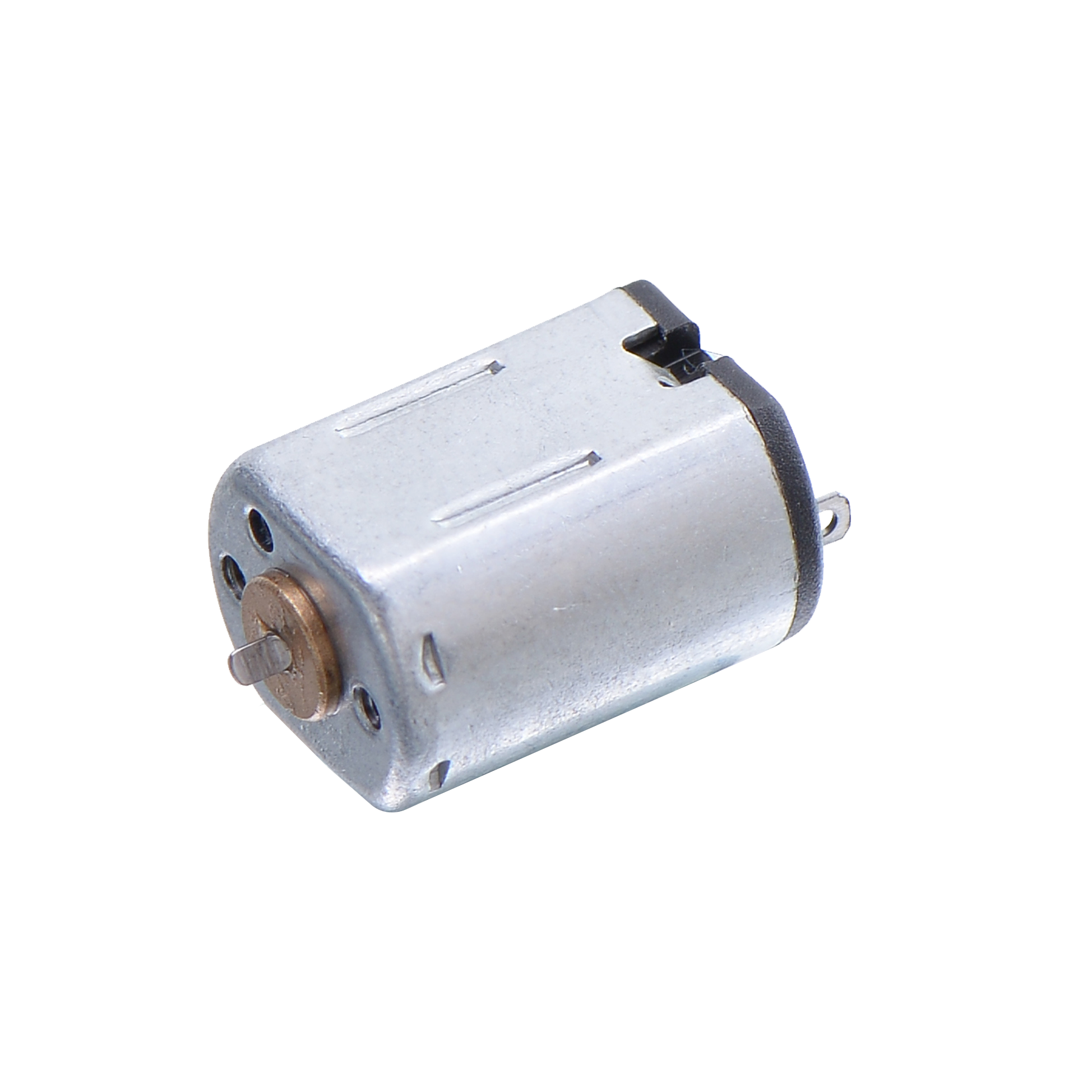

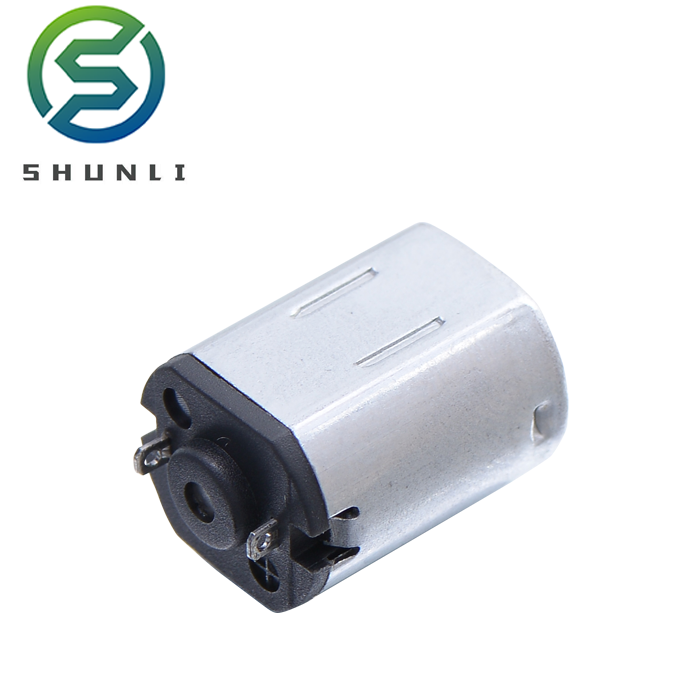

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

1 / 4

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

Send Inquiry

Product Description

Product Overview

⚙️

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Technical Specifications

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Range	Nominal	Speed(RPM)	Current(mA)	Speed(RPM)	Current(mA)	Torque(mN.m)	Power(W)	Current(mA)	Torque(mN.m)
FF-N20VA	05240	3.0~12.0	12 VDC	16100	15	12240	60	0.3/3	0.37	210	1.2/12
FF-N20VA	08260	2.0~5.0	5 VDC	14600	30	11800	110	0.26/2.6	0.31	470	1.3/13
FF-N20TA	2818	0.8~1.5	1.5 VDC	34000	70	31000	1140	0.2/2	0.64	6000	1.6/16

Wide Applications

Quality Assurance

Why choose our motors:

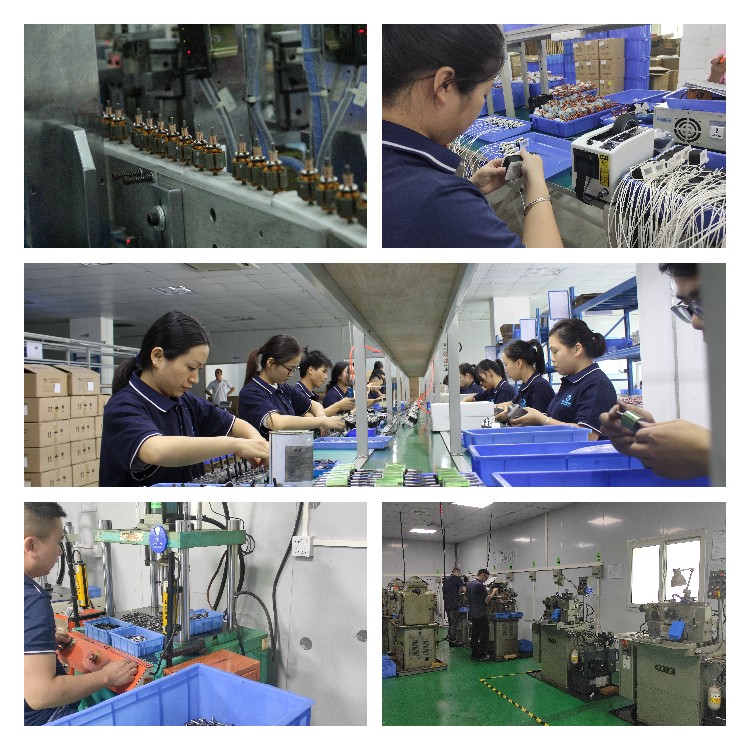

We are a factory specializing in motor production for more than 14 years. Our professional R&D team and mature management ensure a superior experience.

To ensure consistent quality, every step from material reception to final shipment is carefully checked. Quality is the foundation of our development.

Certifications

Professional Services

Credible Supplier: We maintain high credibility in the micro motor industry.

100% On-time Delivery: Ensuring your products arrive exactly when needed.

Fast Sampling: Standard samples within 2 weeks; customized samples within 3 weeks.

Timely Reply: All messages are processed and replied to within 2 hours.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.

What payment terms do you offer for new customers?

New customers can pay online via major cards (MasterCard, Visa), PayPal, or TT (Telegraphic Transfer).

Can you customize a motor if I can't find a suitable model?

Yes, we can customize a motor specifically according to your technical requirements and applications.

Do your motors have international certifications?

Yes, our motors carry CE, FCC, and ISO certifications. We can also apply for other specific certificates if required.

How do you manage quality control?

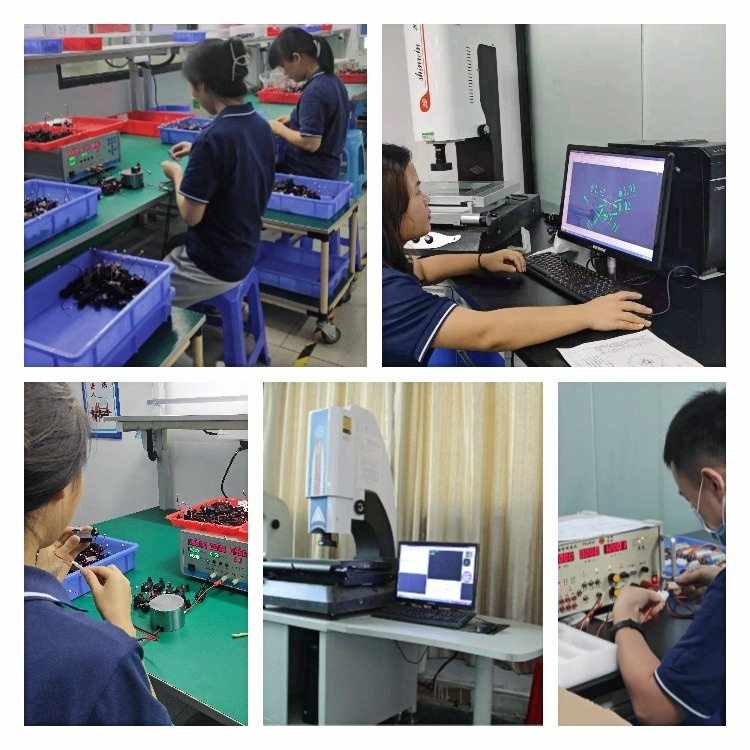

We employ professional inspection staff at every production stage and use advanced testing equipment like Salt Spray Chambers, Life Testers, and Noise Testers.

What is the expected lead time for samples?

Standard samples are typically produced within 2 weeks, while customized sample requests are completed within 3 weeks.
