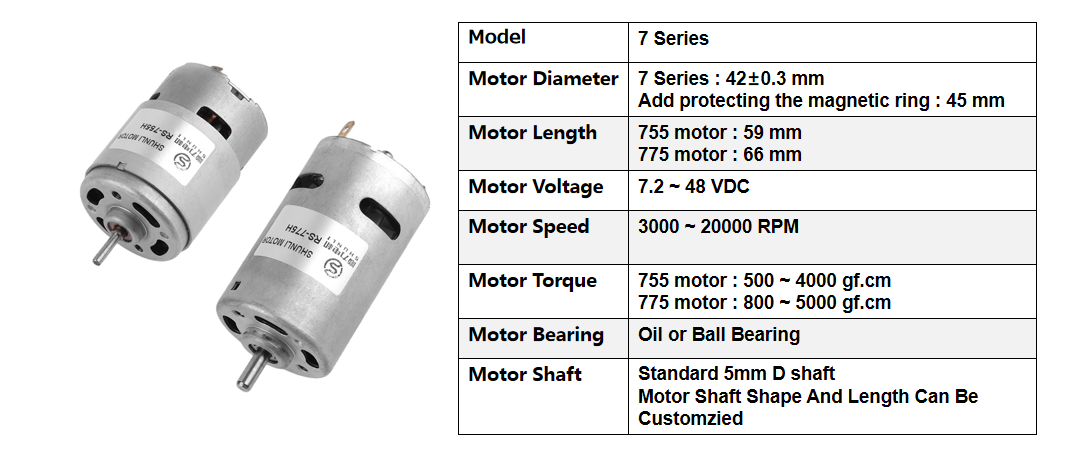

Motor Customized Specification available.

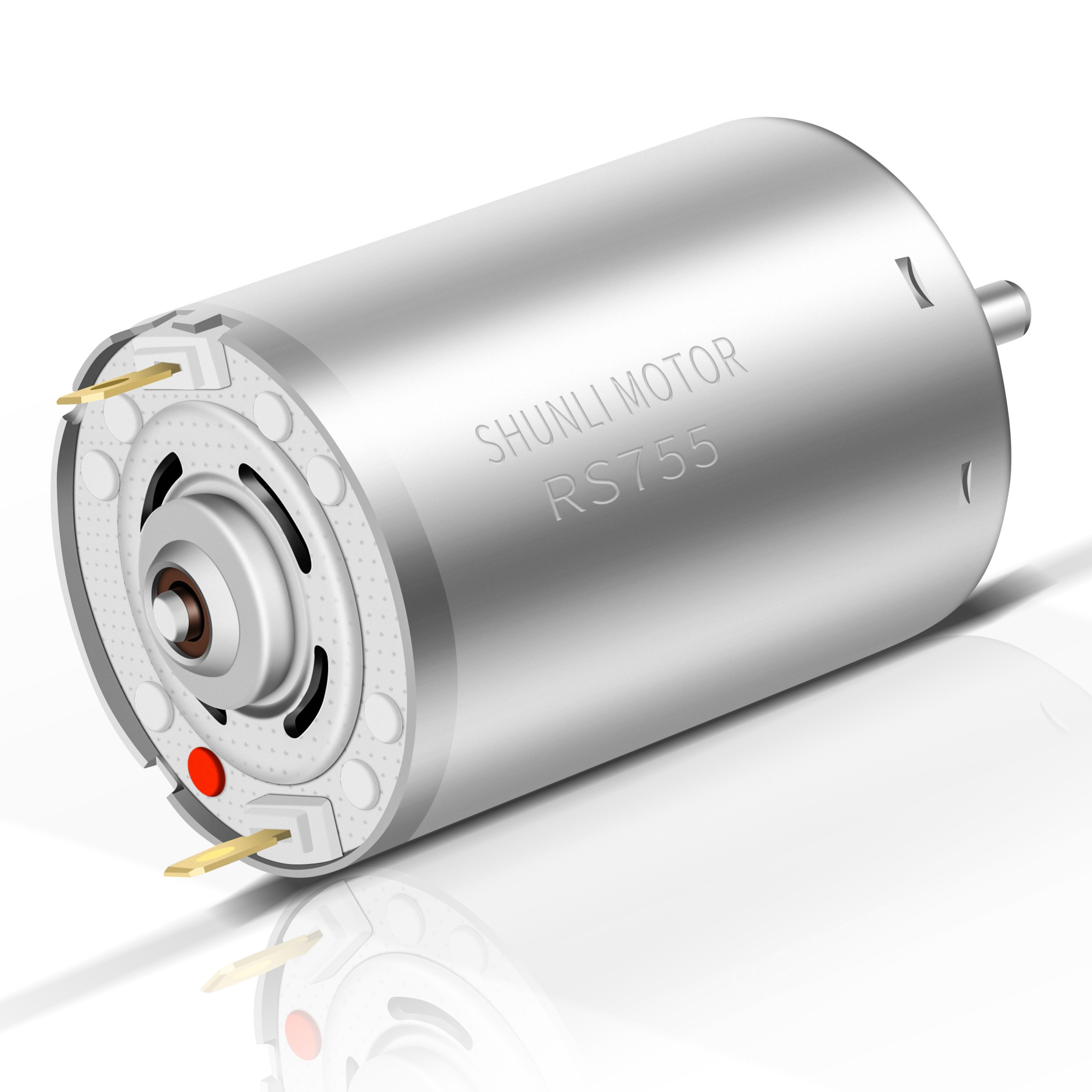

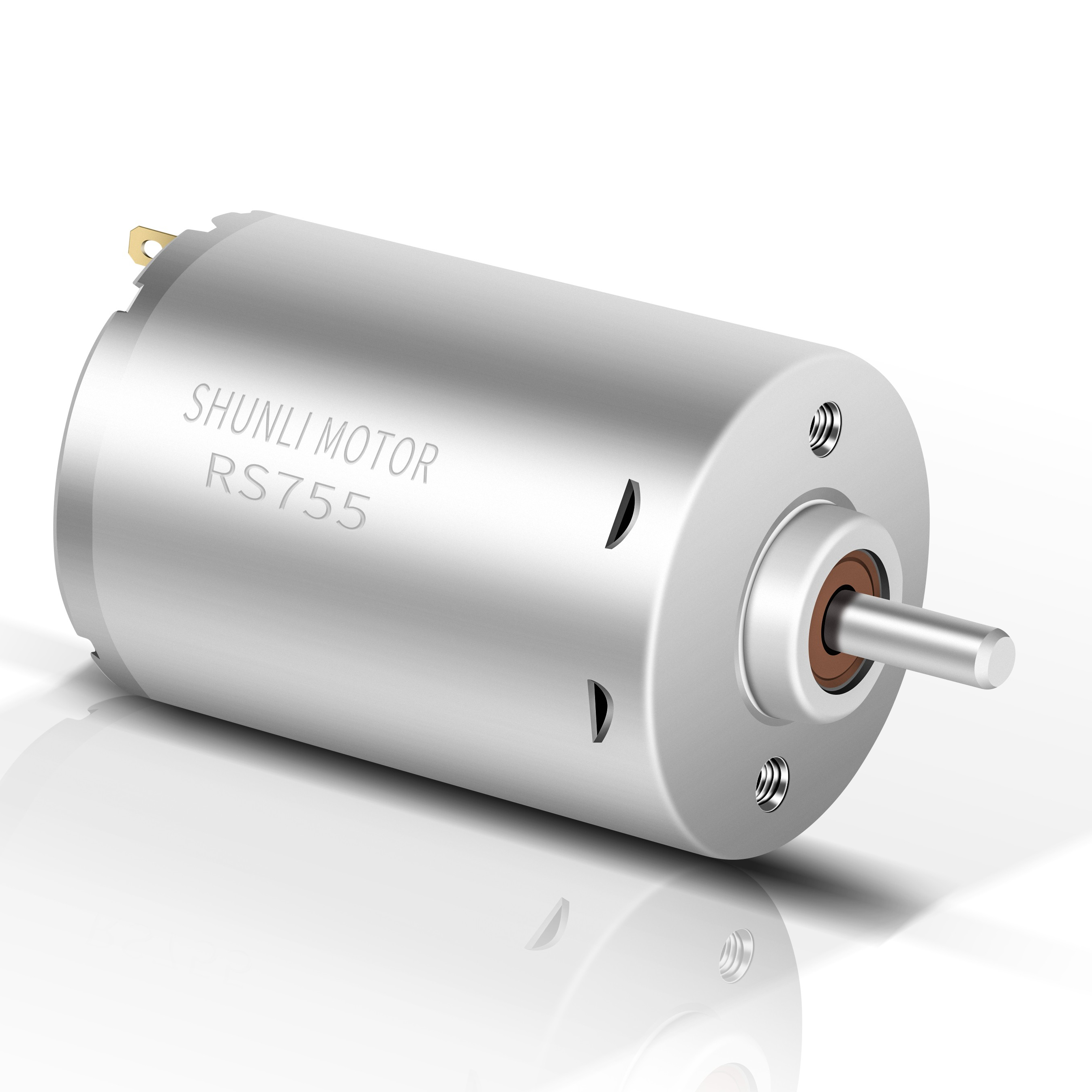

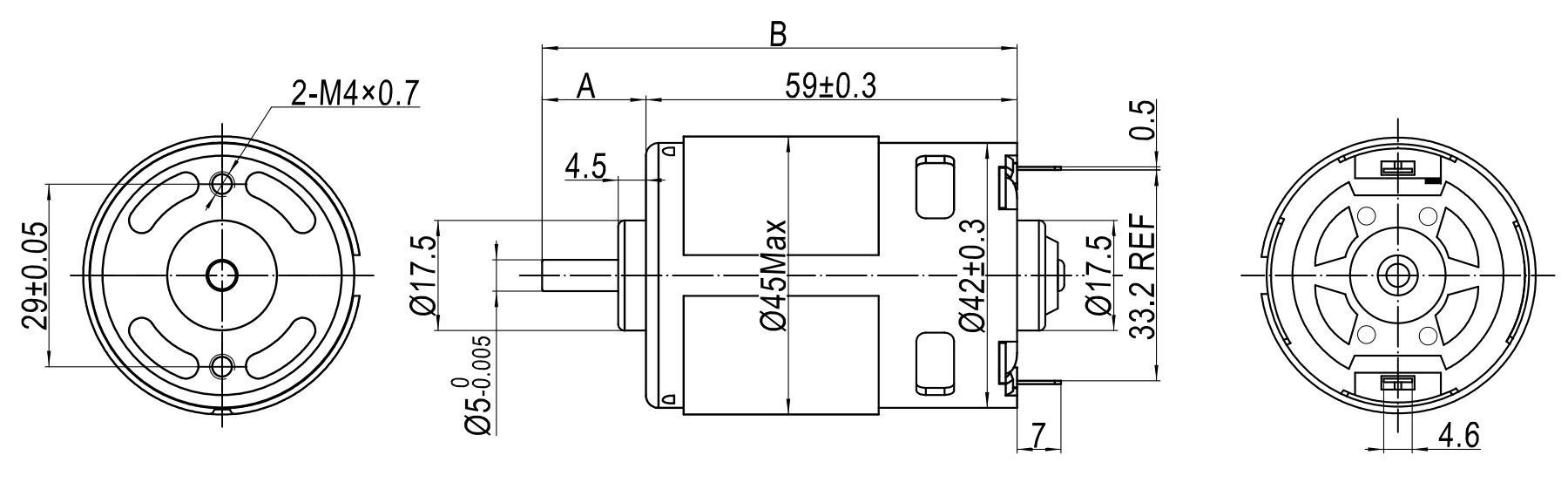

------ RS - 755 H

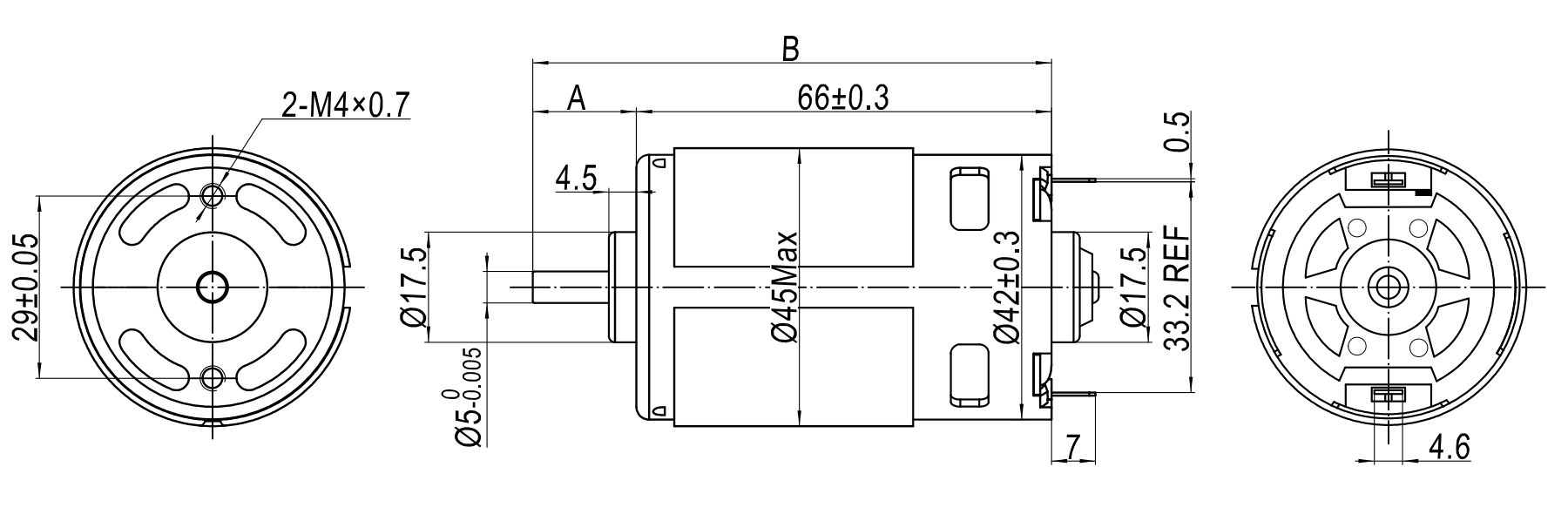

------ RS - 775 H
The length of shaft can be customized.
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-770H | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81/826.2 | 111.8 | 115 | 666.9/6802 | |
| RS-775H | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4/452.9 | 13.35 | 4.07 | 245.7/2506 | |
Specializing in motor production for more than 14 years with a professional R&D team.
Strict quality inspection from material receiving to final shipment. Quality is our basis.
Gold seller with high credibility in the industry.
100% on-time delivery rate ensuring timely arrival of products.
Standard samples within 2 weeks; Customized samples within 3 weeks.
Timely reply: all messages will be replied to within 2 hours.
