MeshLink Motor
1 / 5

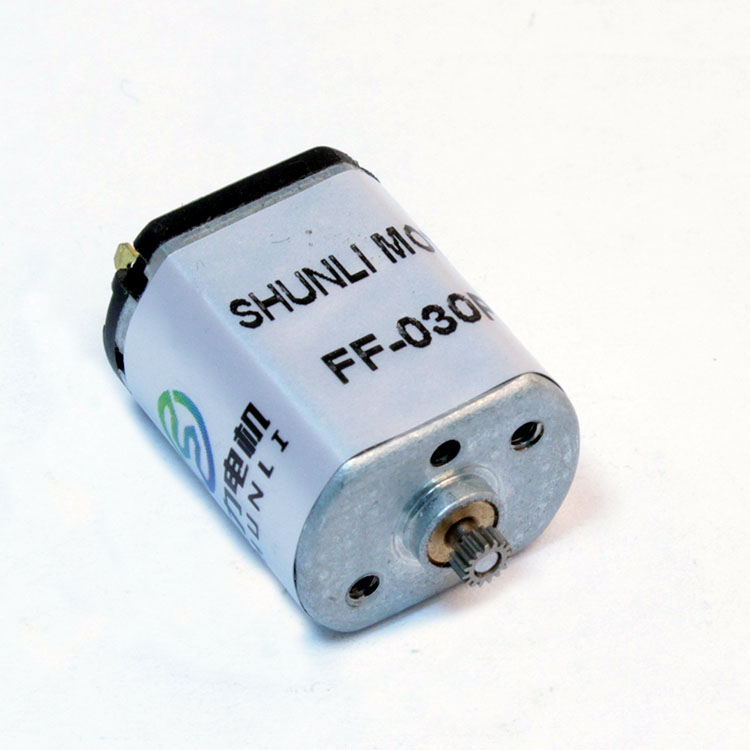

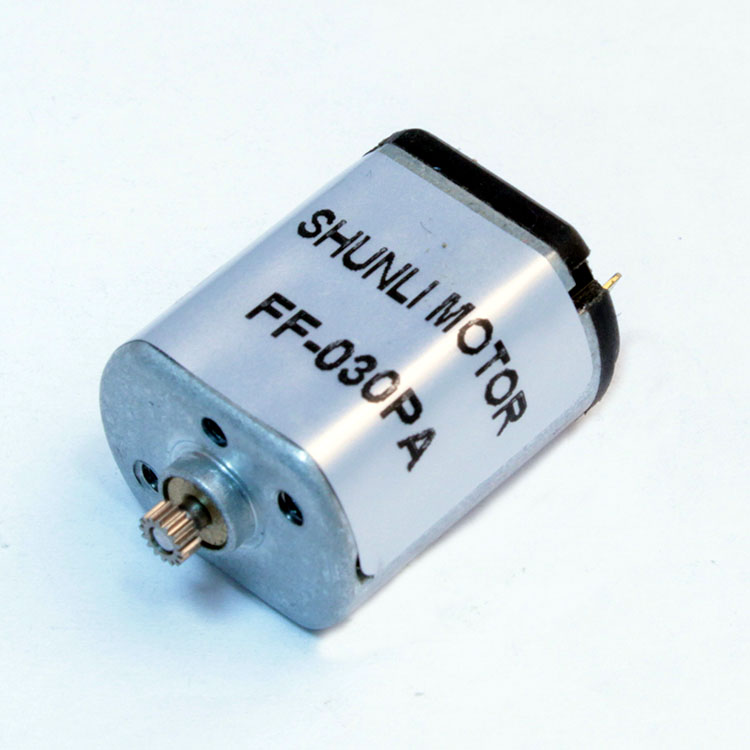

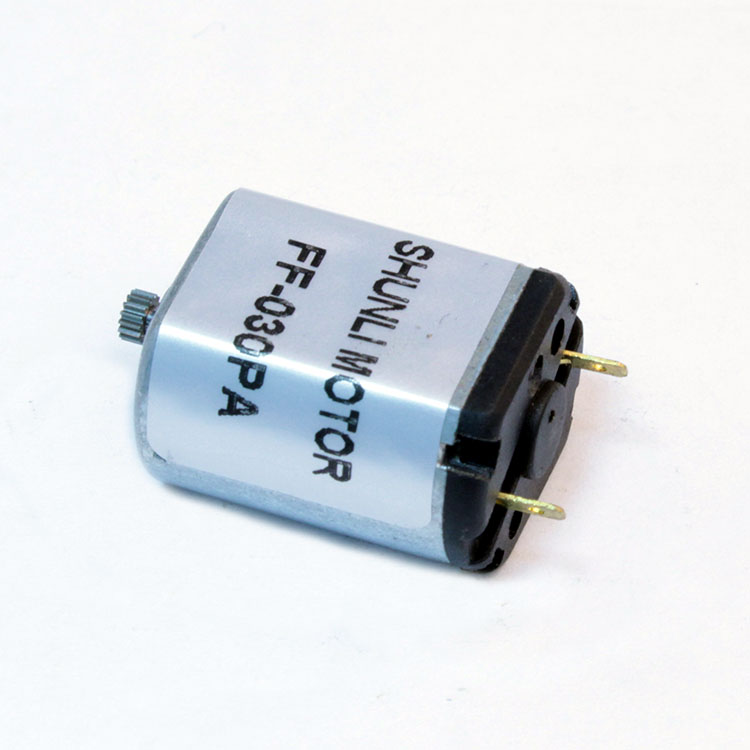

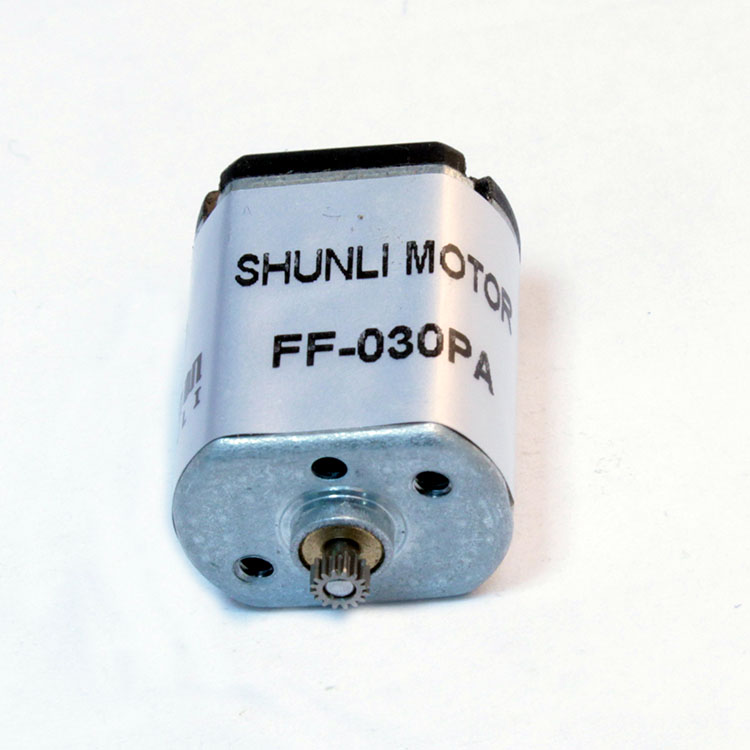

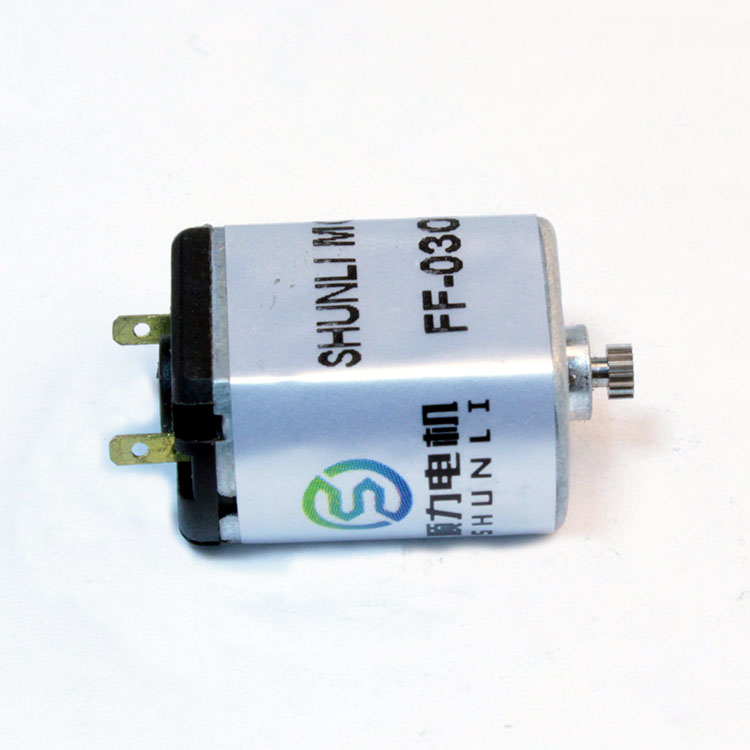

High-performance DC motor with speeds ranging from 14,000 RPM to 20,000 RPM. Specifically designed for micro fans and compatible with counterweights for vibration applications.
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Code | Range | Nominal | Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m) | Power (W) | Current (mA) | Torque (mN.m) |
| FF-030PA | 11155 | 2.0~4.0 | 3VDC | 7200 | 45 | 5500 | 170 | 0.49 | 0.28 | 590 | 2.06 |
| 1592 | 2.0~4.0 | 3.5VDC | 14300 | 90 | 12500 | 300 | 0.49 | 0.64 | 2000 | 3.92 | |
| FF-030PK | 05440 | 3.5~12.0 | 12VDC | 11000 | 20 | 7800 | 65 | 0.49 | 0.4 | 180 | 1.67 |
Explore more parameters via technical support.
Established in 2005, this high-tech enterprise integrates the research, development, production and sales of various micro DC motors, geared motors, planetary geared motors, and special gearbox motors. Products are widely used in automobiles, communications equipment, smart home, medical equipment, and intelligent security across more than 50 countries and regions.
Equipped with advanced production equipment and testing instruments from Germany, Japan, and Switzerland to strictly control the quality of each motor.
