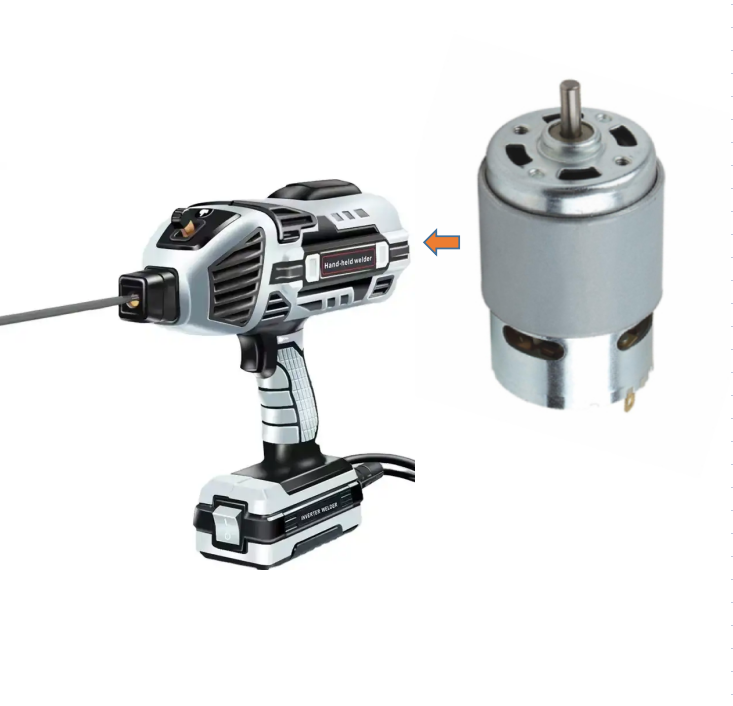

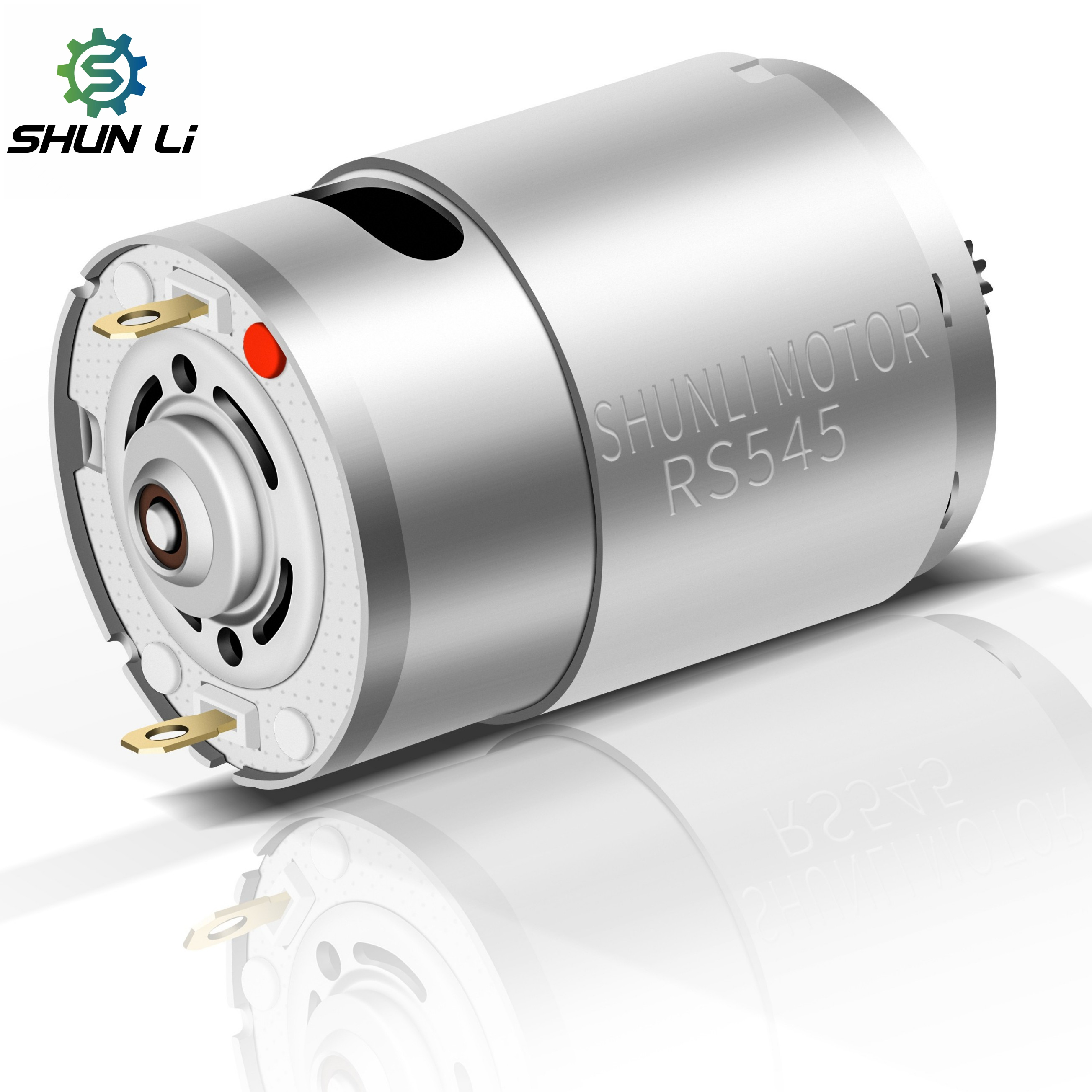

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

1 / 4

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

Send Inquiry

Product Description

Product Description

SRS-555 12v 24v micro dc motor for water pump

🚀 Motor Customized Specification available.

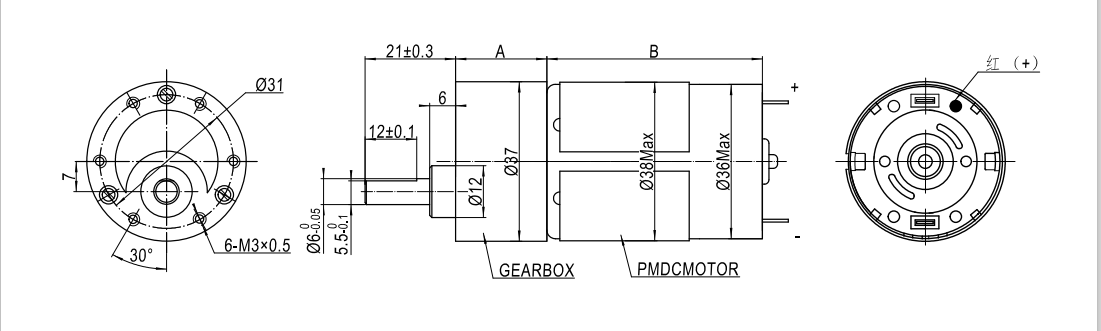

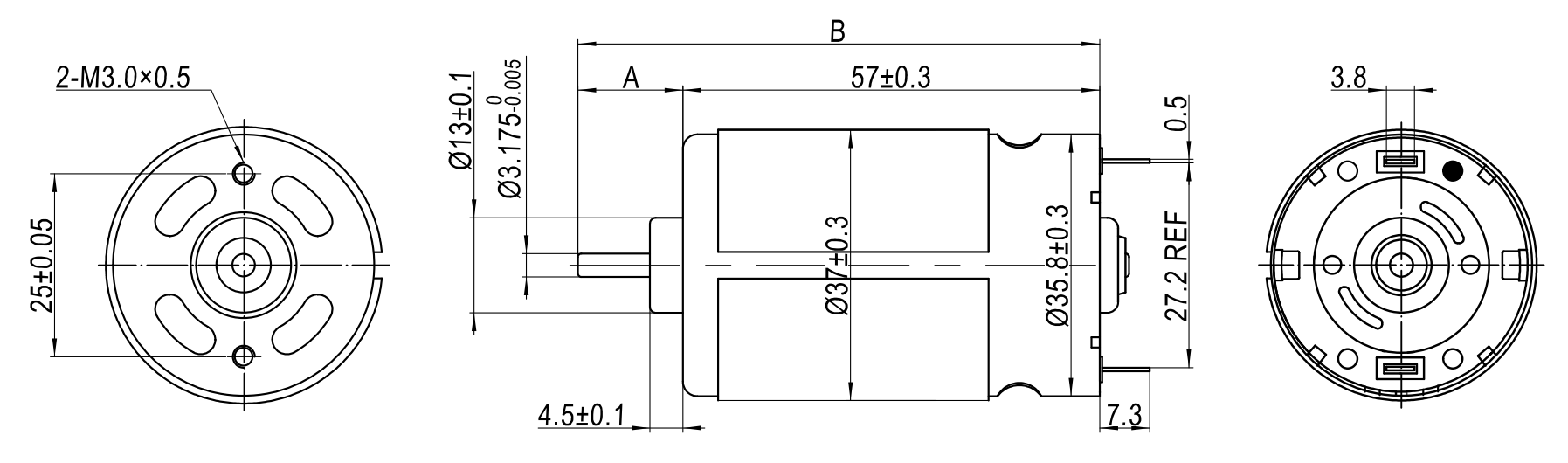

Reference Drawing

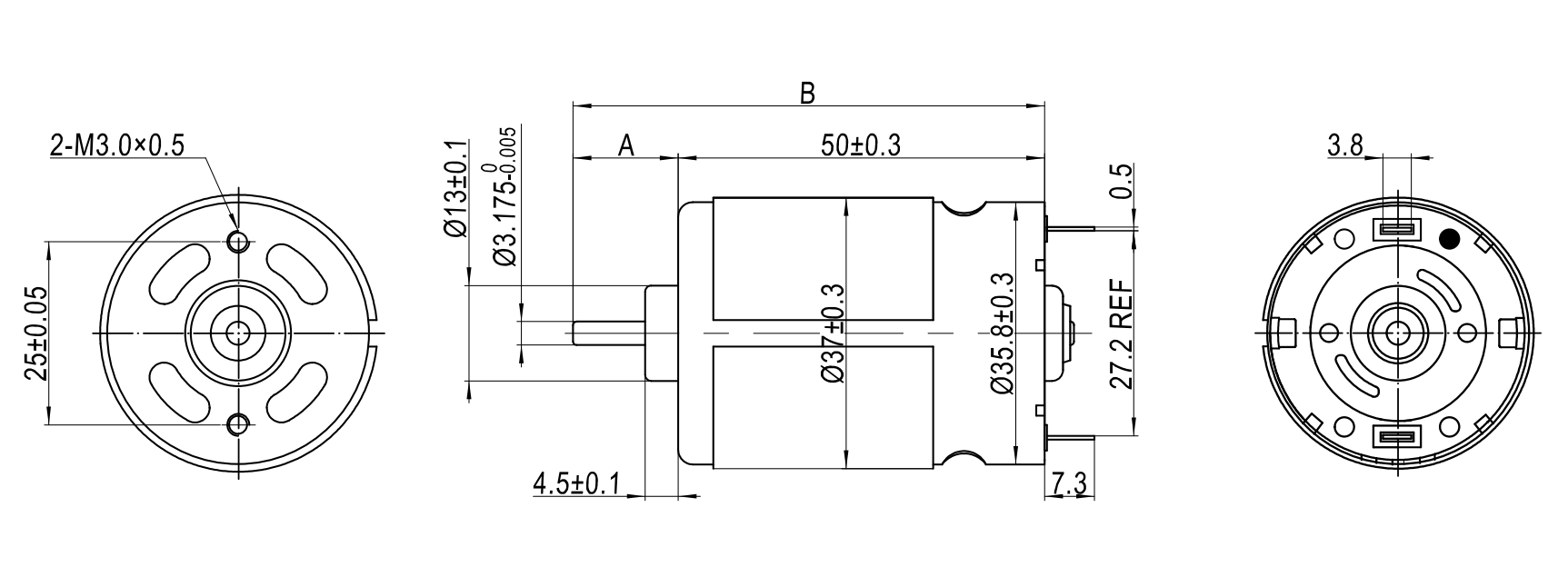

------ RS - 545 A

------ RS - 555 A

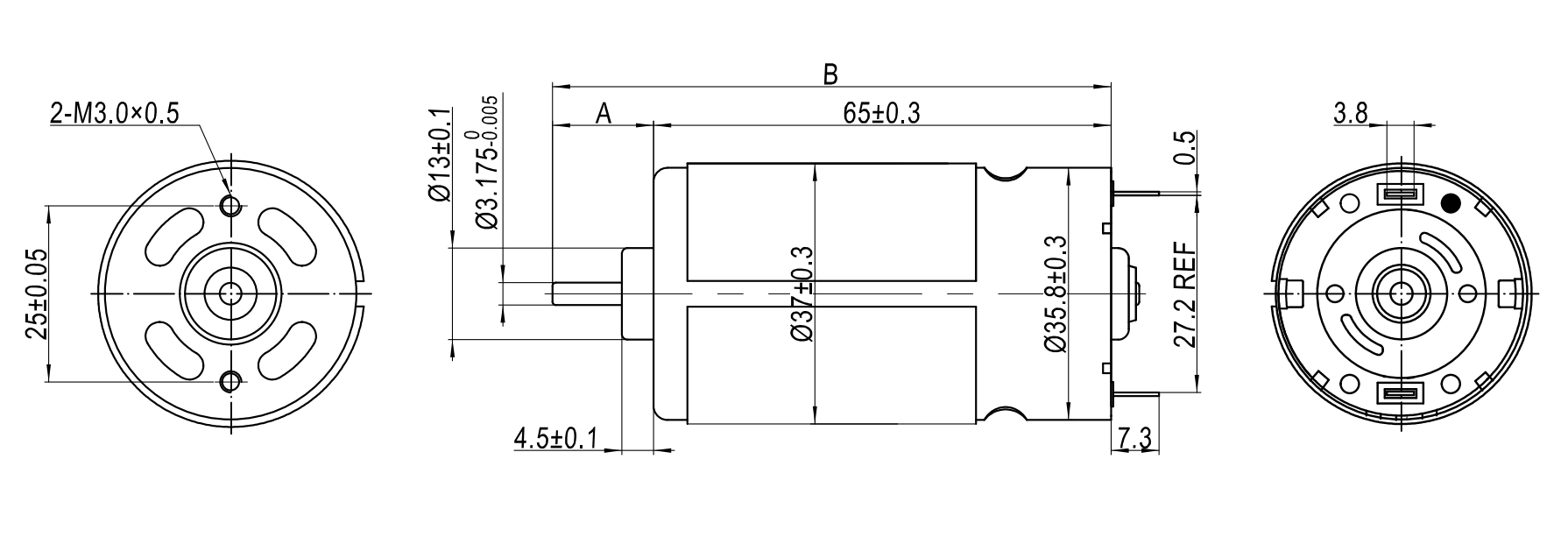

------ RS - 575 A

🛠️ The length of shaft can be customized.

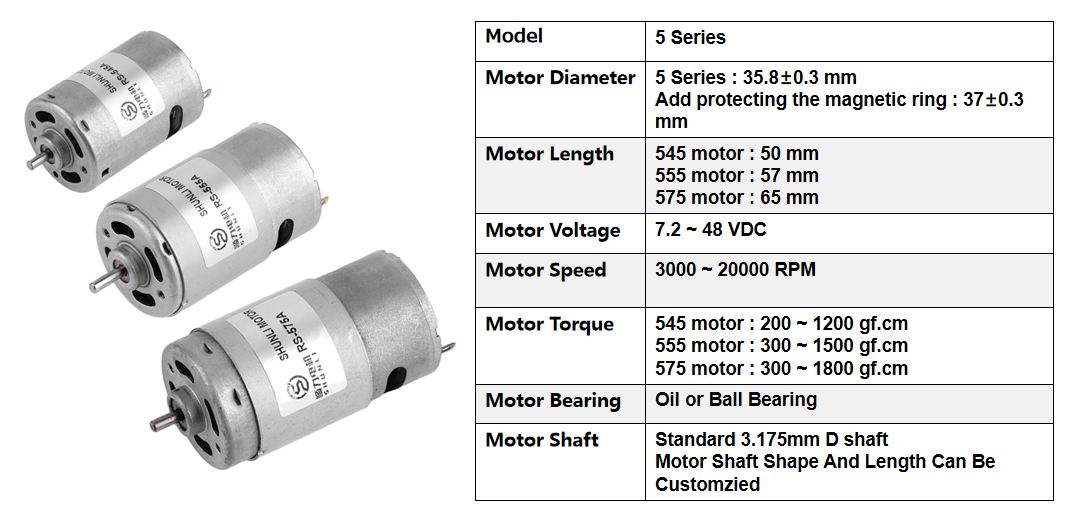

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Range	Nominal	RPM	A	RPM	A	mN.m	W	A	mN.m
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7	10.6	4.8	204
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6	40.36	48.89	281.4
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9	15.35	11.31	156
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2	12.09	4.2	124.5

Application

Certifications

FAQ

Are you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We support multiple payment methods including Online Assurance Orders (MasterCard, Visa), PayPal, and TT.

Can you customize a motor if I can't find a suitable one on the website?

Yes, we can customize motors according to specific customer requirements, including shaft length and performance specifications.

What certificates do you have for your motors?

Our products are certified with CE, FCC, ISO, etc. We can also apply for other specific certificates if required.

How do you ensure quality control?

We utilize professional checking staff on every production line and perform final testing with equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.

Do you provide samples before bulk orders?

Yes, we can provide samples for quality testing and specification verification prior to mass production.
