MeshLink Motor
1 / 5

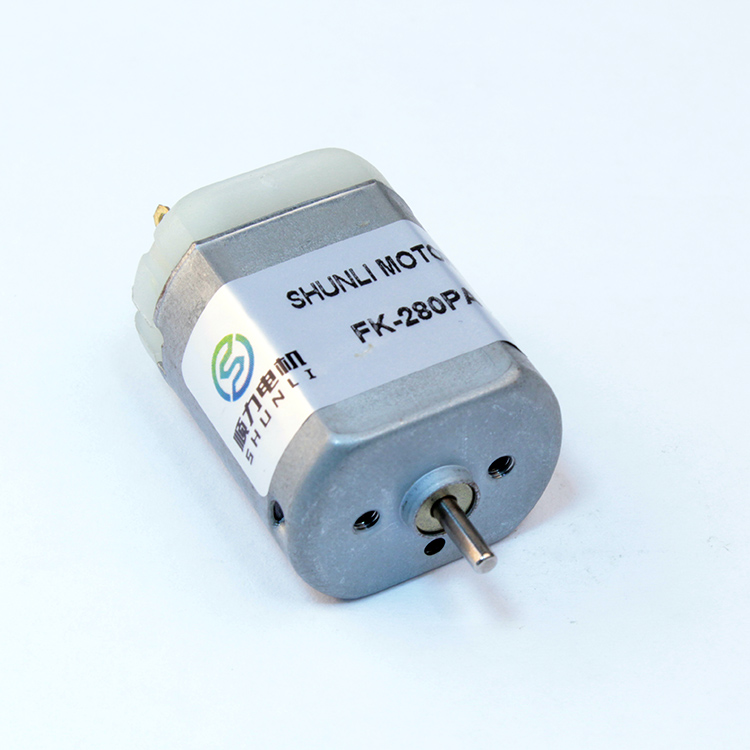

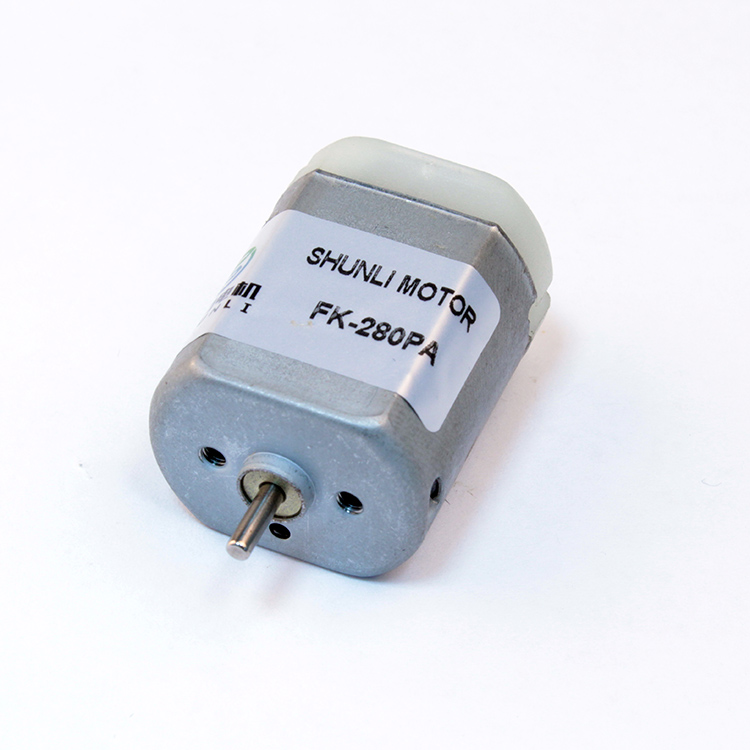

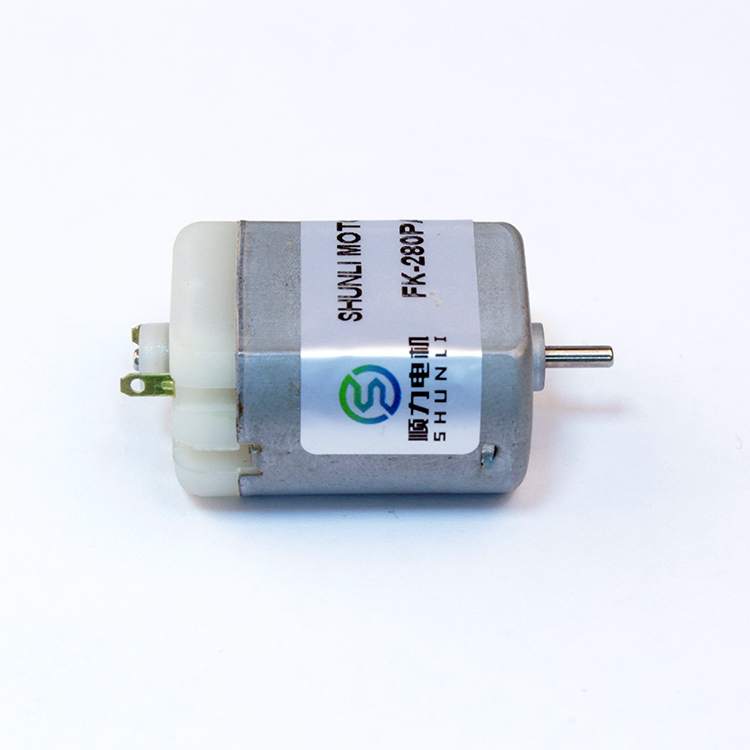

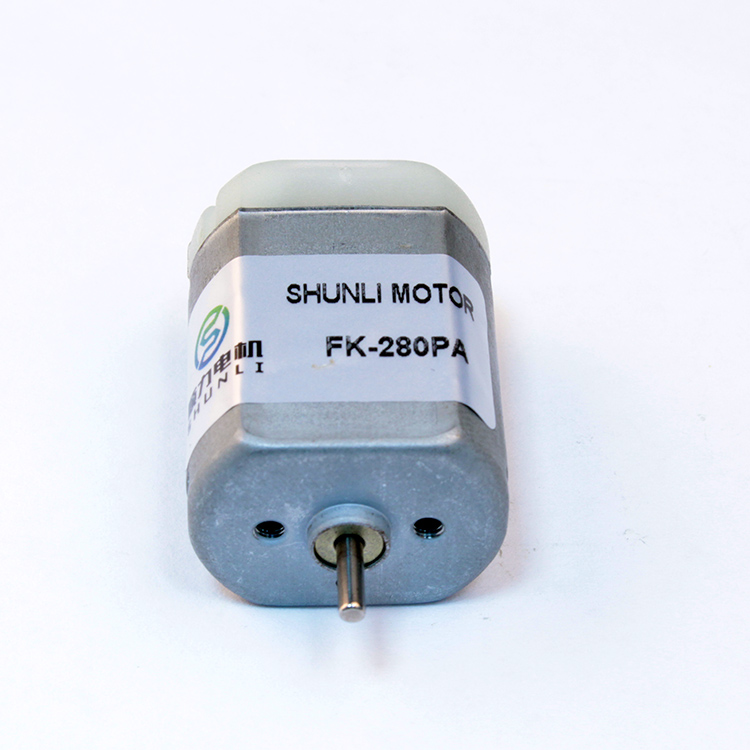

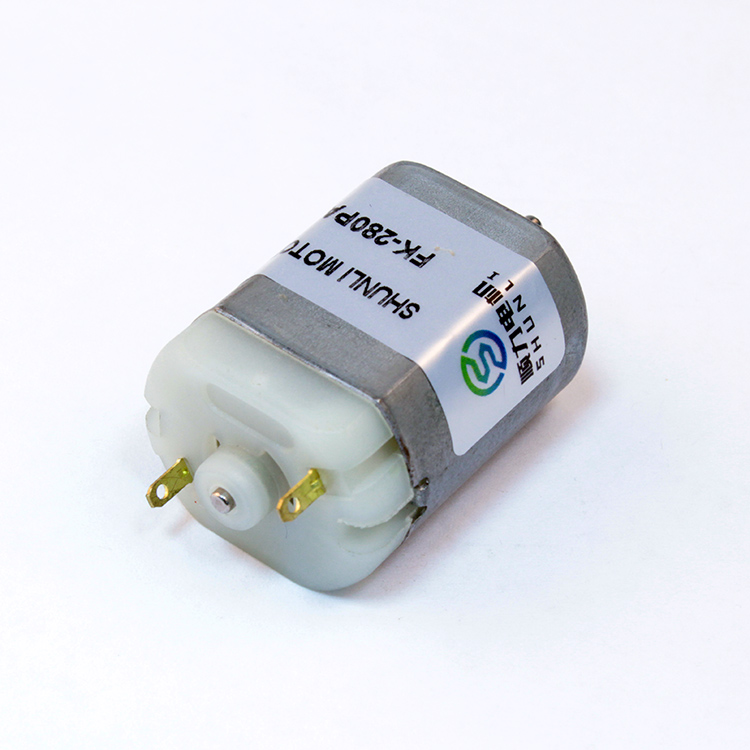

This micro DC motor is designed for high performance and reliability, offering both strong and normal power options to suit various application needs. Featuring a permanent magnet structure and a lightweight 42g design, it is an ideal choice for compact electric bicycle components and precision devices.
| Model | Voltage (V) | No-Load | Rated Load | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Range | Nominal | Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m) | Power (W) | Current (mA) | Torque (mN.m) | |
| FK-280SA-4525 | 1.0-2.0 | 1.2V | 8670 | 730 | 6560 | 2240 | 1.74 | 1.3 | 8430 | 9.61 |
| FK-280SA-16245 | 6.0-12.0 | 12V | 7300 | 60 | 6027 | 290 | 3.4 | 2.15 | 1350 | 19.5 |
Our motors are widely utilized in security systems, children's electric toys, micro household appliances, and precision automotive components.
