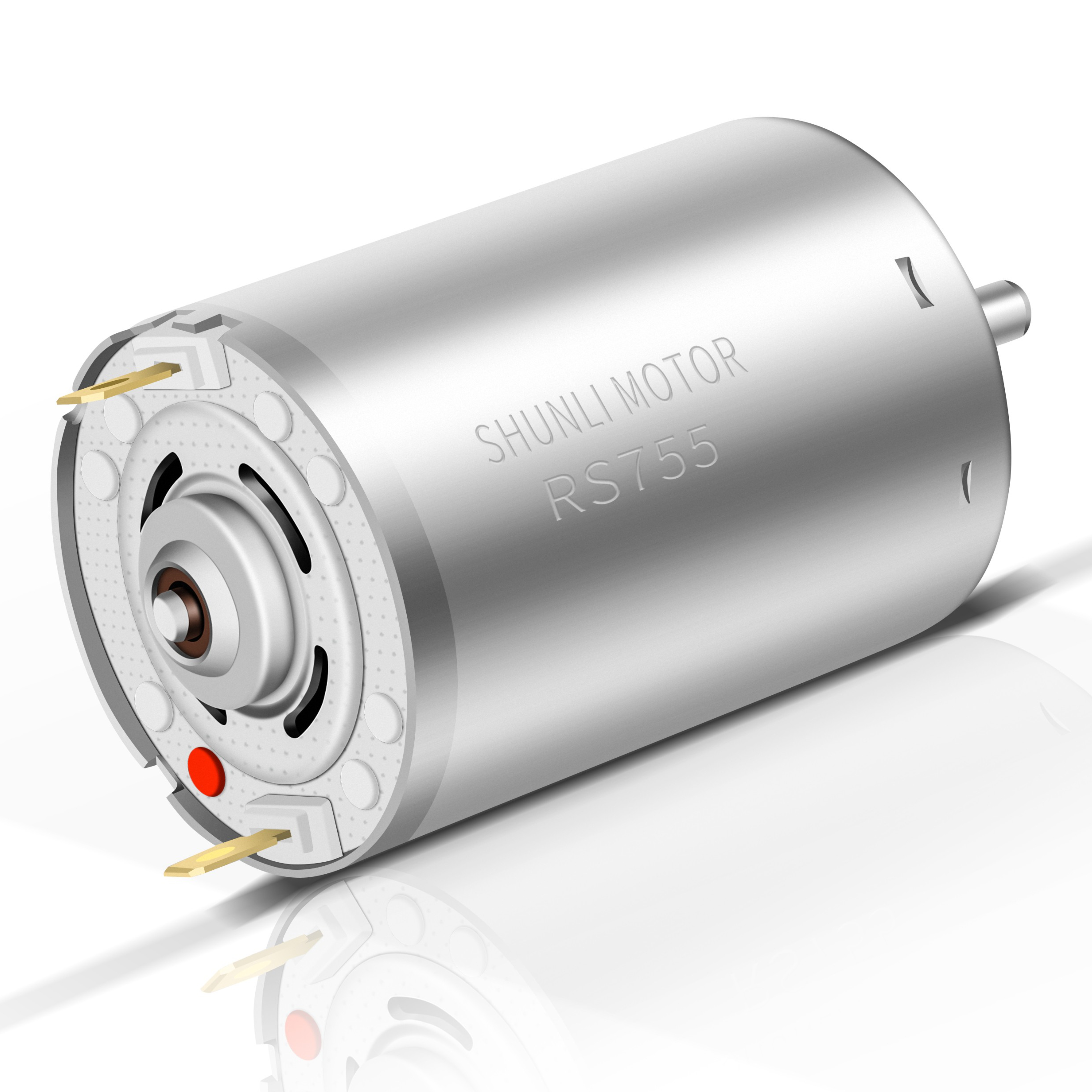

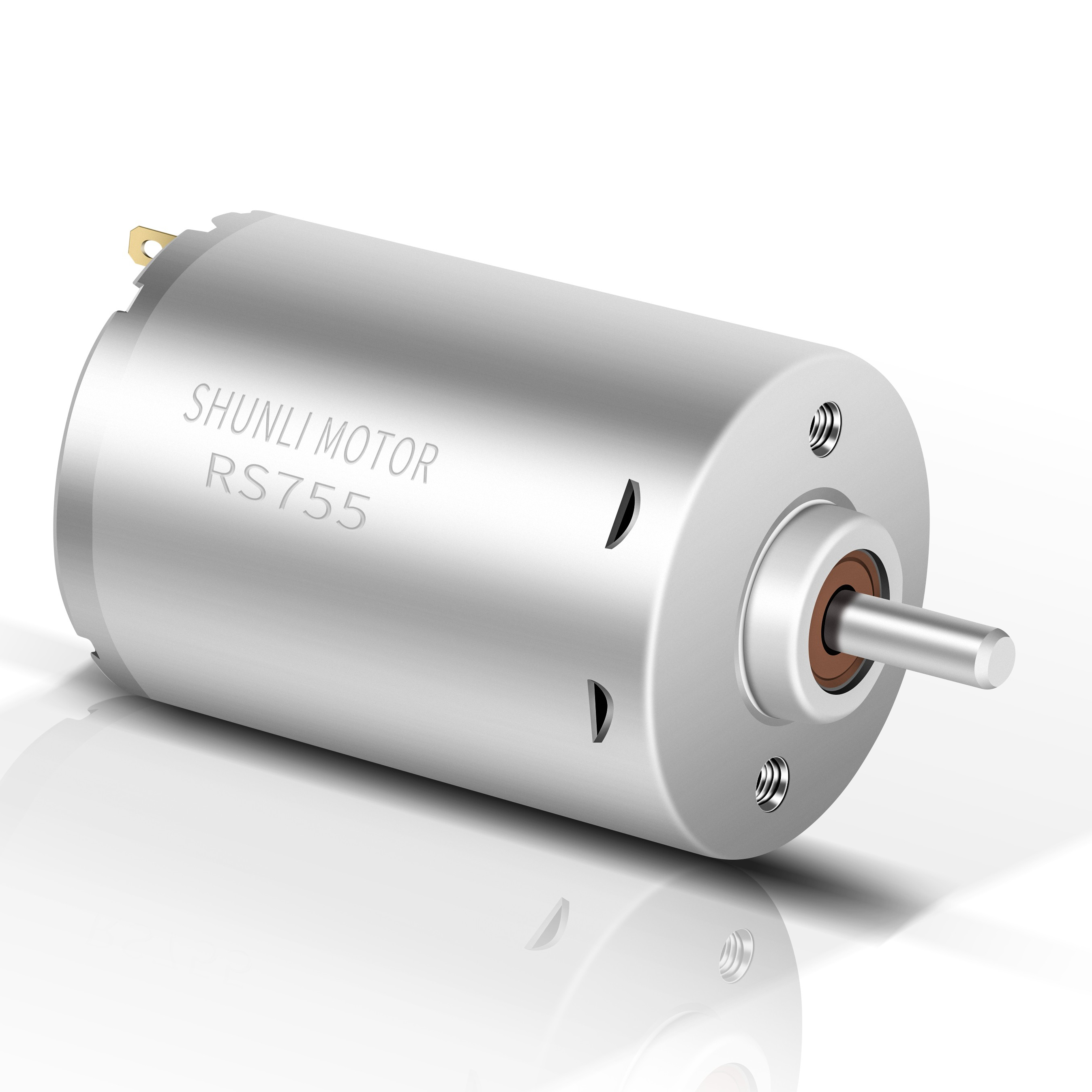

12V 24V 10W-100W DC Motor - High Speed 15000 RPM
This high-performance PMDC motor is engineered for Air Pumps, RC Models, and Cordless Power Tools, providing exceptional speed and reliability.
Note: Motor specifications and shaft lengths can be fully customized upon request.

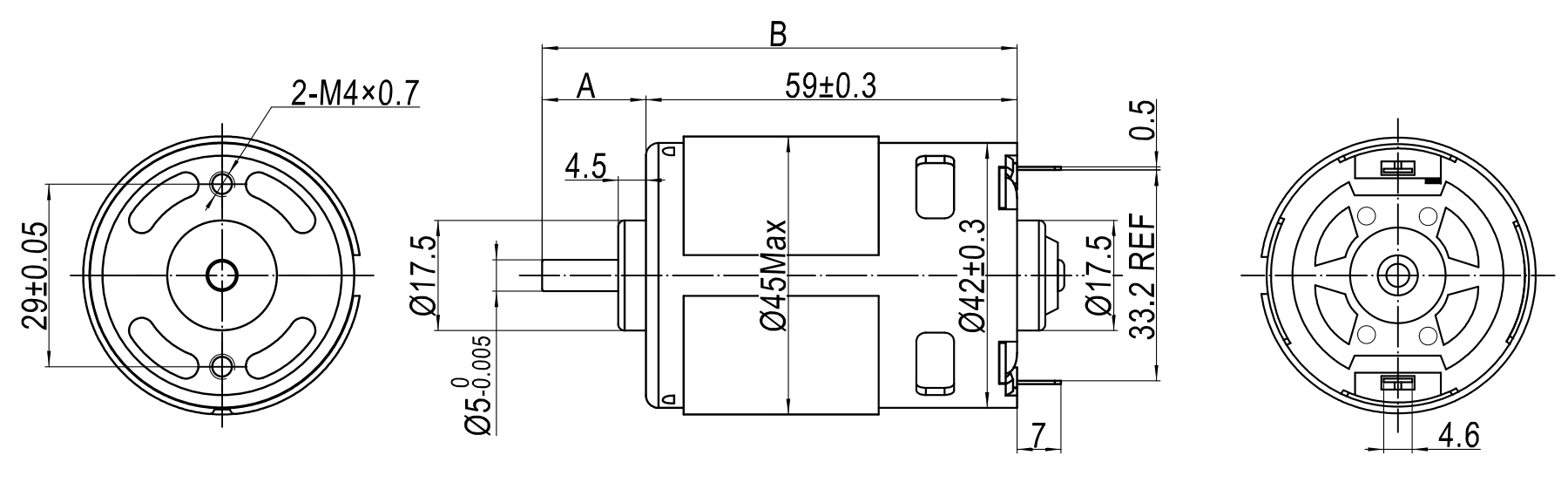

RS-755 H Series
RS-775 H Series
| Model | Voltage (V) | No-Load | Rated | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | |
| RS-770H | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 | 111.8 | 115 | 666.9 |
| RS-775H | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 | 13.35 | 4.07 | 245.7 |
Widely used in high-speed air pumps, remote control models, cordless power tools, and various industrial automation equipment requiring high torque and RPM.
We specialize in micro DC motor production for over 14 years. With multiple factory locations and a professional R&D team, we ensure mature management and technical excellence.
From material reception to final shipment, every step is checked. Quality is the basis of our development, utilizing advanced testing equipment for noise, life cycle, and performance.
