Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

1

Product Description

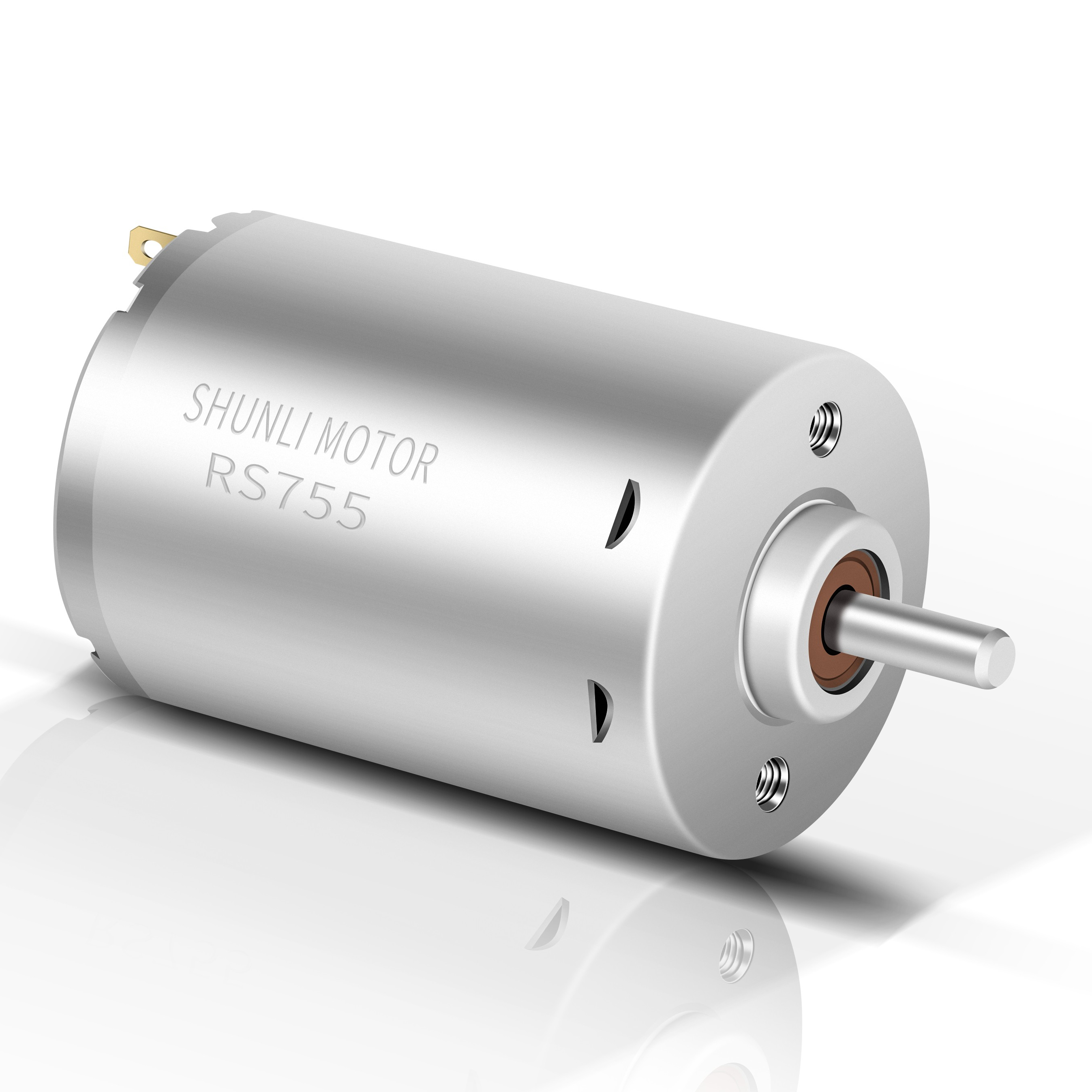

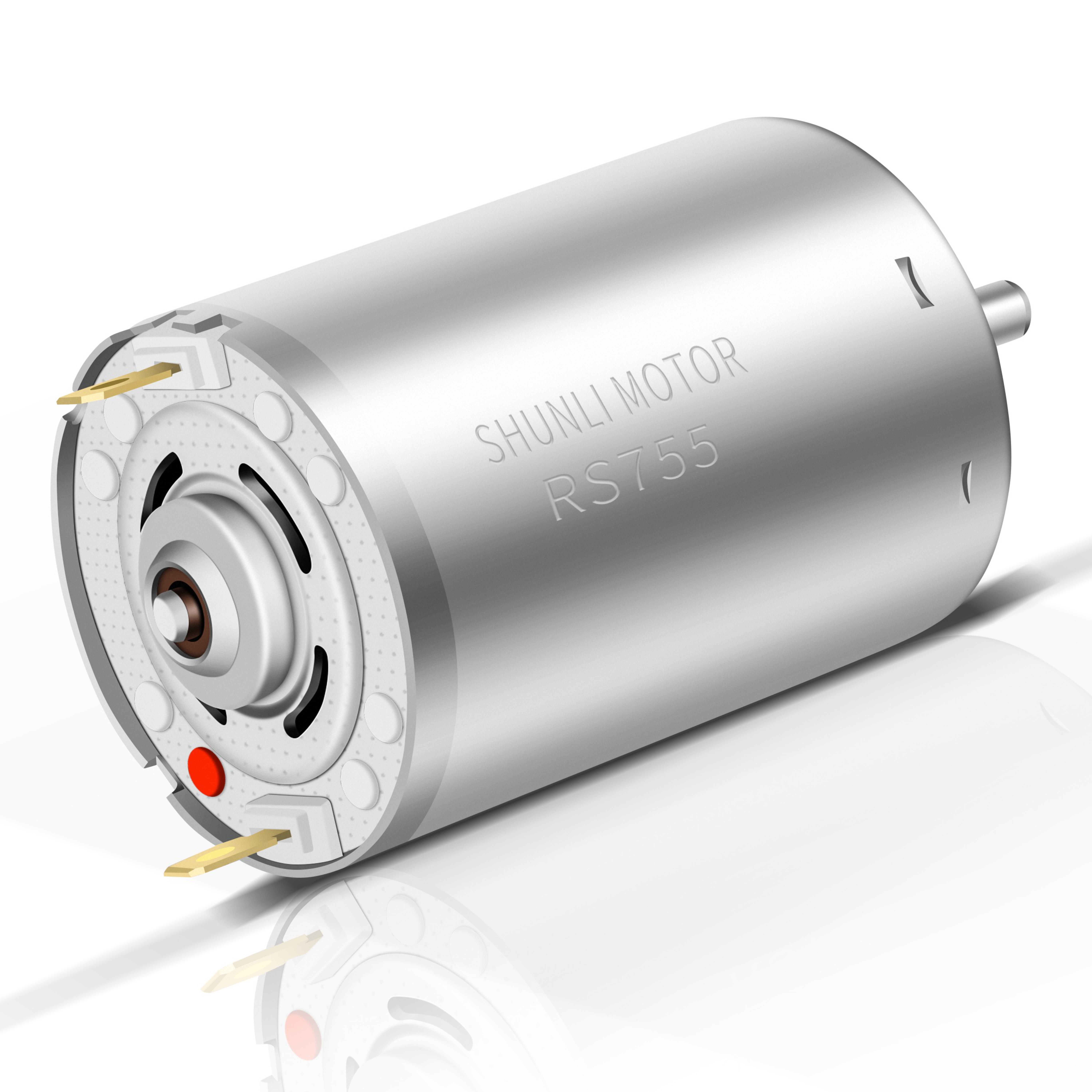

Powerful 20000rpm RS 775 Mini High Speed 24 Volt DC Motor

Product Details

Motor Customized Specification available upon request.

2

Reference Drawing

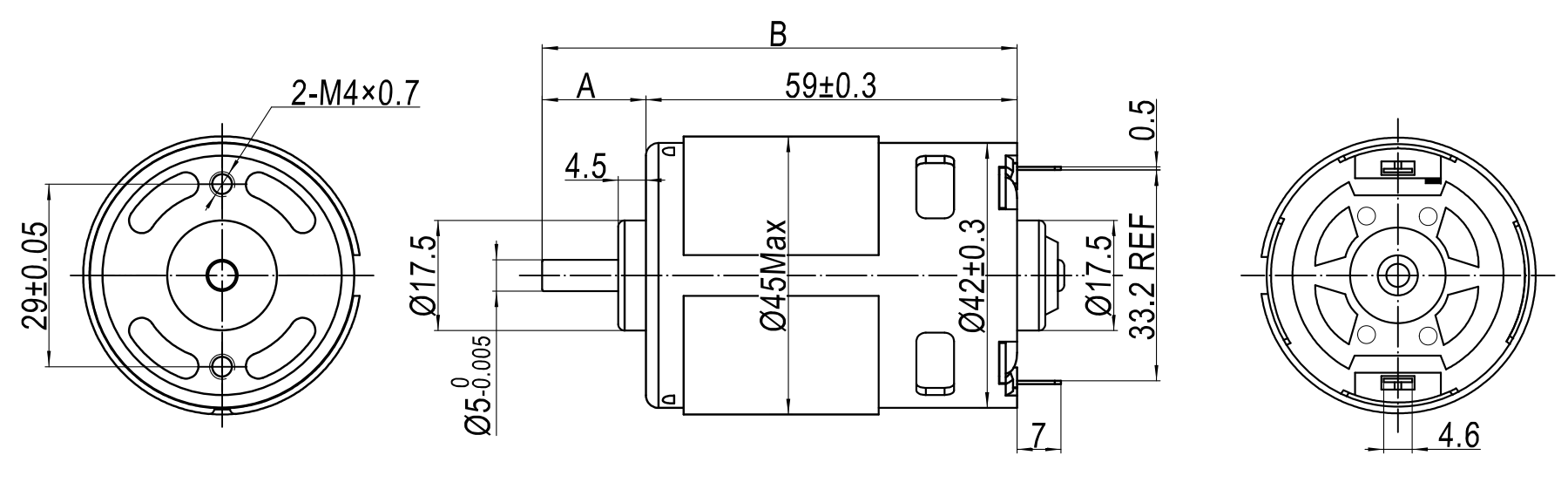

RS-755 H

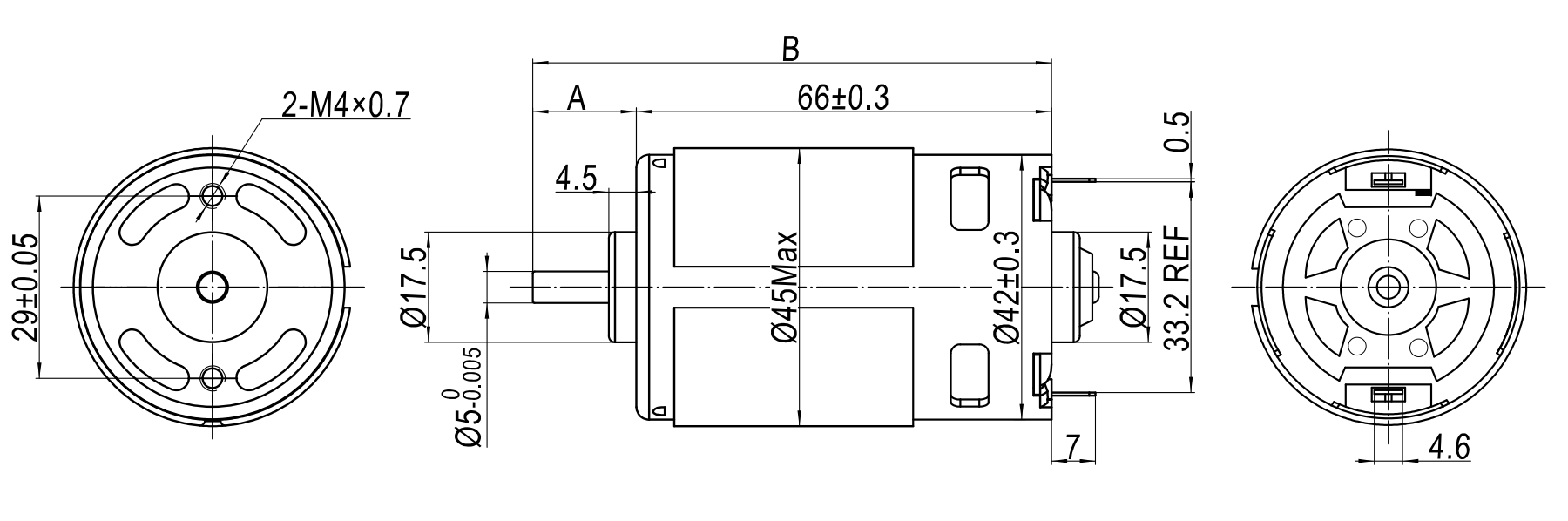

RS-775 H

The length of shaft can be customized.

3

Technical Data

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81/826.2	111.8	115	666.9/6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4/452.9	13.35	4.07	245.7/2506

4

Application & Certifications

5

Recommend Product

?

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.

Q2: What are the payment terms for new customers?

A: We support various payment methods including Online Assurance Orders, Credit Cards (Visa/MasterCard), PayPal, and TT.

Q3: Can you customize a motor if I can't find a suitable one on the website?

A: Yes, we can customize a motor according to your specific requirements, including voltage, speed, and shaft length.

Q4: Do you have certificates for your motors?

A: Yes, we hold CE, FCC, ISO, and other relevant certificates. We can apply for additional certifications if required.

Q5: How do you ensure quality control?

A: We have professional inspection staff for every process. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.

Q6: What is the typical lead time for customized orders?

A: Lead times vary based on specification complexity, but we strive to provide efficient production and timely delivery for all custom projects.
