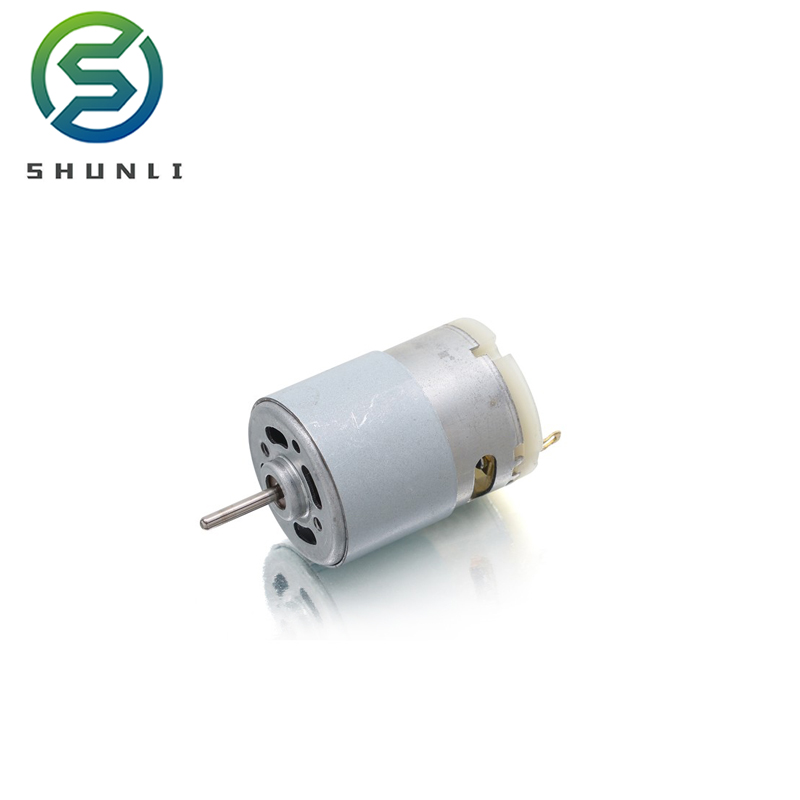

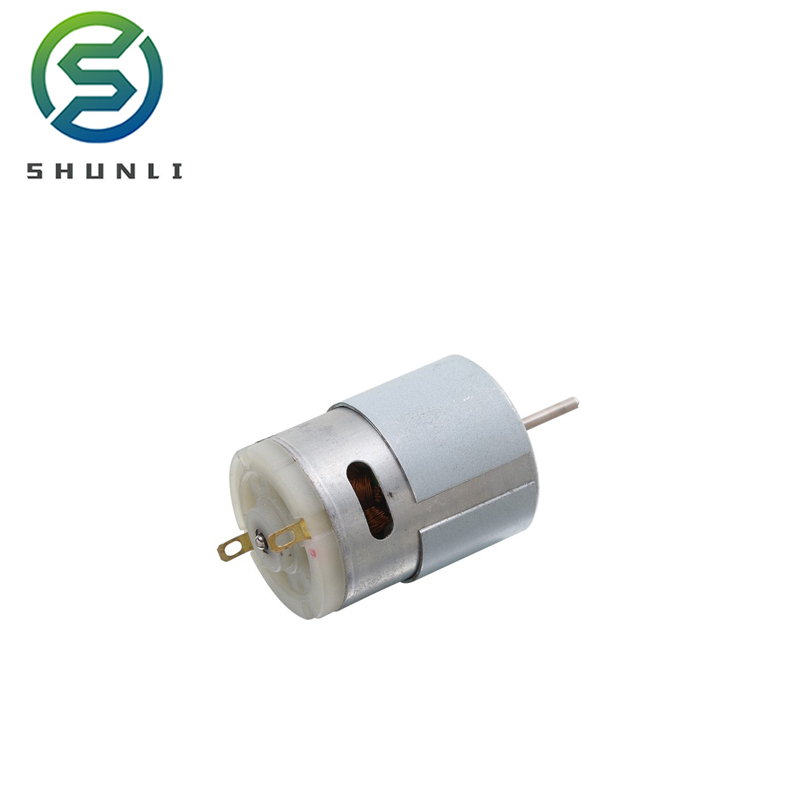

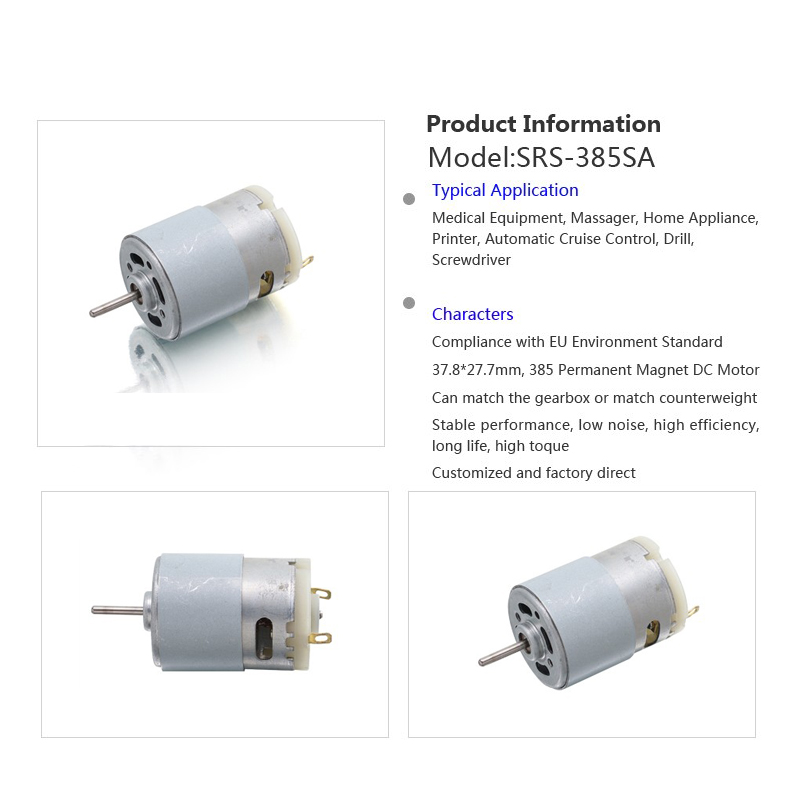

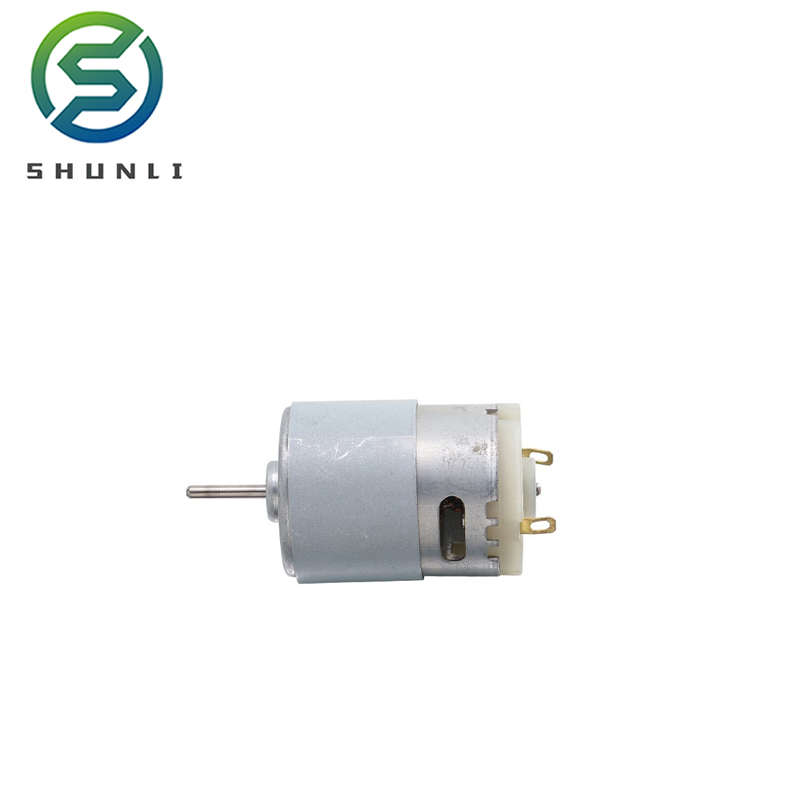

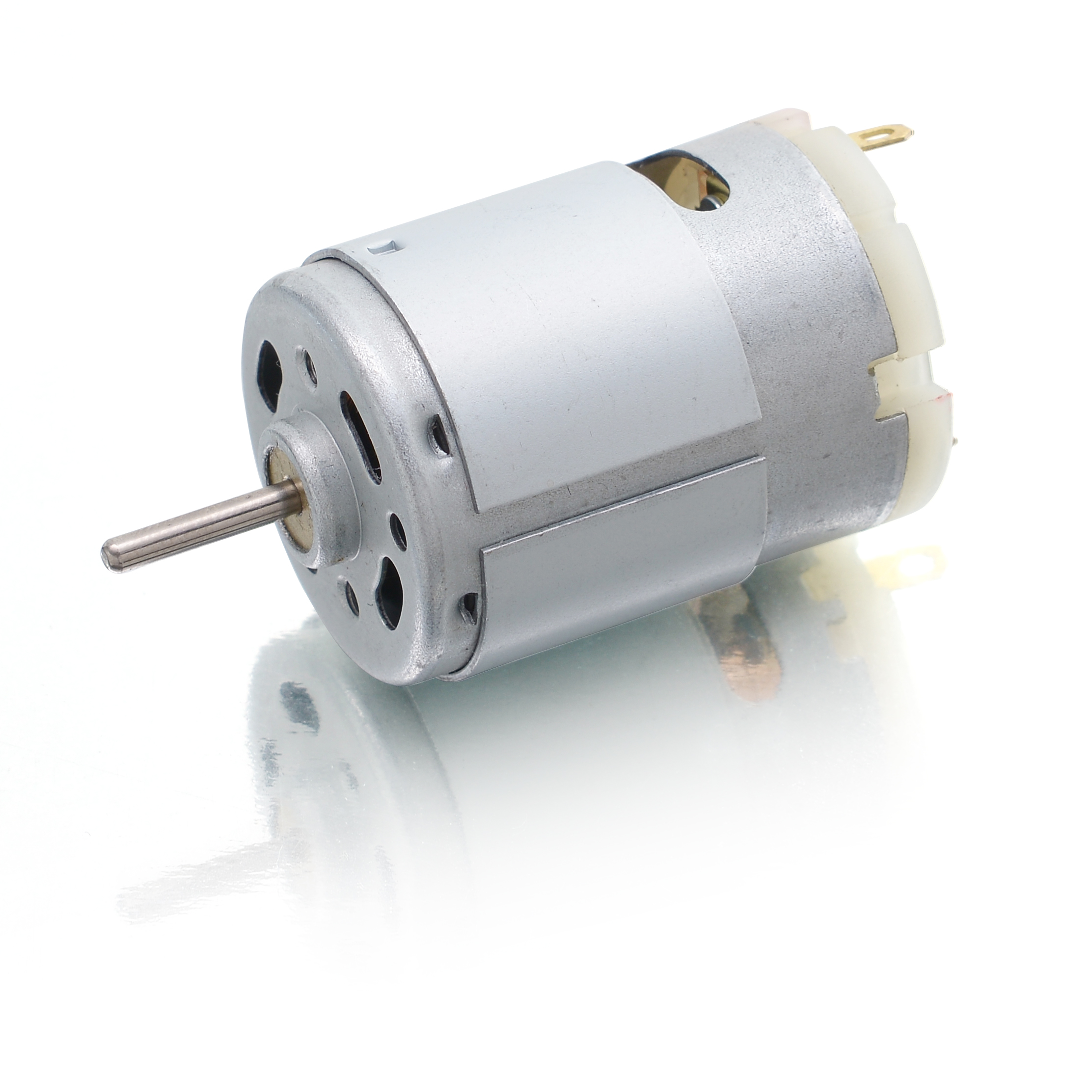

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

1 / 5

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

Send Inquiry

Product Description

🚀 Promotion Details

⚙️ Product Description

The 12V DC motor with 9000 RPM is a high-performance brush micro motor designed for reliability and efficiency. Available in a 6-24V range, it is suitable for various industrial and consumer electronics applications requiring precise motion control.

PMDC MOTOR Technical Data
Model	Rated Voltage (V)		No-Load		Rated				Stall
	Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Range	Nominal	RPM	A	RPM	A	mN.m	W	A	mN.m
RS-380SH-4052	3.0-6.0	4.8V	7800	0.32	6701	1.95	9.9	6.98	11.9	70.6
RS-380SH-3557	6.0-12.0	12V	21200	0.44	18367	2.85	11.26	21.68	18.5	84.3
RS-385SH-17110	6.0-24.0	24V	11000	0.15	9034	0.69	10.7	10.12	3.16	59.8
RS-385SH-2267	6.0-12.0	12V	10000	0.17	8340	0.85	7.5	6.53	4.29	45

📱 Wide Applications

✔ Automobiles & Automotive Systems

✔ Smart Home & Medical Equipment

✔ Intelligent Security Devices

✔ Household & Kitchen Appliances

🏭 Production & Capacity

Established in 2005, we are a high-tech enterprise integrating research, development, production, and sales of micro DC motors. Our products are exported to over 50 countries and regions, serving high-end transmission structure needs globally.

🏆 Quality Certifications

❓ Frequently Asked Questions

1. Are you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.

2. Can you customize a motor if I can't find a suitable one on the website?

Yes, we can customize technical specifications such as voltage, speed, and torque according to your specific requirements.

3. What is the typical operating voltage range for these motors?

Most of our micro motors operate within a flexible range of 6V to 24V DC, depending on the specific model and application needs.

4. Do you have international certifications for your products?

Yes, our products carry CE, FCC, and ISO certifications. We can also apply for other certificates if required by your region.

5. How do you ensure product quality?

We maintain strict quality control using advanced testing equipment, including 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers at every production stage.

6. What payment methods are available for new customers?

We accept online payments via major credit cards (MasterCard, Visa), PayPal, and TT (Telegraphic Transfer) for convenience and security.
