Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door
Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door
Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door
Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door
Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door
1 / 5
Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door
Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door
Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door
Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door
Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door

Shunli OEM Customized 24v Dc Electric Motor Worm Geared Motor 3.5~6.5kgf.cm High Torque Shaft 12v Motor Rotating Table Door

Send Inquiry

Product Description

Micro DC Motor Product Display
S

Product Specifications

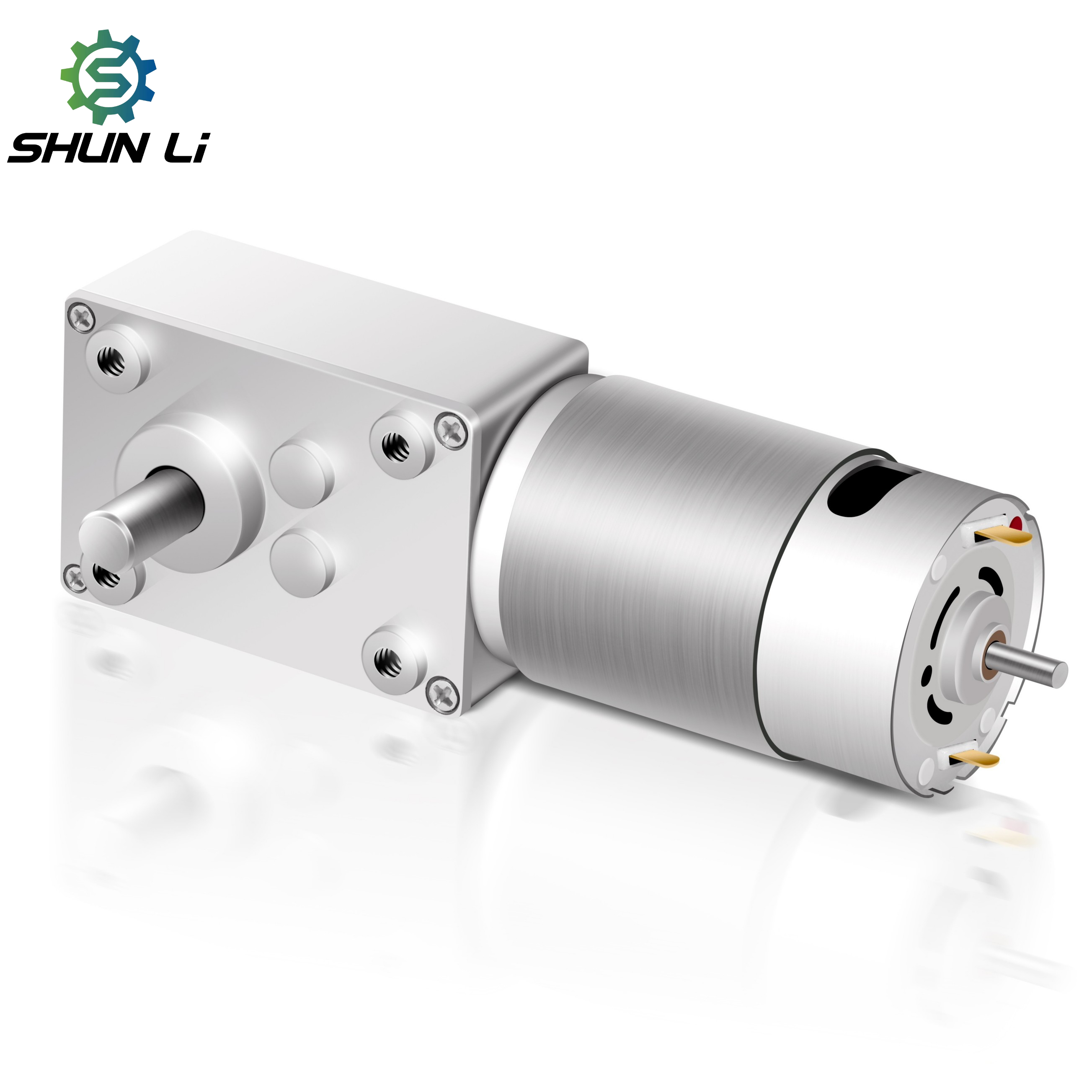

DC Motor Specs
Product ModelGM58EM545/555/575
Gearbox Length58±0.5MM
Speed92RPM~190RPM
Voltage24V
Torque0.65N.m / 0.35N.m
Support CustomizationTransmission Dimensions and Motor Parameters
D

Technical Dimensions & Drawings

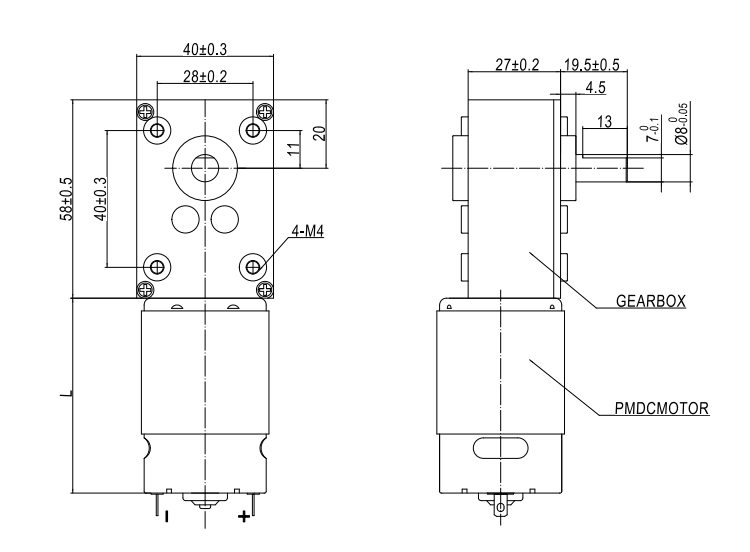

Motor Dimension Drawing 1

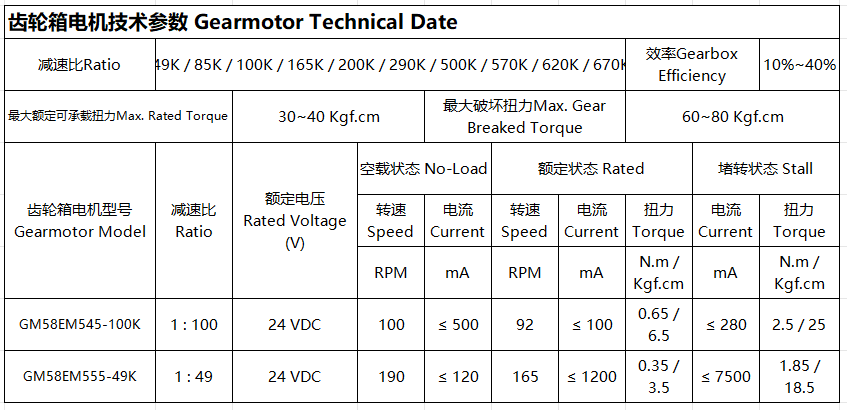

Motor Dimension Drawing 2
P

Product Gallery

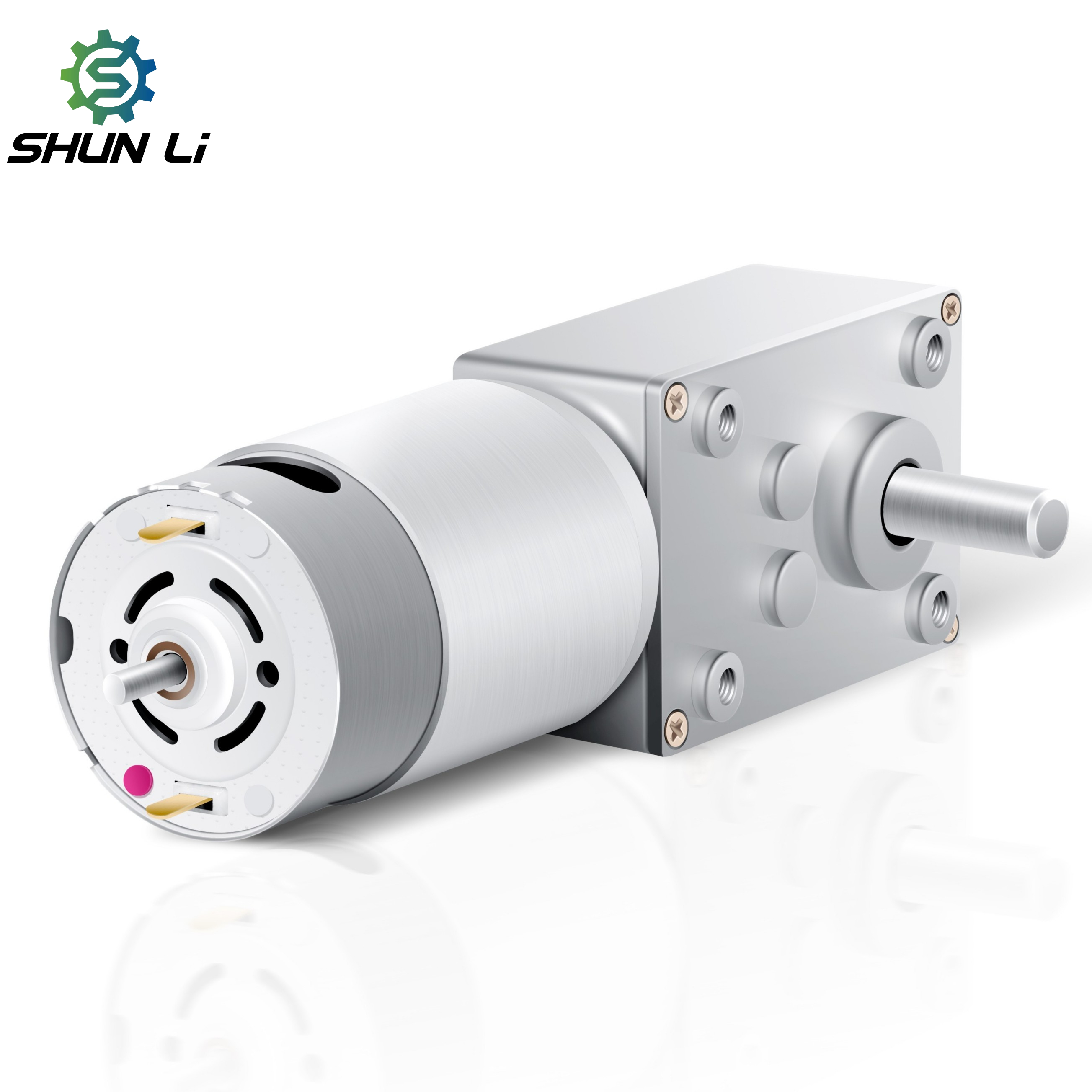

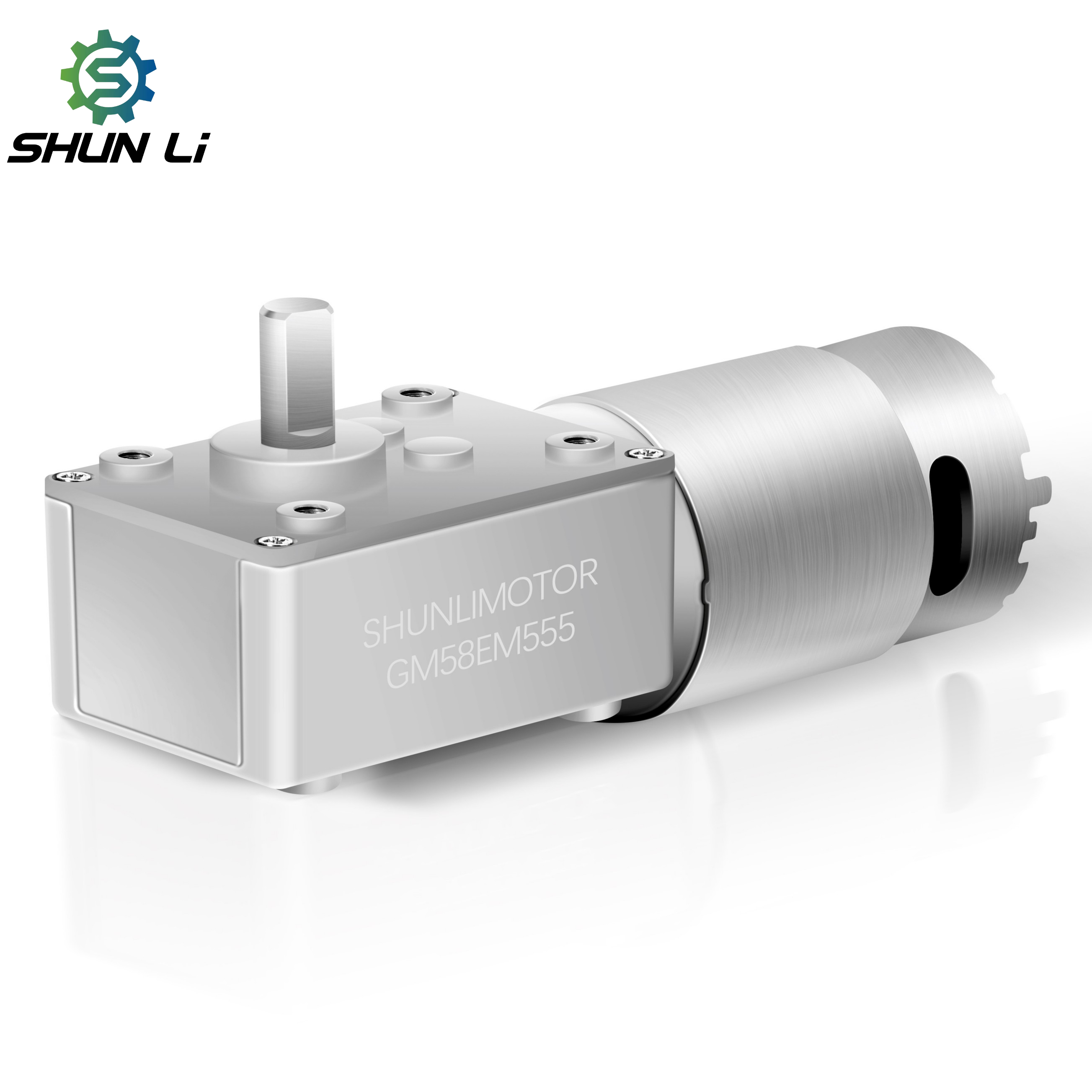

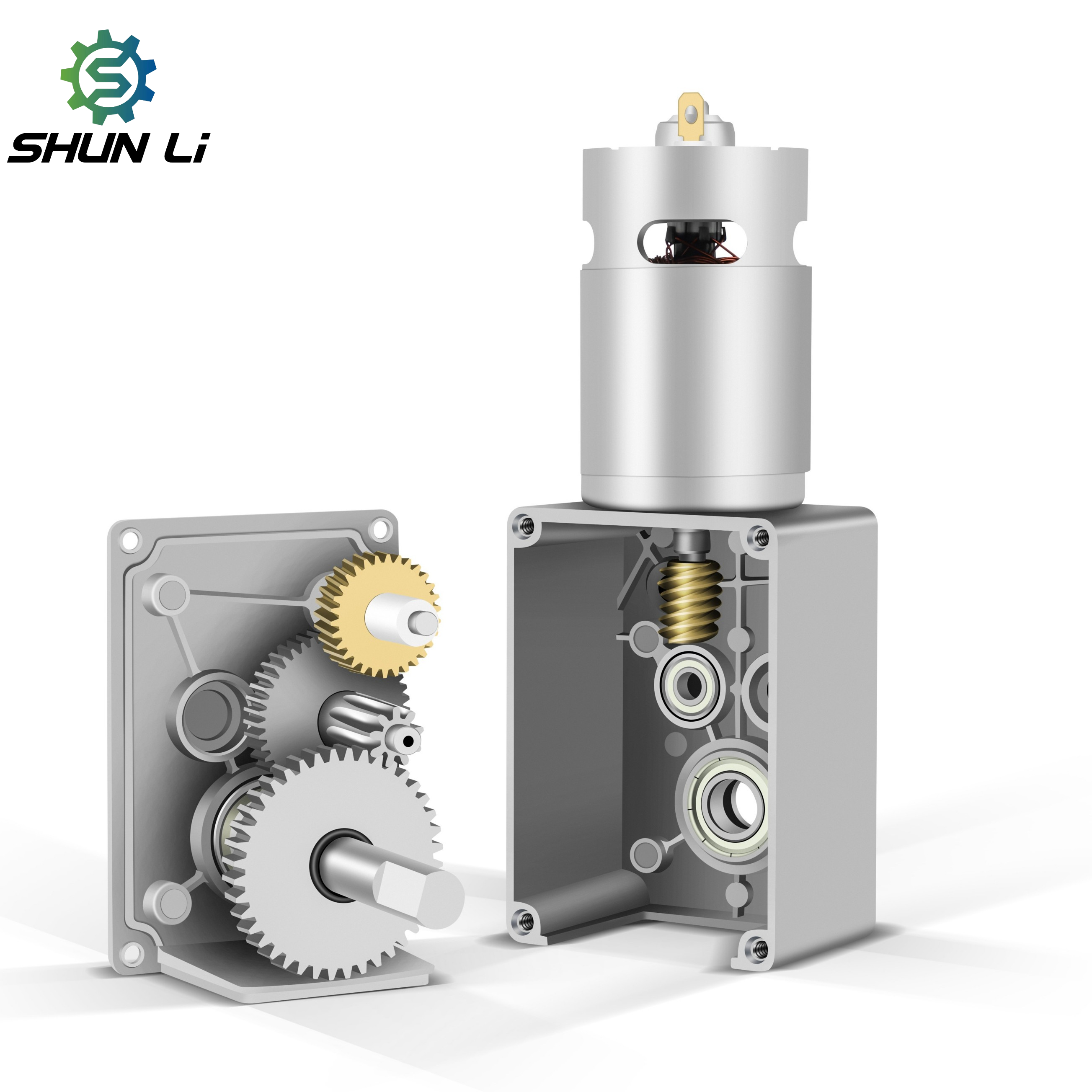

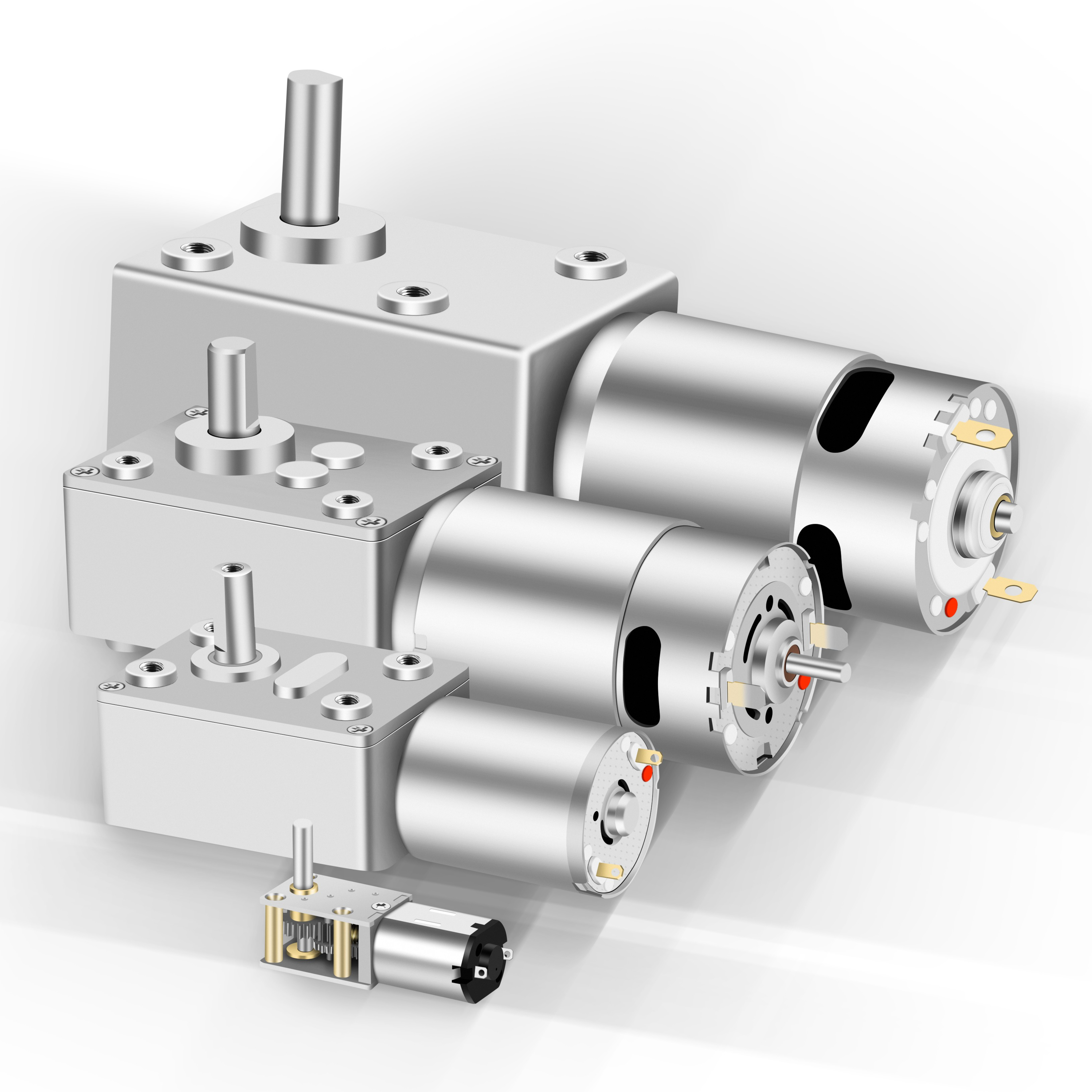

Motor Detail 1
Motor Detail 2
Motor Detail 3
Motor Detail 4
Motor Detail 5
Motor Detail 6
F

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for new customers?
We accept online payments via Master Card, Visa, etc. Customers can also pay via PayPal or TT.
Can you customize the motor for me?
Yes, we can customize suitable motor parameters and dimensions according to your specific requirements.
What certificates do you have for the motors?
Our products are certified with CE, FCC, ISO, etc. We can also apply for other certifications if required.
How do you ensure quality control?
We have professional checking staff on every production line. Finished motors are tested using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
Do you provide samples before bulk orders?
Yes, we can provide samples for quality evaluation and technical confirmation before proceeding with mass production.
