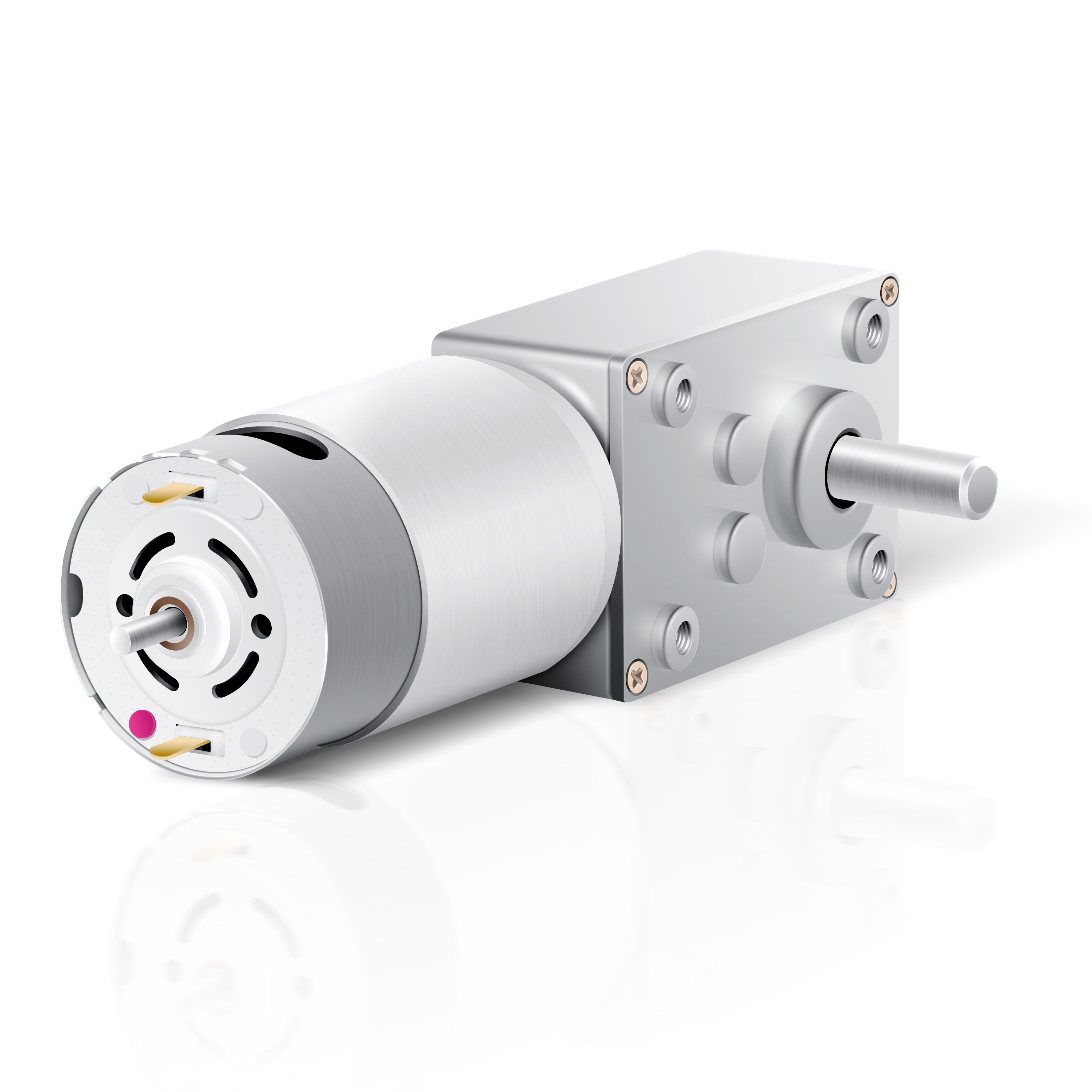

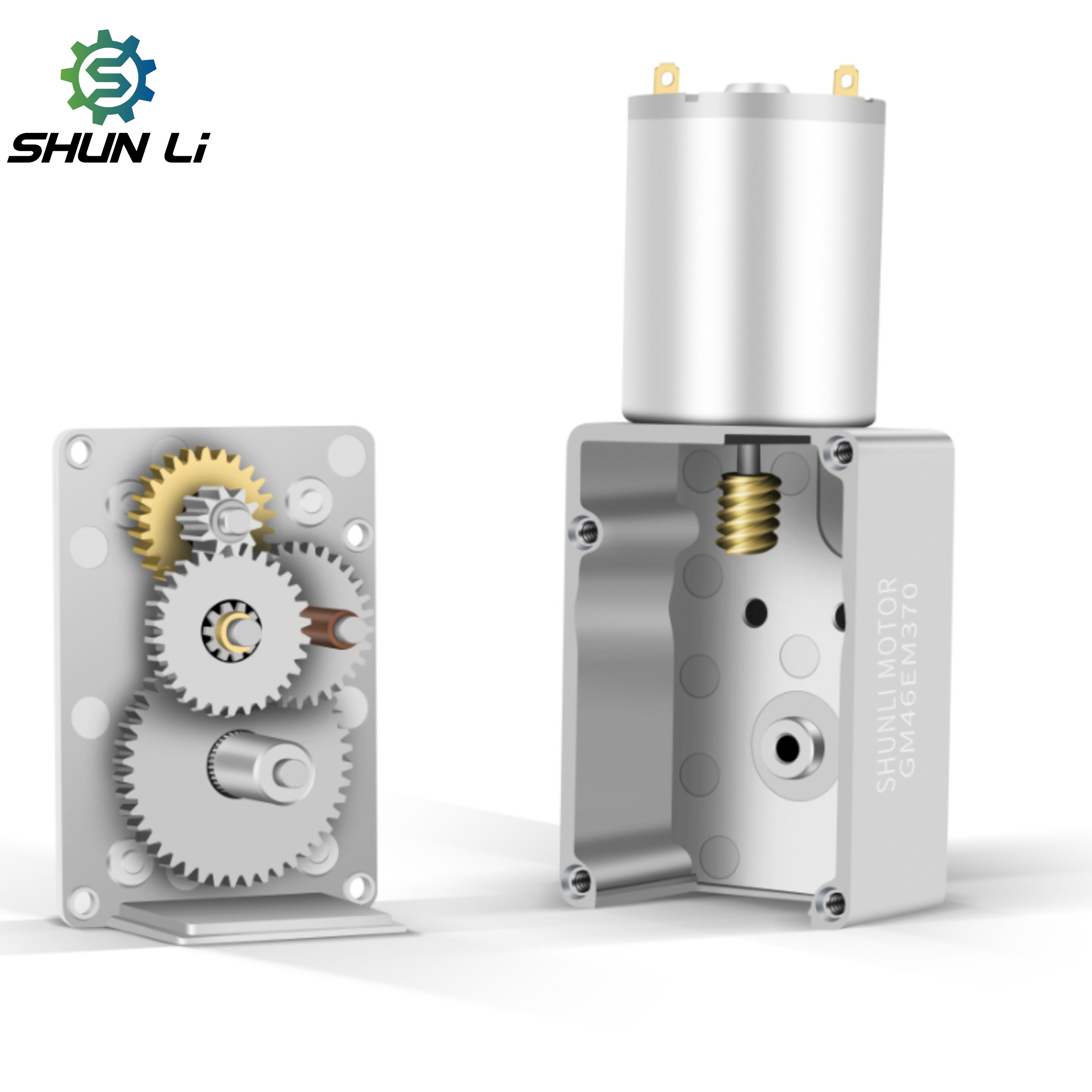

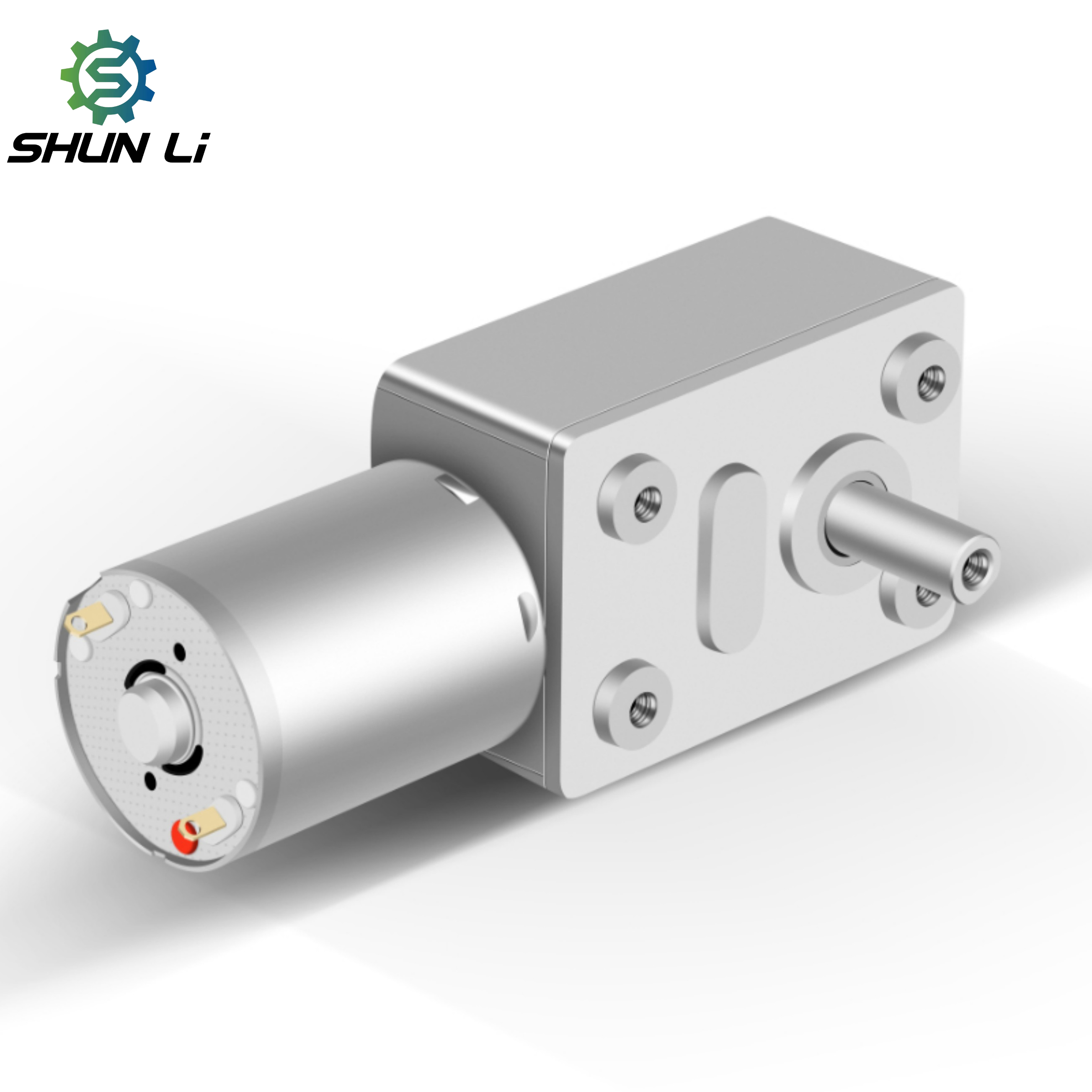

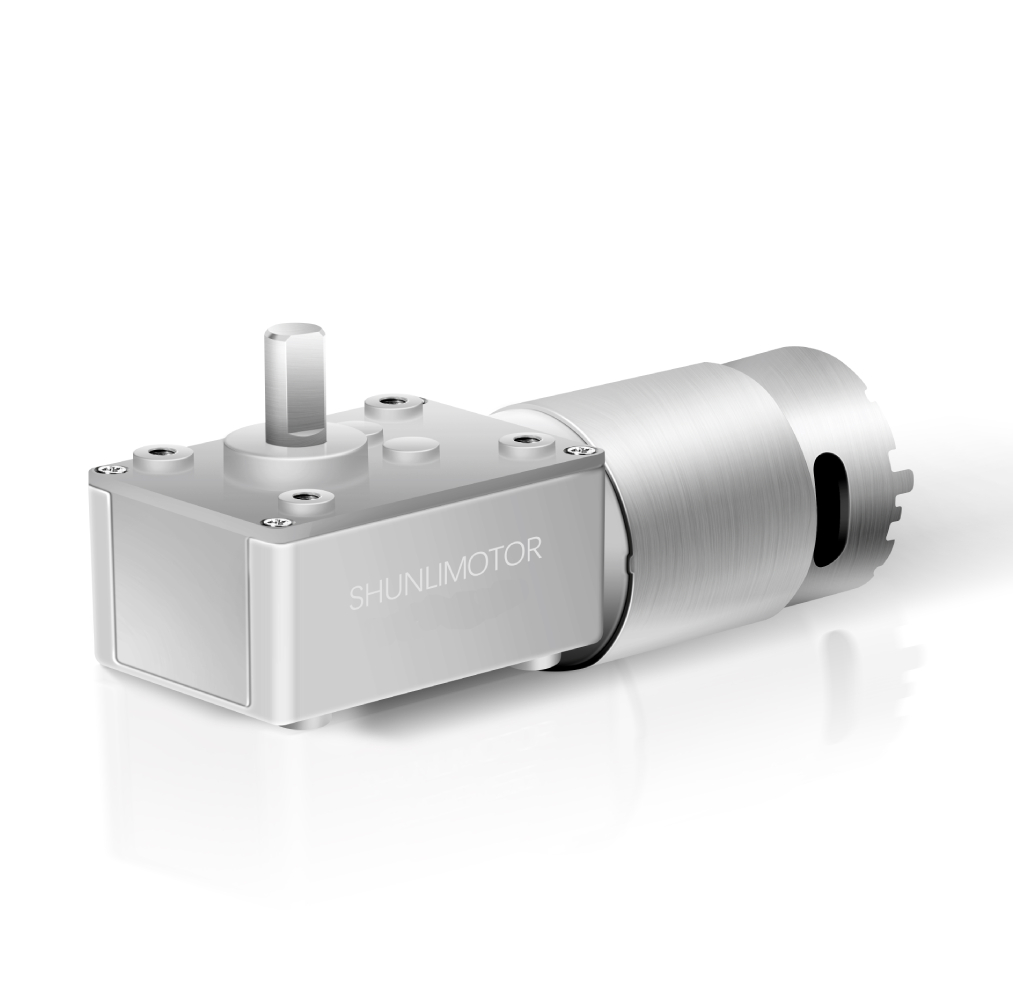

12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
1 / 4
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

Send Inquiry

Product Description

DC Gear Motor Banner
⚙️

Product Specification

Product View
Product Model GM46EM370
Gearbox Length 46±0.5MM
Speed 1.2RPM~190RPM
Voltage 24V
Torque 0.65N.m/0.12N.m
Support Customization Dimensions and motor parameters can be customized
📊

Technical Drawings & Performance

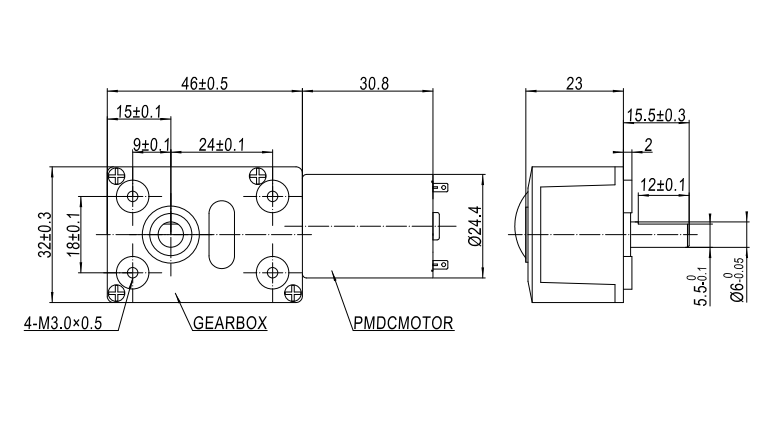

Technical Drawing

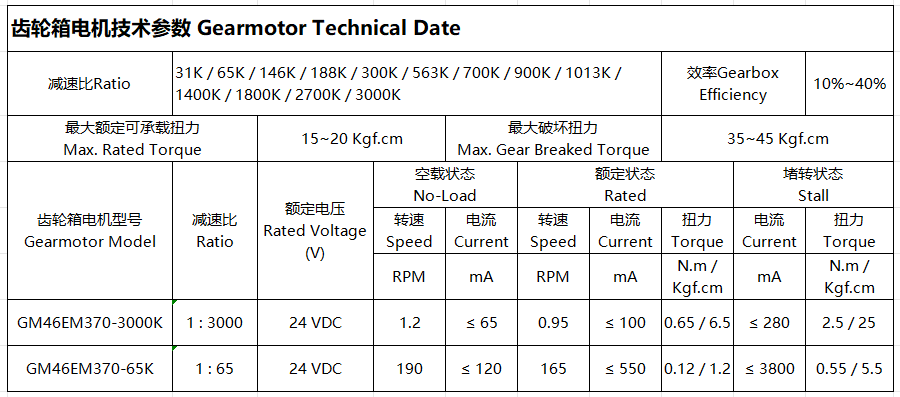

Performance Chart
🏭

Production & Quality Showcase

Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
❓

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for new customers?
We can facilitate online assurance orders which accept Master Card, Visa, and other major credit cards. We also support payments via PayPal and TT.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize motor parameters and gearbox dimensions according to your specific requirements.
Do you hold certifications for your motors?
Yes, we have CE, FCC, and ISO certifications. If you require other specific certificates, we can apply for them based on your needs.
How do you ensure quality control?
We have professional inspectors on every production line. Finished products undergo rigorous testing with advanced equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical lead time for custom orders?
Lead times vary based on customization complexity and quantity, typically ranging from a few weeks to ensure all technical specifications are met and quality is verified.
