Home > DC Gear Motor > Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
1 / 5
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Send Inquiry

Product Description

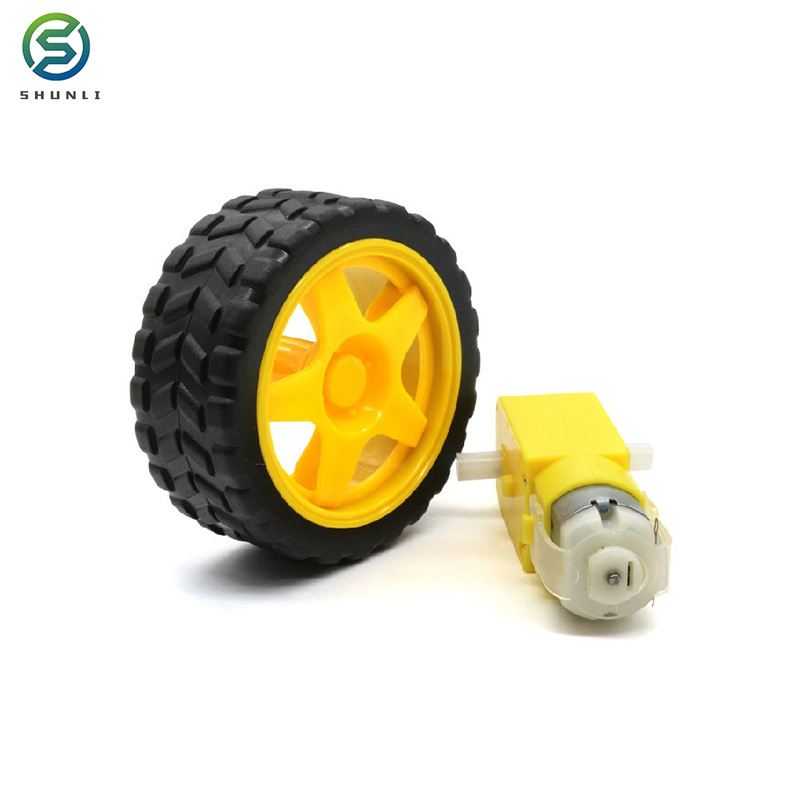

Yellow DC Gear Motor with Plastic Wheels of Toy Car

Promotion
Yellow Dc Gear Motor
Motor Banner
Yellow Dc Gear Motor Details
Product View
Characters
Model Voltage No-load Load Stall
Working Voltage Rated Voltage Speed Current Speed Current Torque Power Output Stall Torque Current
V rpm A rpm A N.m Kg.m W N.m Kg.m A
SGP01S-A130-14150-120 3-12.0V 4.5 100 0.2 87 0.5 0.066 0.675 0.4 0.265 2.7 1.25
SGP01S-A130-18100-220 3-12.0V 3.0 50 0.2 40 0.3 0.120 1.233 0.6 0.393 4.003 2.15
Product Gallery
Dimensions
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Frequently Asked Questions
1. What is the working voltage range for this gear motor?
The yellow DC gear motor operates within a voltage range of 3.0V to 12.0V, making it highly versatile for various toy and DIY projects.
2. Can this motor be used for smart car robots?
Yes, these motors are specifically designed for smart car projects, DIY robots, and electronic toy vehicles due to their compact size and integrated gearbox.
3. What is the difference between the SGP01S series models?
The models differ primarily in rated voltage, no-load speed (ranging from 50 to 100 rpm), and stall torque characteristics as detailed in the specifications table.
4. Does the gearbox provide high torque for climbing?
Yes, the plastic gearbox is engineered to provide sufficient torque (up to 4.003 Kg.m in some models) to handle small obstacles and typical toy car movements.
5. Are the plastic wheels included and easy to install?
The motor is designed to fit standard plastic wheels commonly used in toy car kits, featuring a specific output shaft for easy press-fit installation.
6. What is the no-load current of these motors?
The no-load current is typically around 0.2A, which ensures efficient power consumption during operation.
