Home > DC Gear Motor > 20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor

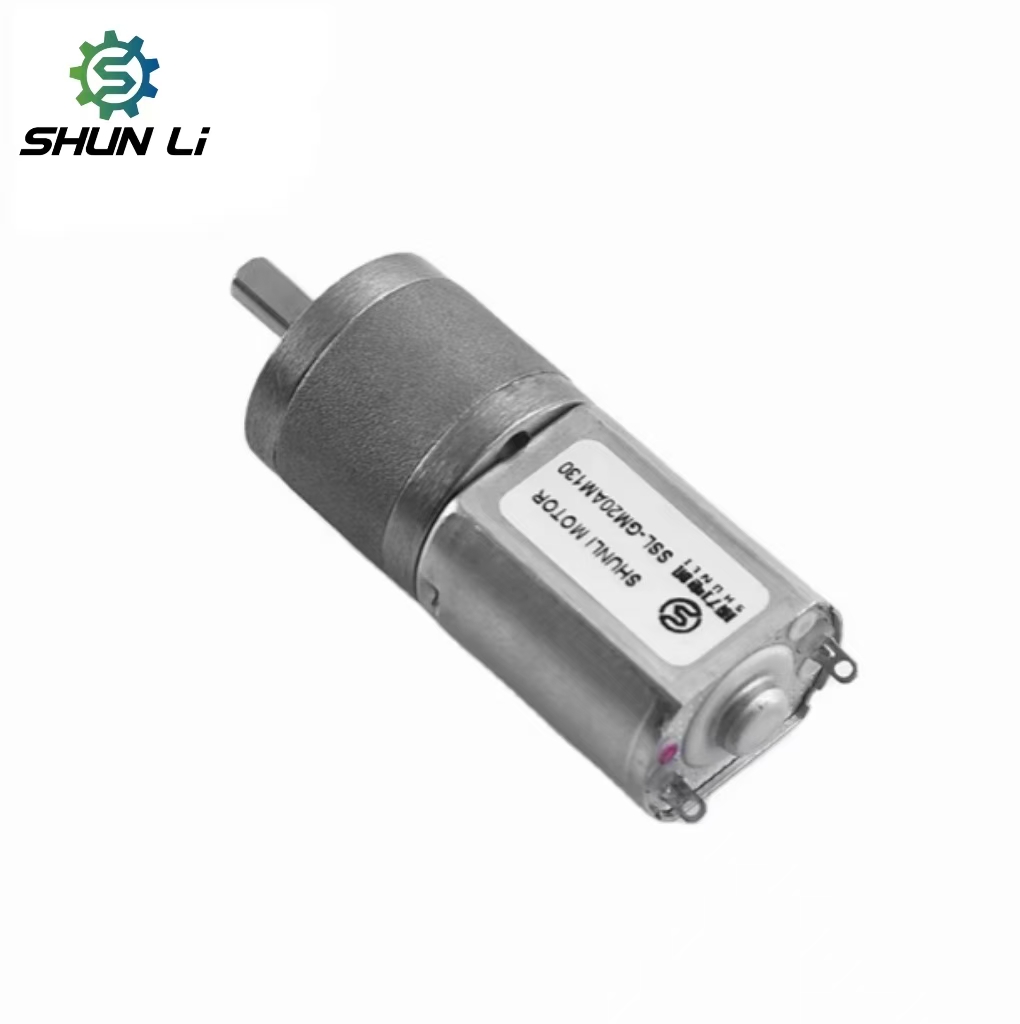

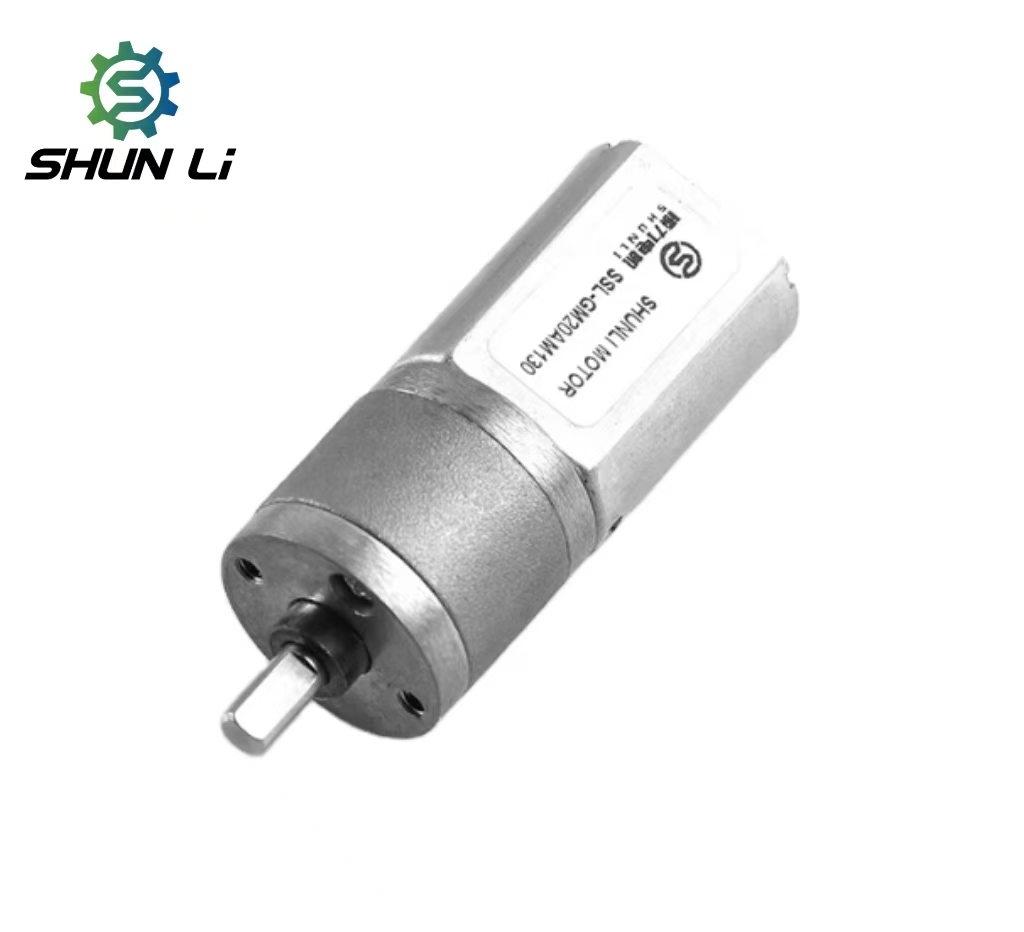

20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
1 / 5
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor

20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor

Send Inquiry

Product Description

Product Presentation

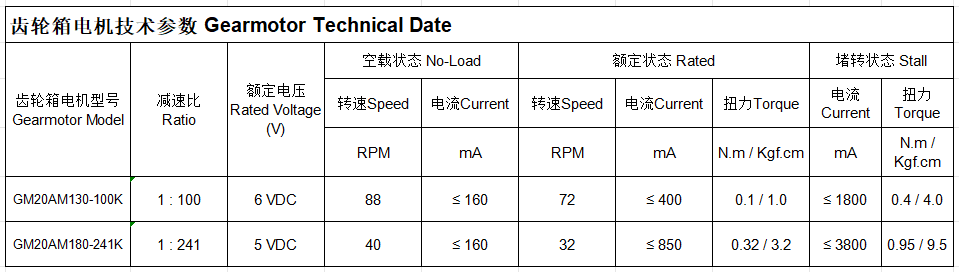

Product Specifications

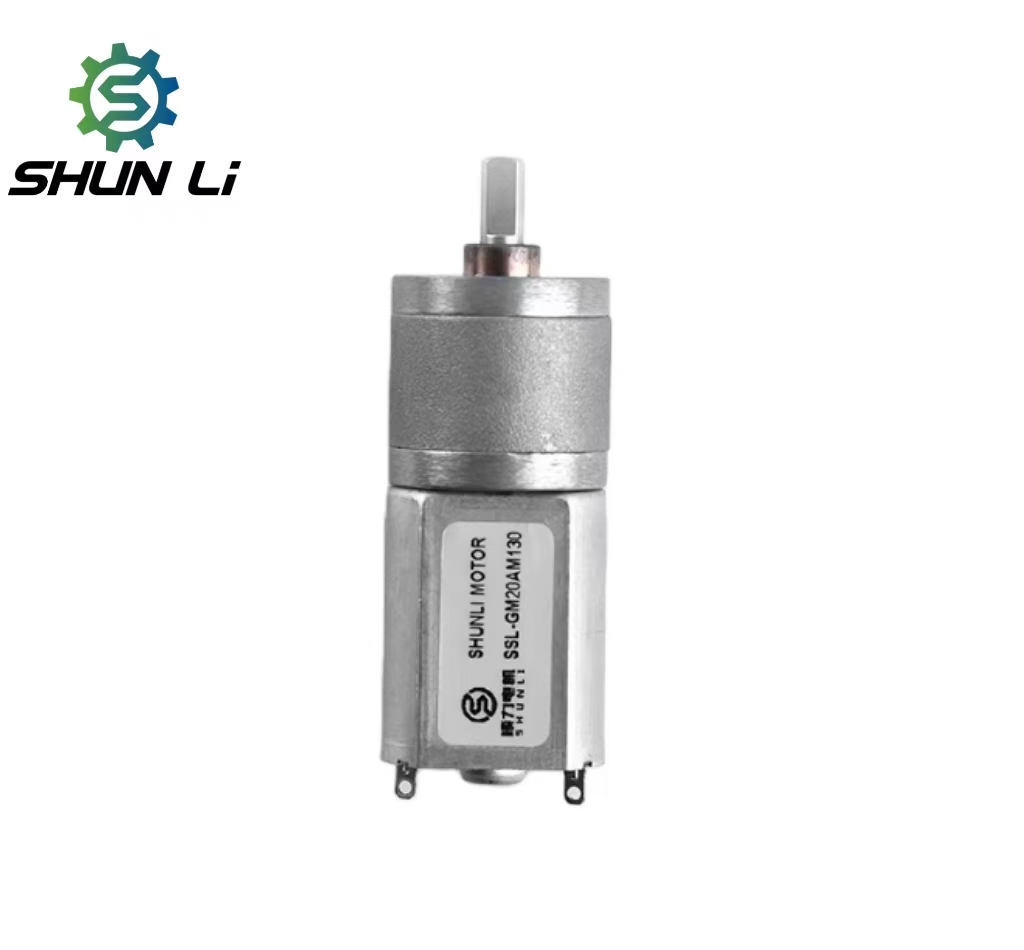

Technical Drawing
Product Model GM20AM130/180
Gearbox Length 14.5~20.5mm
Speed 32RPM-88RPM
Voltage 6V/5V
Torque 0.1N.m/0.32N.m
Customization Transmission Dimensions and Motor Parameters Can Be Customized
Engineering Excellence

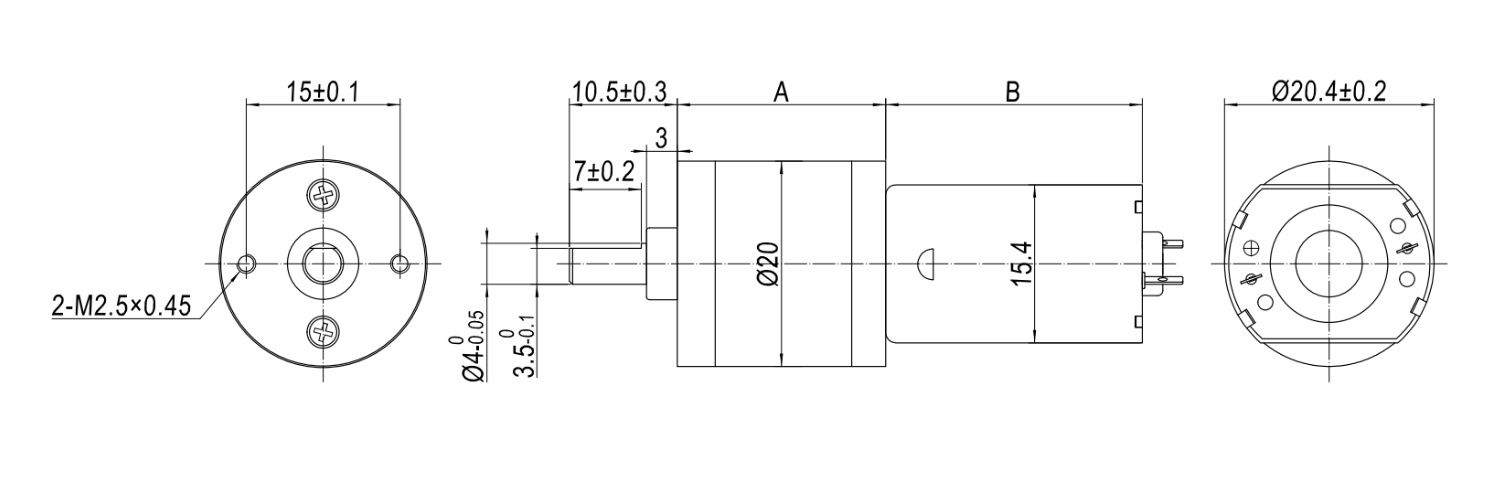

Performance Chart Dimensions
Product Showcase
Motor View 1 Motor View 2 Motor View 3 Motor View 4 Motor View 5 Motor View 6
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors with more than 14 years of industry experience.
2. What are the payment terms for new customers?
New customers can pay online via secure assurance orders (MasterCard, Visa, etc.), PayPal, or T/T wire transfers.
3. Can you customize a motor if I can't find a suitable model?
Yes, we provide full customization services to modify motor parameters and dimensions according to your specific requirements.
4. What certifications do your motors have?
Our motors are certified with CE, FCC, ISO, and other relevant standards. We can also apply for additional certifications if required.
5. How do you ensure product quality?
We employ professional QC staff at every production stage and use advanced testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life/Noise Testers.
