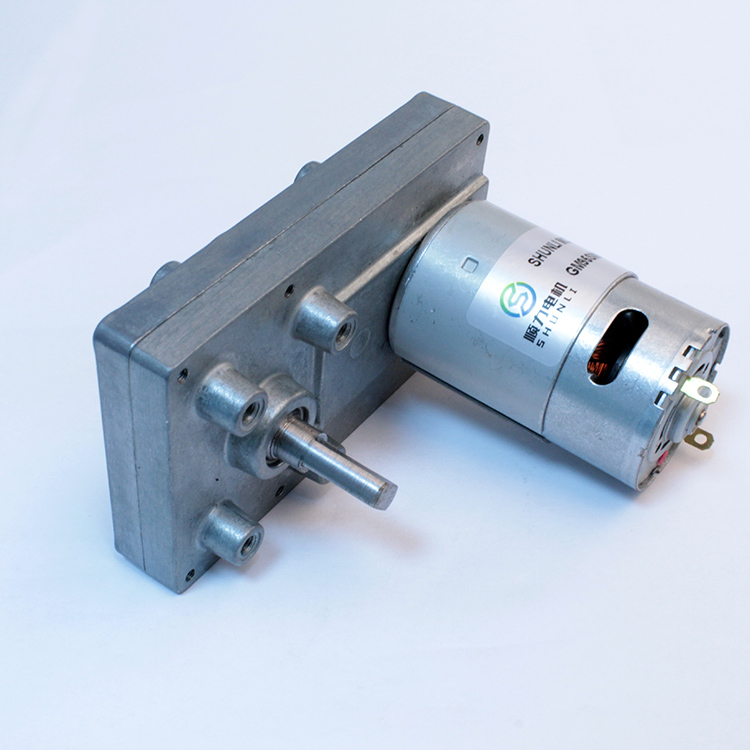

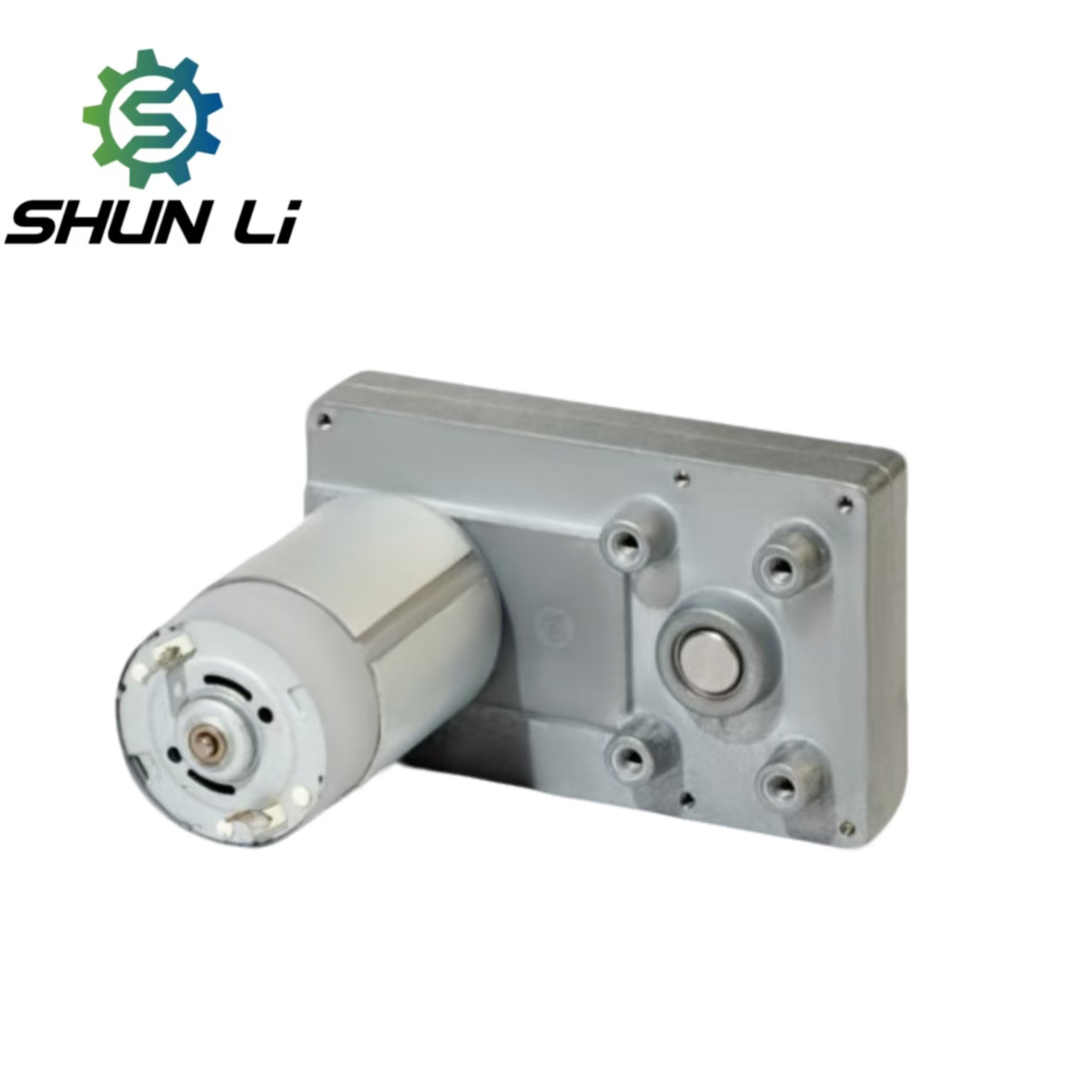

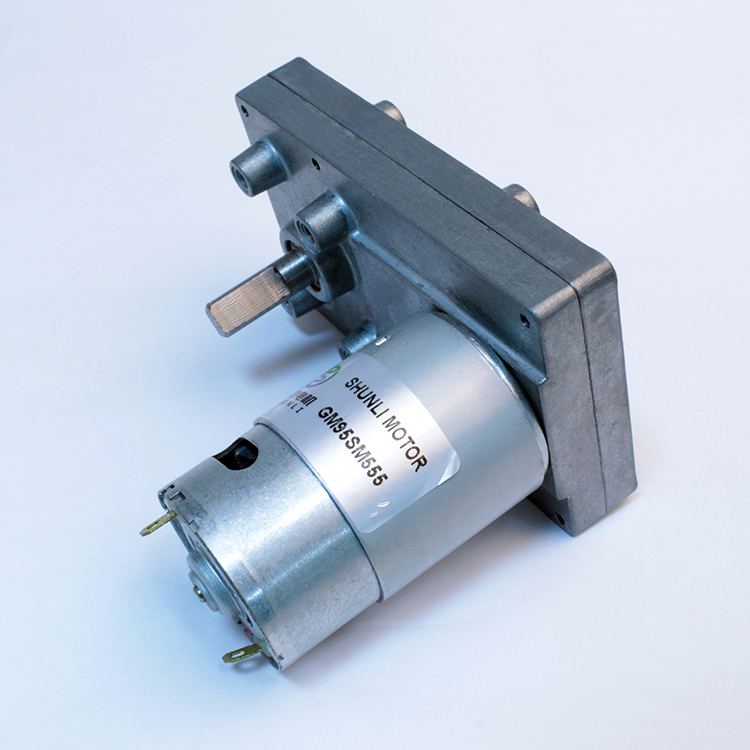

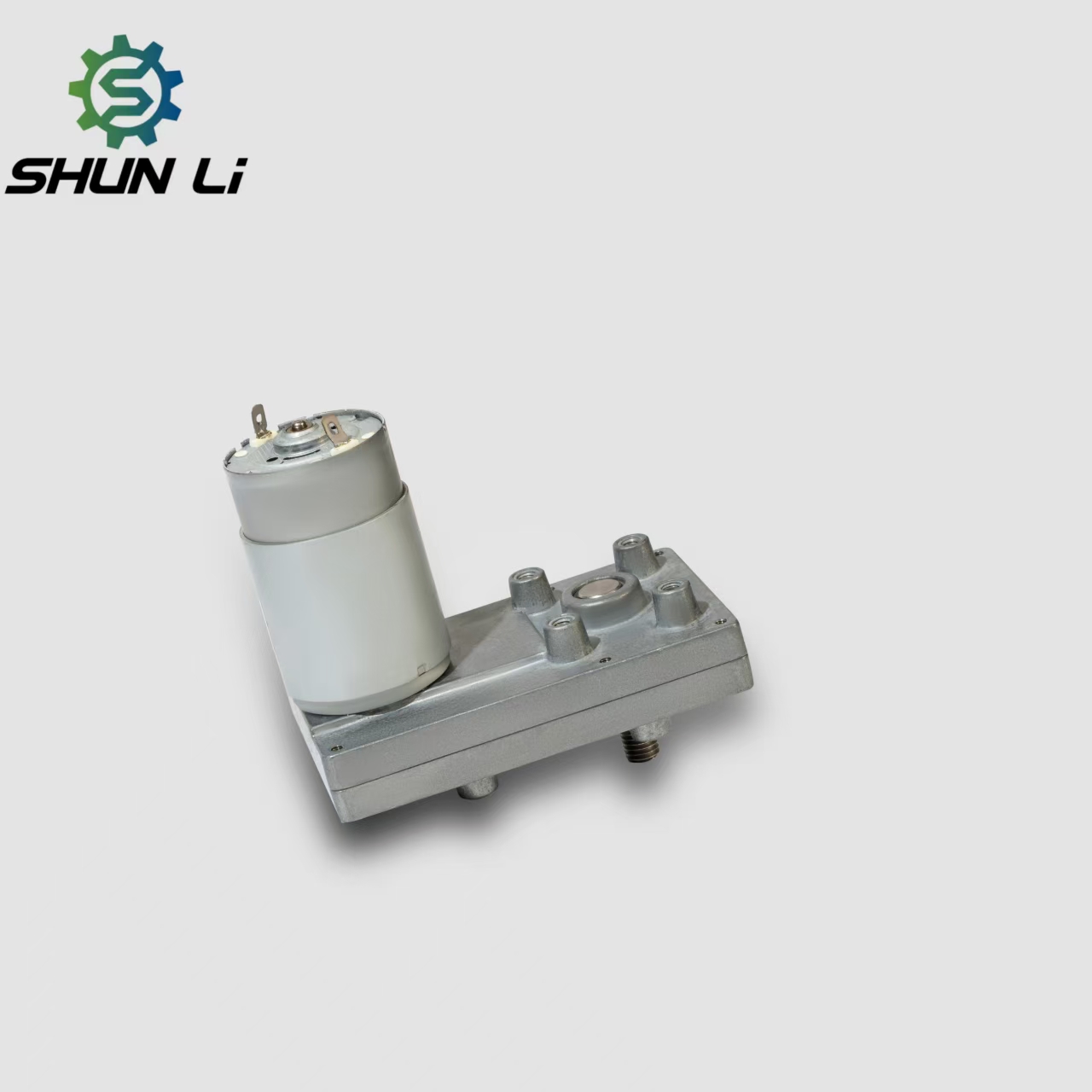

Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
1 / 5
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor
Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor

Square Gearbox 100mm with 555 Dc 12v 24v Encoder Gear Motor Electric Lawn Mower Motor

Send Inquiry

Product Description

Product Presentation
Motor Details
Product Model GM95SM545/555/575
Gearbox Length 95MM
Speed 14.5RPM ~ 65RPM
Voltage 24V / 24V / 12V
Torque 6N.m / 4 N.m / 1.2 N.m
Customization Transmission Dimensions and Motor Parameters Can Be Customized

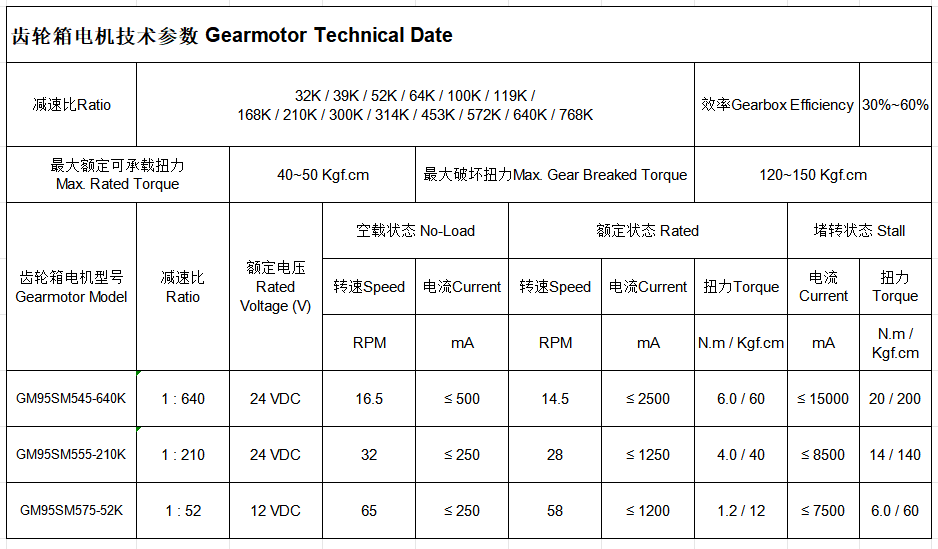

Technical Parameters & Drawings

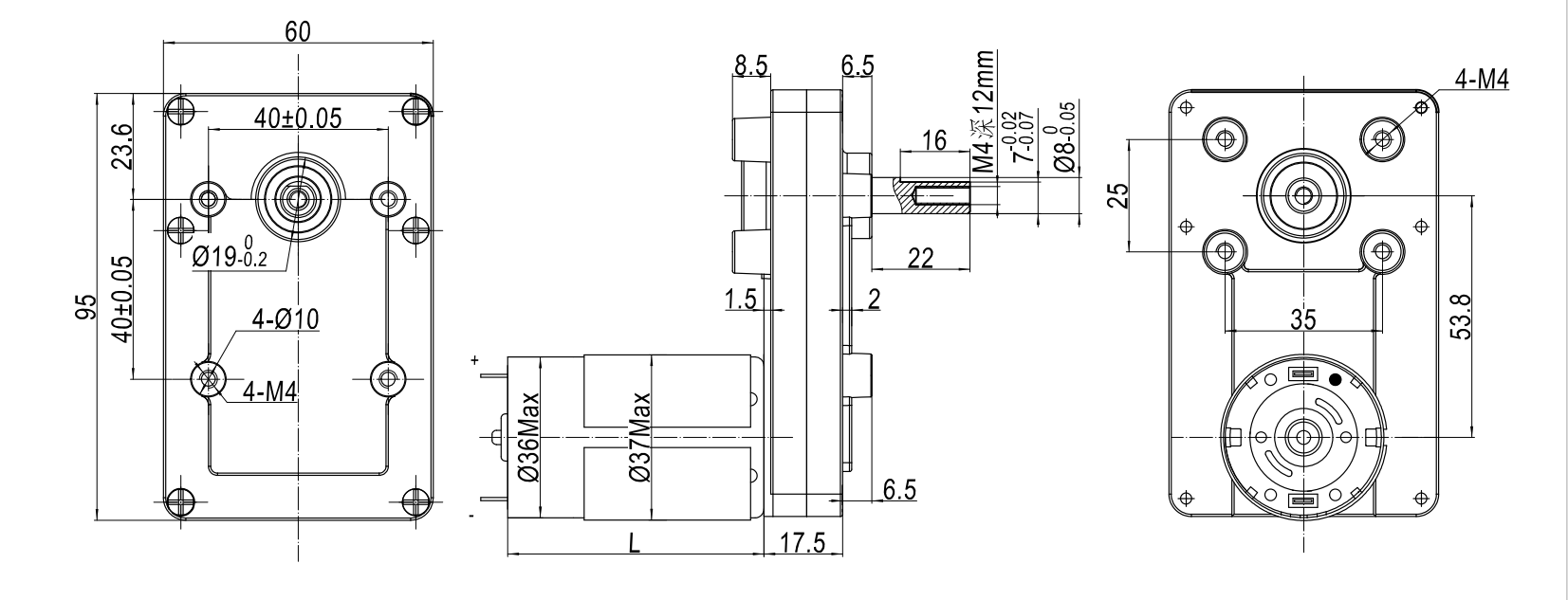

Dimensions Drawing 1 Dimensions Drawing 2
Motor Application 1 Motor Application 2 Motor Application 3 Motor Application 4 Motor Application 5 Motor Application 6
Frequently Asked Questions
1. Q: Are you a trading company or a manufacturer?
A: We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. Q: What is the payment term for a new customer?
A: We can draw up an Assurance Order Online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
3. Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's specific requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
5. Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we use quality machinery to test the motor, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
6. Q: What information is needed for a customization request?
A: Please provide required voltage, speed, torque, and gearbox dimensions to help our engineers design the best solution for you.
