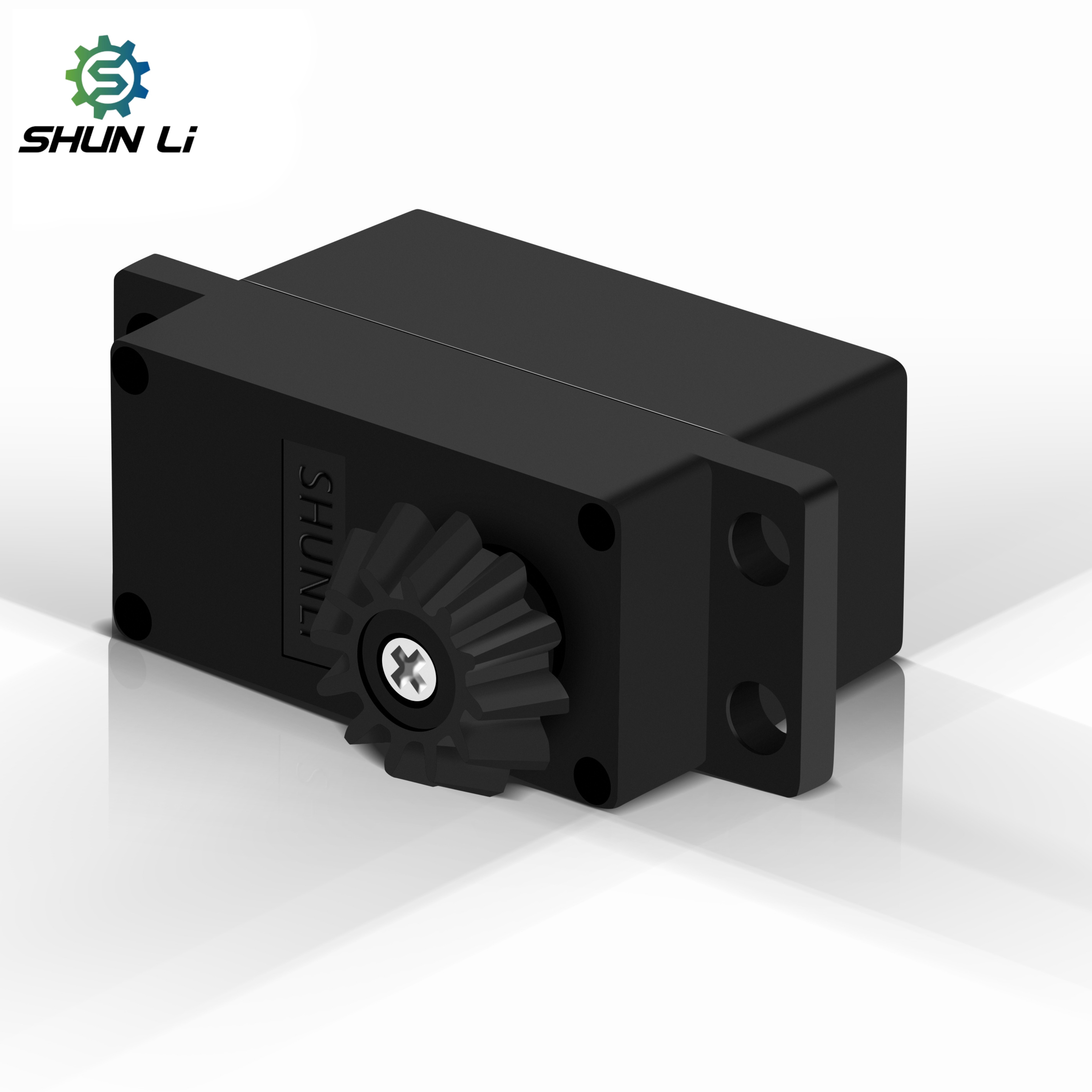

Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
1 / 4
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock
Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock

Small Battery Powered 2.5v 3v 6v 12v 240 Rpm Micro Geared Dc Electrical Gear Motor for Lock

Send Inquiry

Product Description

Product Banner

Technical Specifications

Product Specification
Product Model GM2222FD-0001
Ratio 241K
Speed 42RPM-70RPM
Voltage 4.5V
Rated Torque 25 mN.m/30 mN.m
Support Customization The Transmission Dimensions And Motor Parameters Can Be Customized
✓
Professional Customization Services

We provide tailored solutions for transmission dimensions and motor parameters to meet your specific application requirements.

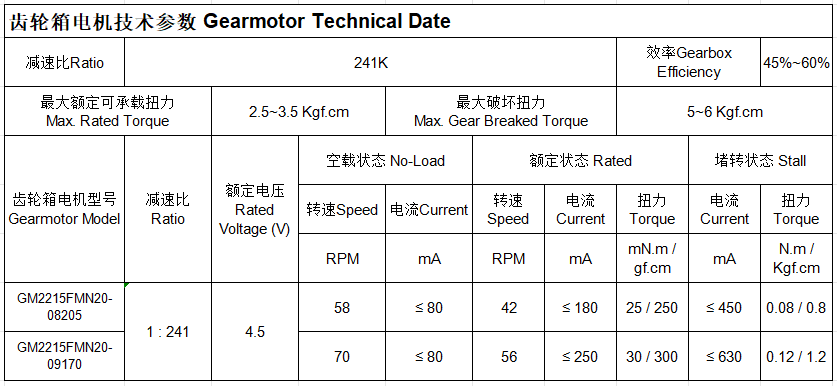

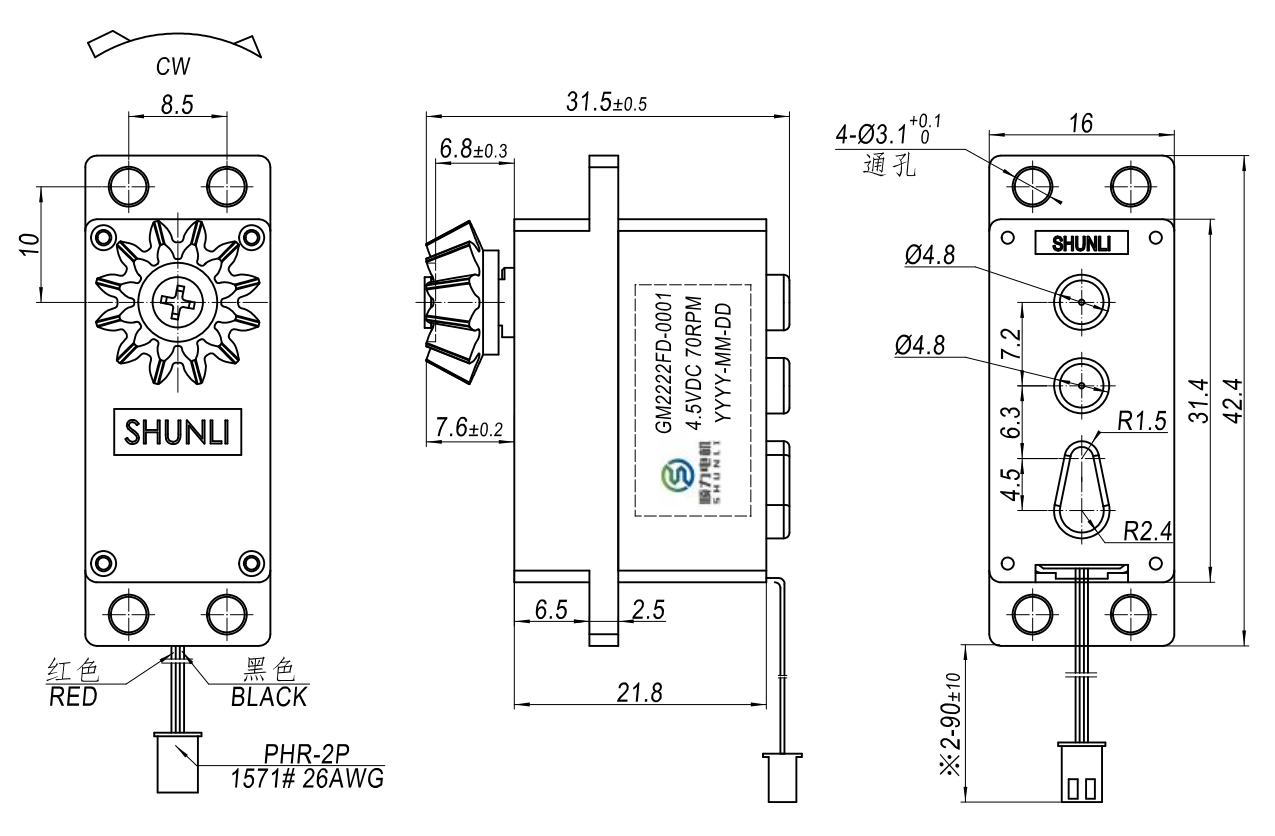

Product Dimension Performance Chart

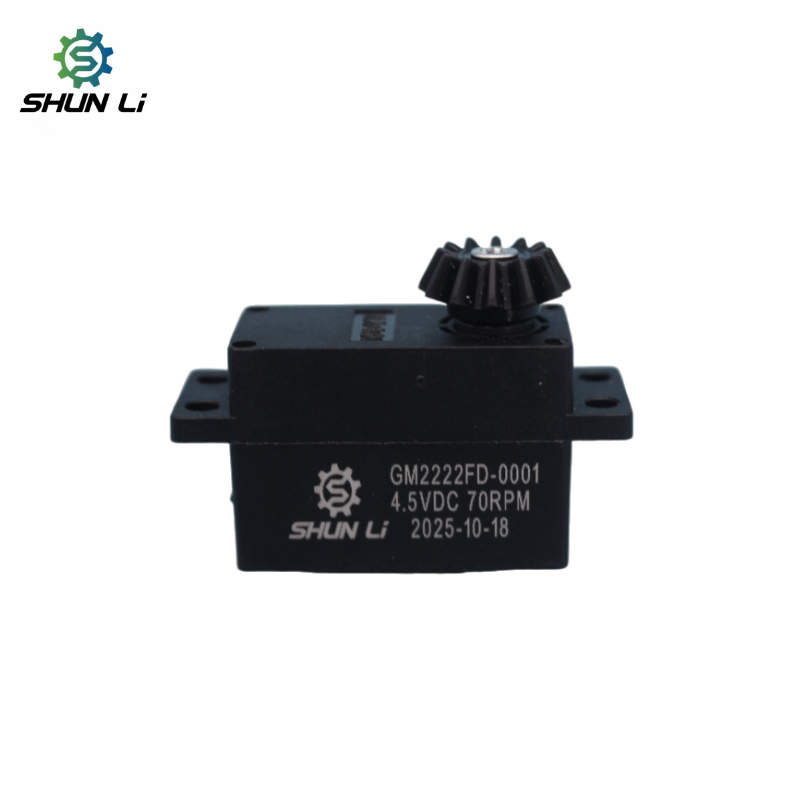

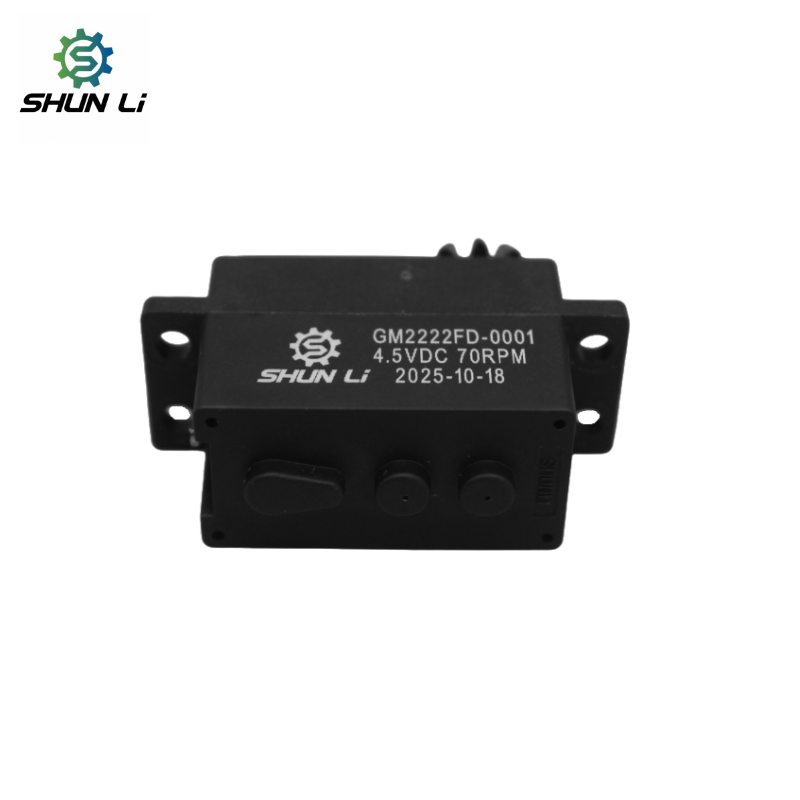

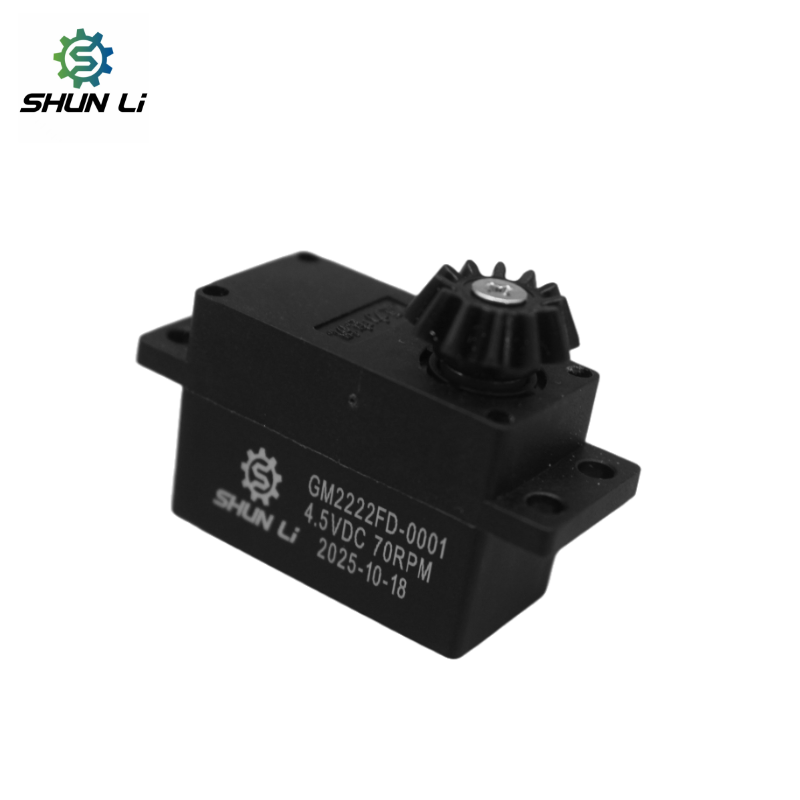

Product Gallery

Product View 1 Product View 2 Product View 3 Product View 4 Product View 5 Product View 6

Frequently Asked Questions

QAre you a trading company or manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
QWhat is the payment term for a new customer?
We can draw up an Assurance Order Online for our new customers, which allows payment via Credit Card (Master Card, Visa, etc.). We also accept PayPal or TT transfers.
QCan you customize the motor if I can't find a suitable one?
Yes, we can customize a suitable motor according to our customer's specific technical requirements.
QDo you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certifications. If you require specific other certificates, we can apply for them for you.
QHow do you handle Quality Control?
We have professional inspection staff on every production line. After assembly, we use comprehensive testing equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
