MeshLink Motor
1 / 5

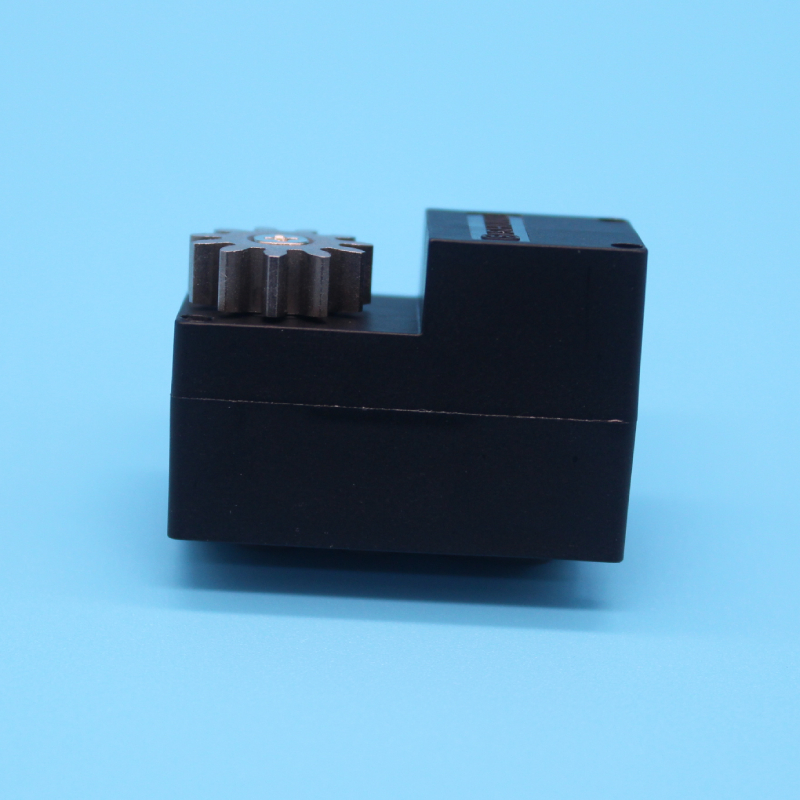

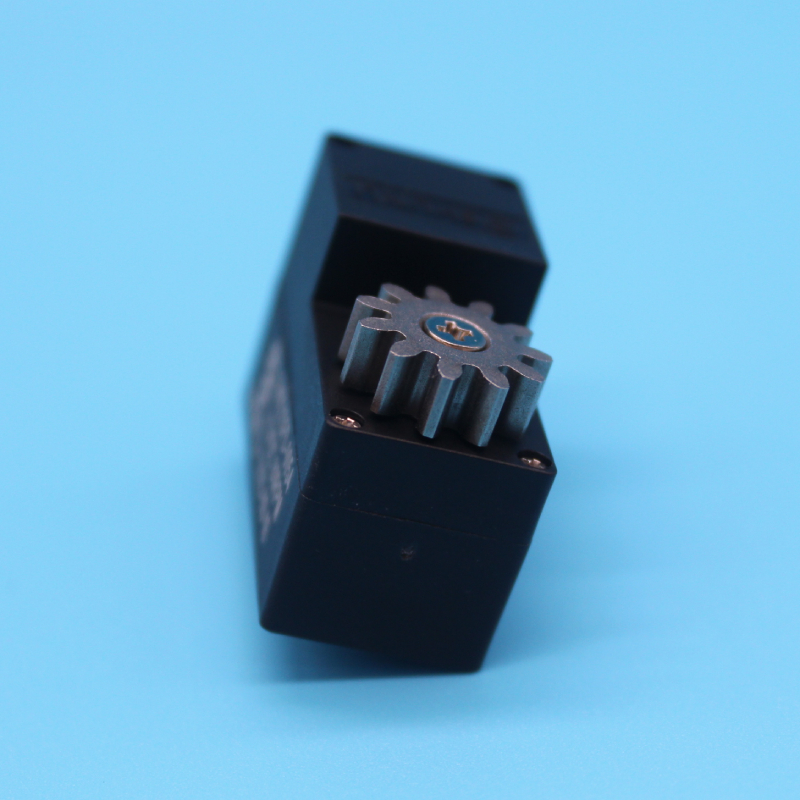

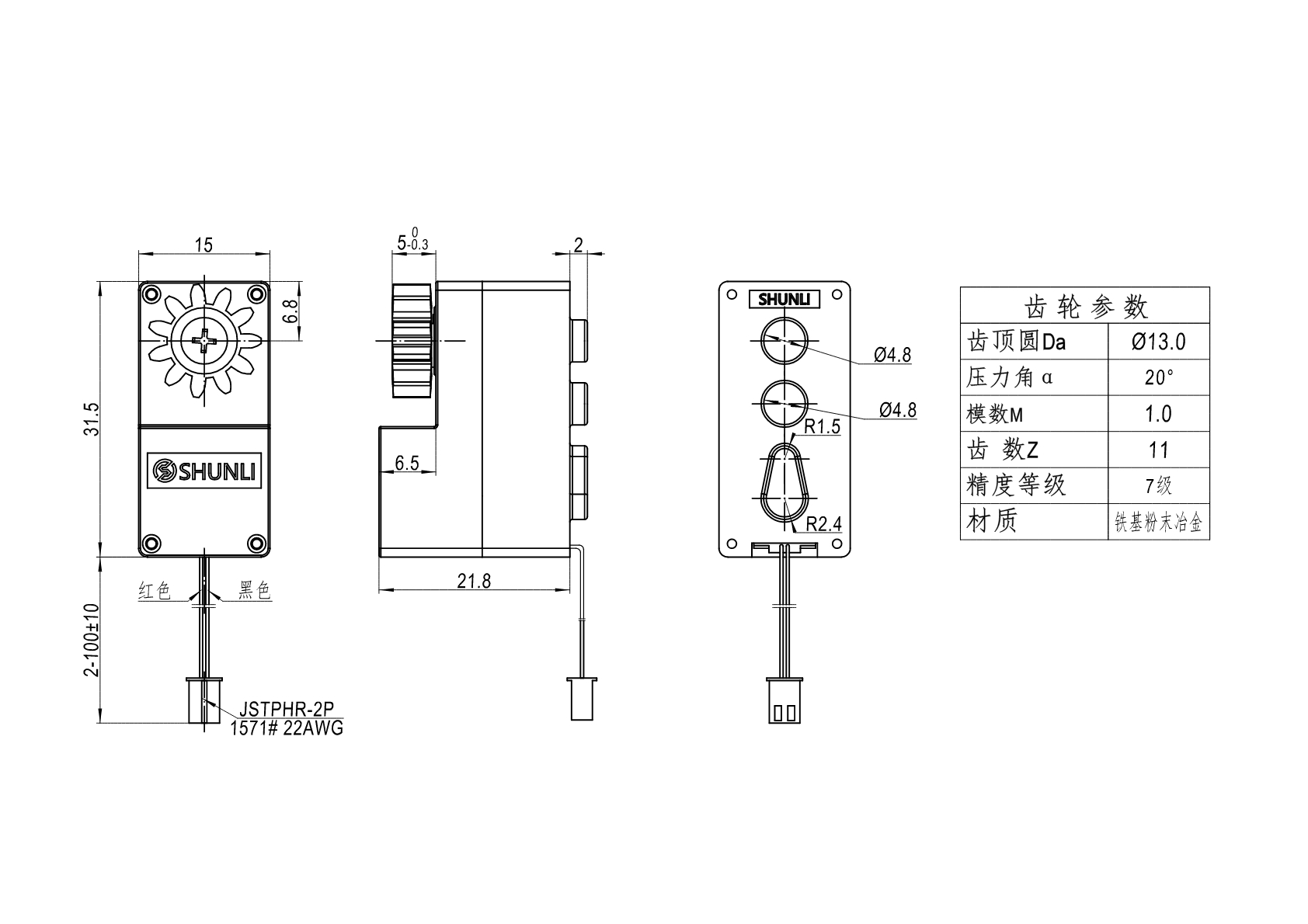

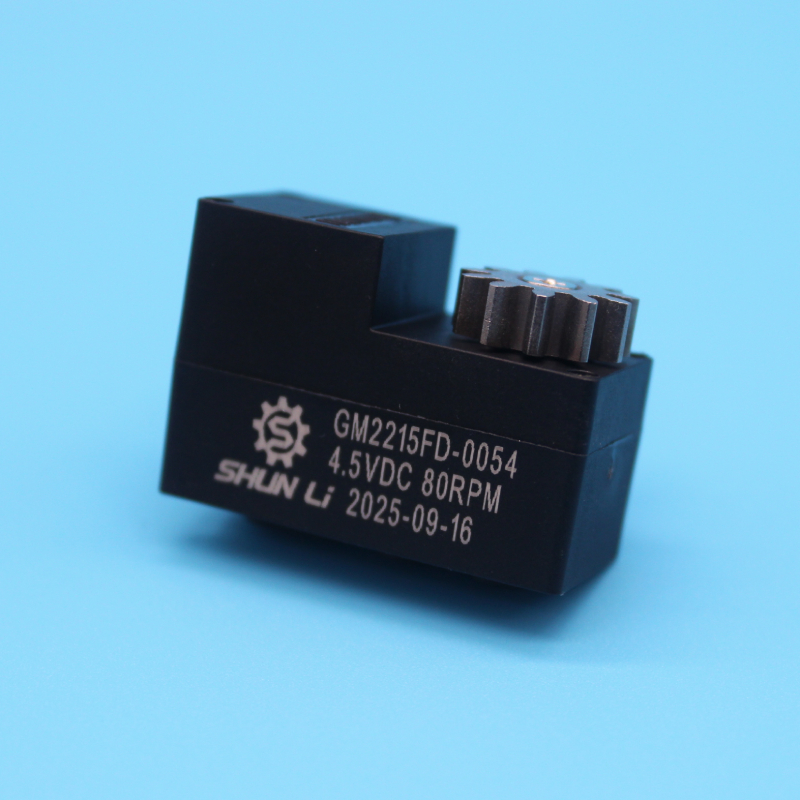

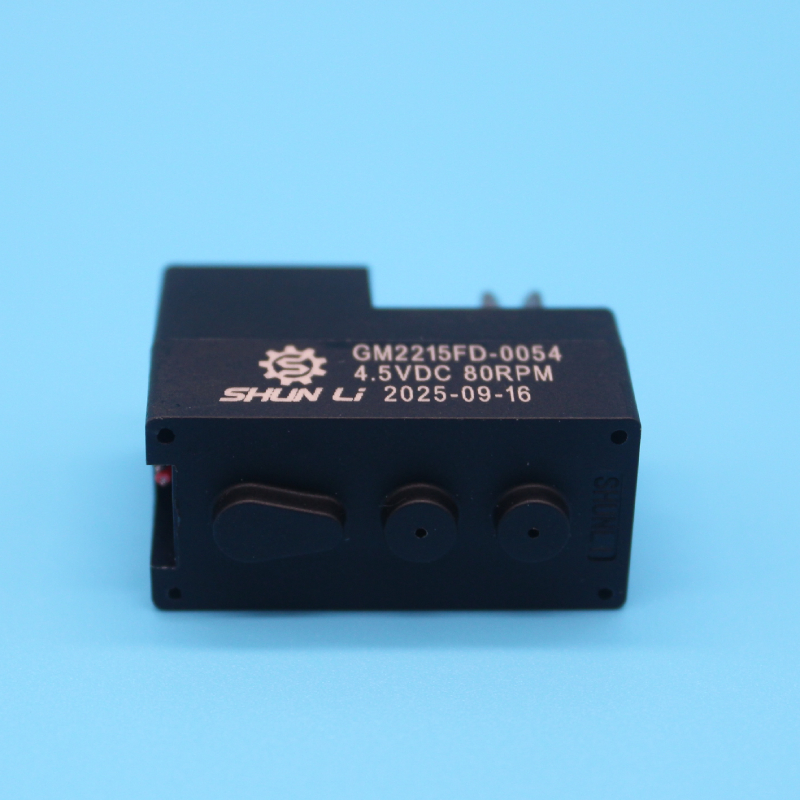

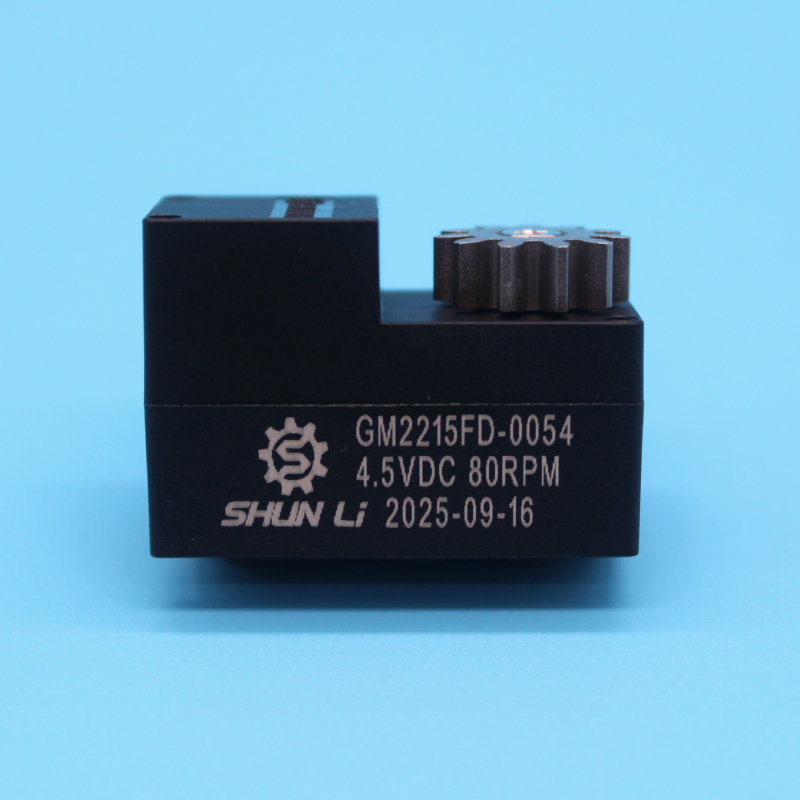

GM2215 Reference

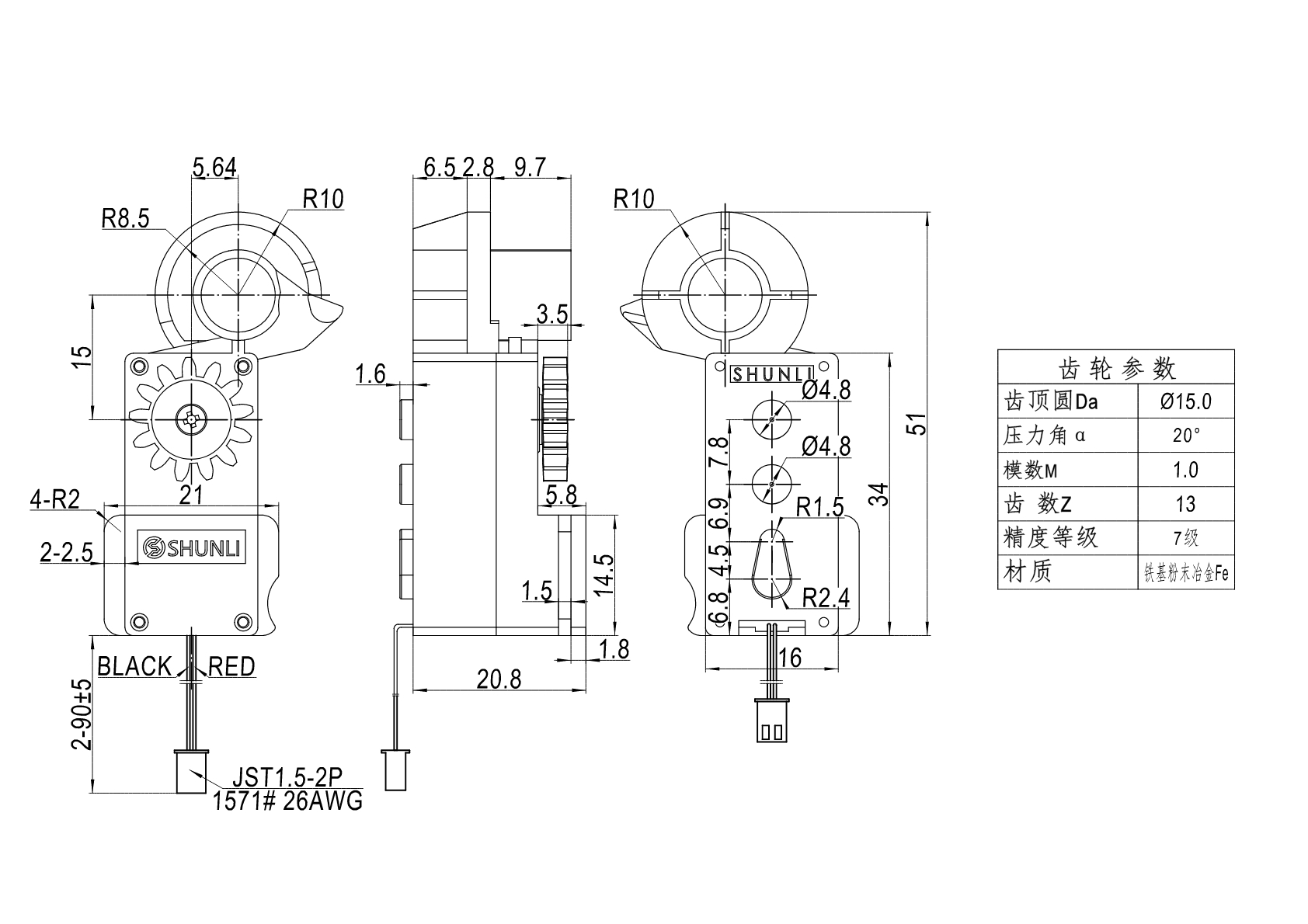

GM2219 Reference
| Parameter | Specifications |
|---|---|
| Ratio | 199K / 241K / 265K |
| Max. Rated Torque | 1.5~2.5 Kgf.cm |
| Max. Gear Breaked Torque | 4~5 Kgf.cm |
| Gearbox Efficiency | 45%~60% |
| Model | Ratio | Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed(RPM) | Current(mA) | Speed(RPM) | Current(mA) | Torque(gf.cm) | Current(mA) | Torque(Kgf.cm) | |||
| GM2215FMN20-199K | 1:199 | 4.5V | 52 | ≤50 | 40 | ≤120 | 180 | ≤350 | 1.8 |
| GM2222FMN20-230K | 1:230 | 4.5V | 58 | ≤78 | 49 | ≤135 | 240 | ≤450 | 2.0 |
| GM2219FMN20-241K | 1:241 | 4.5V | 58 | ≤65 | 50 | ≤130 | 240 | ≤680 | 2.0 |
| GM2219FMN20-265K | 1:265 | 4.5V | 62 | ≤75 | 51 | ≤140 | 350 | ≤750 | 2.2 |
