Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
1 / 4
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock
Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock

Shunli Customizable Motor Small Gear Motor 3V 6V 12V DC Motor With Micro Gearbox Low Speed 30RPM 40RPM 80RPM for Smart Lock

Send Inquiry

Product Description

Product Banner
★ Technical Specifications
Product View

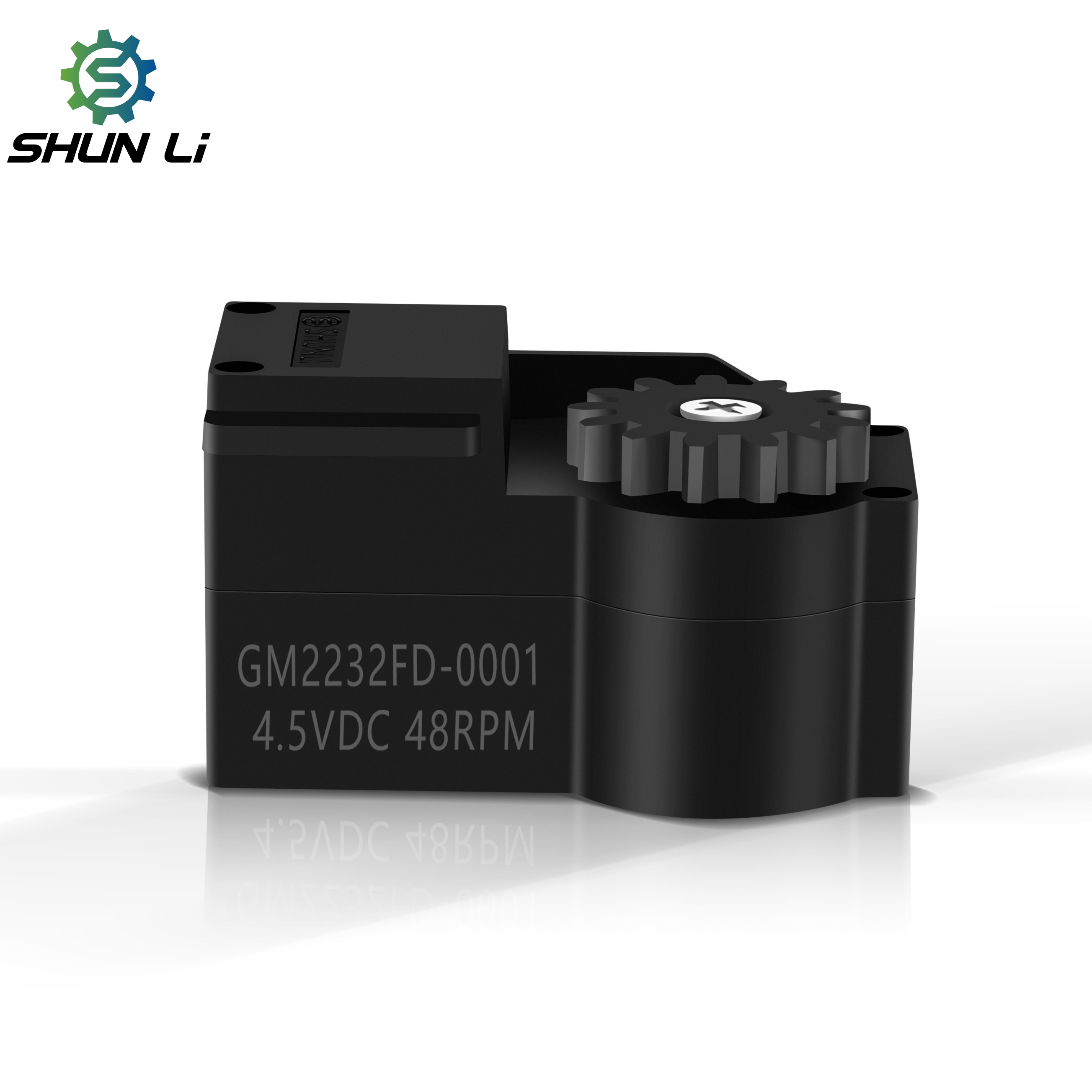

Product Model GM2232FD-0001
Ratio 1:267K
Speed 44RPM-55RPM
Voltage 4.5V
Rated Torque 40 mN.m
Customization Transmission Dimensions and Motor Parameters Can Be Customized
⚙ Dimensions & Performance

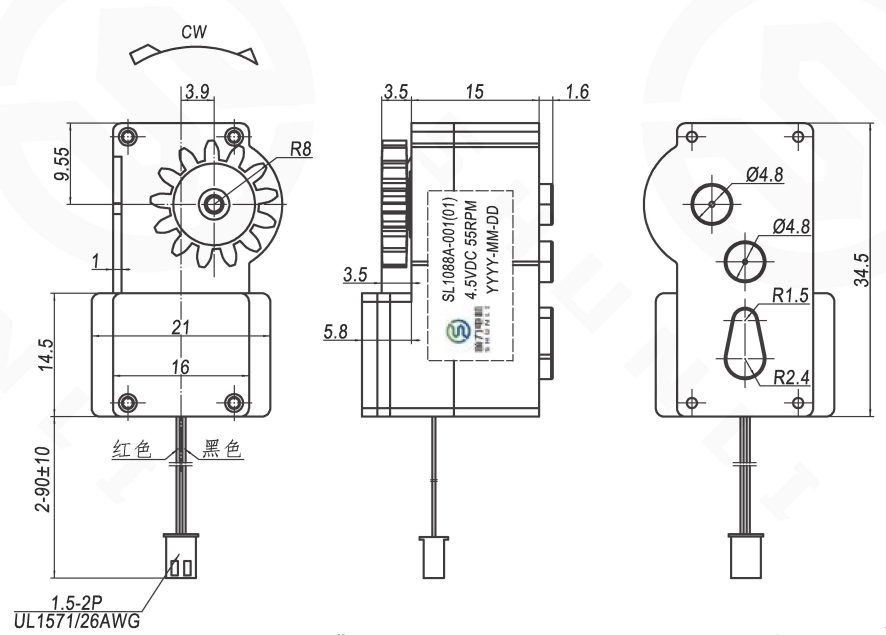

Technical Drawing

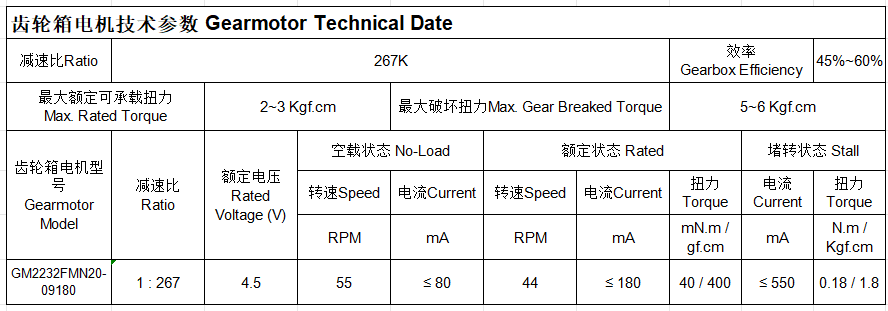

Performance Chart
✔ Product Display

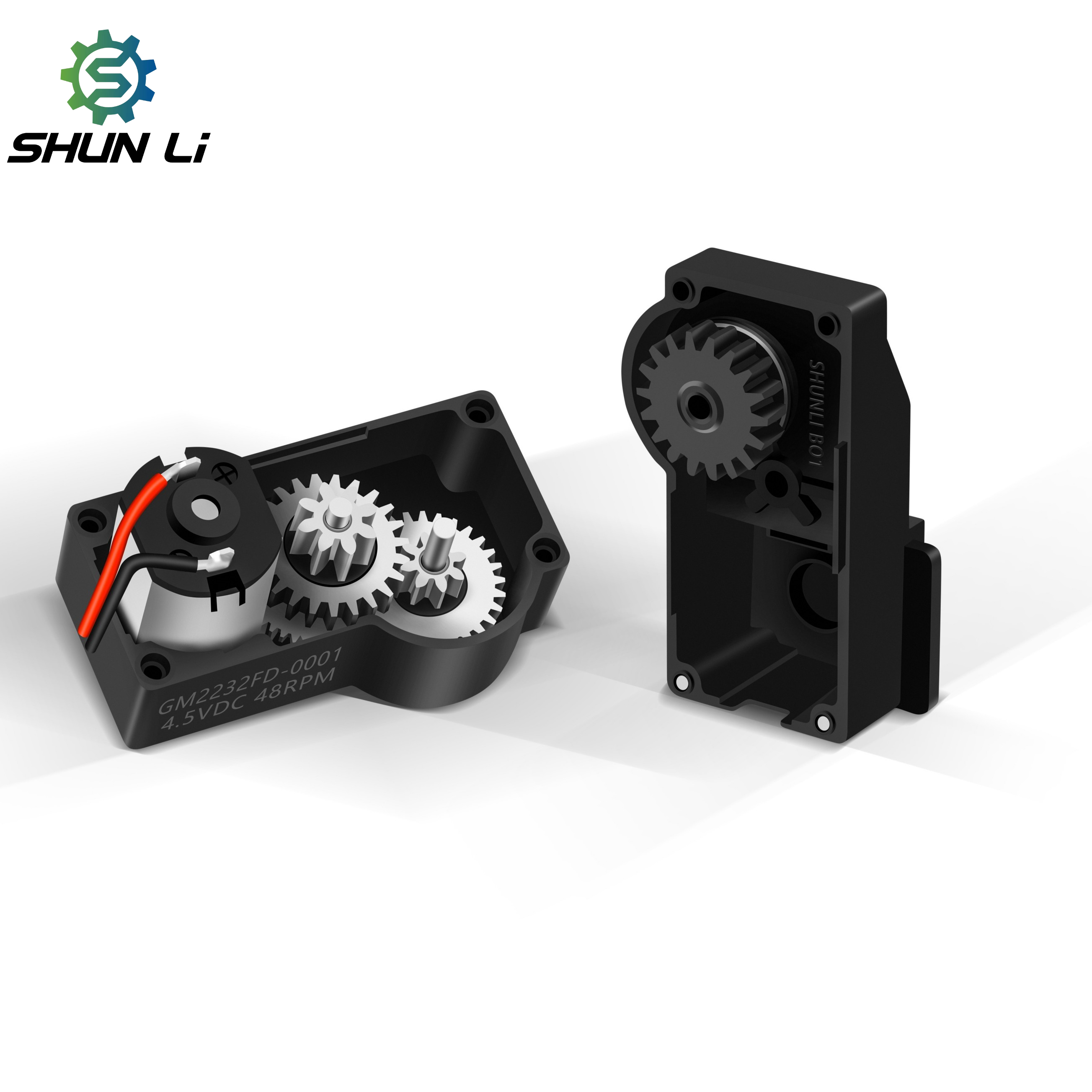

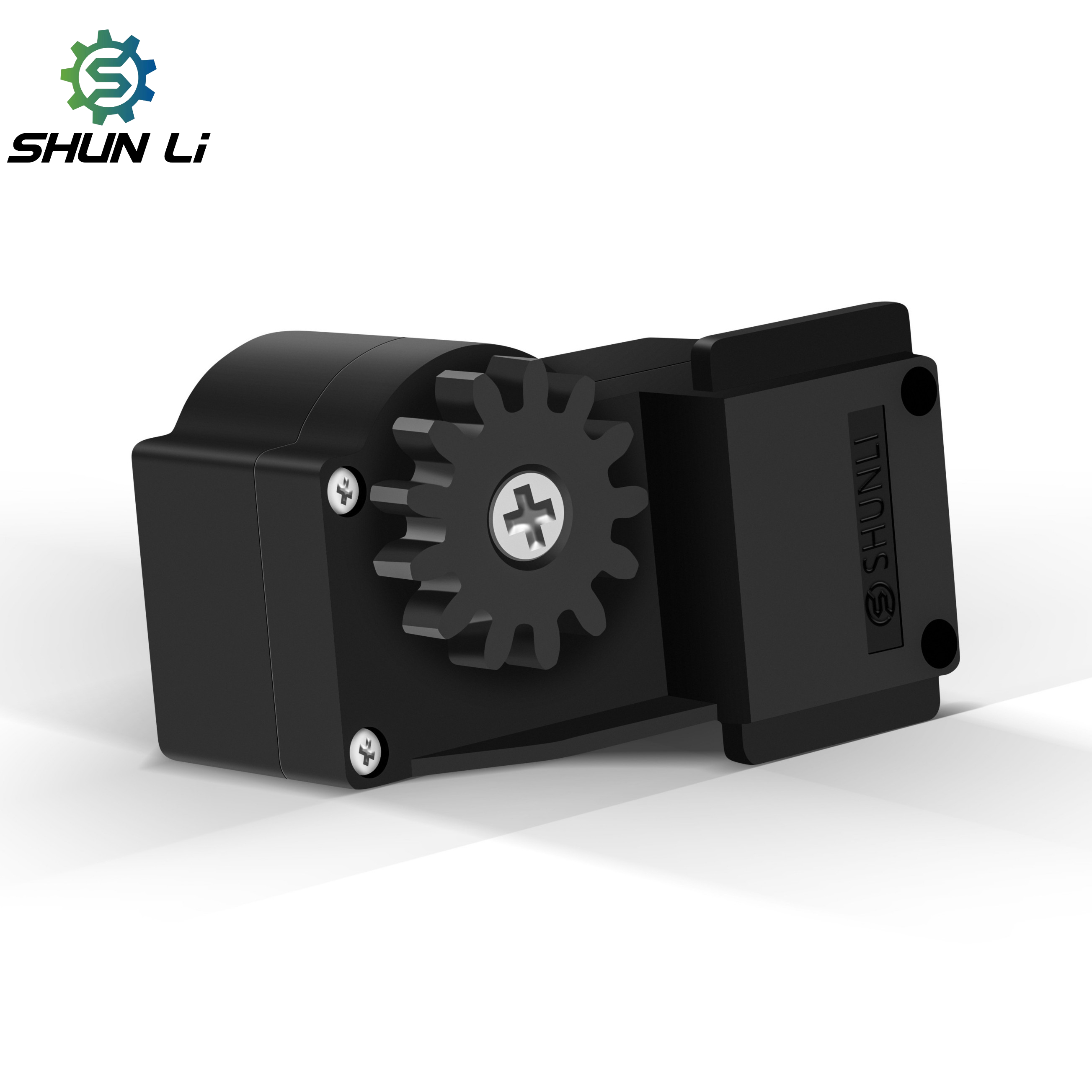

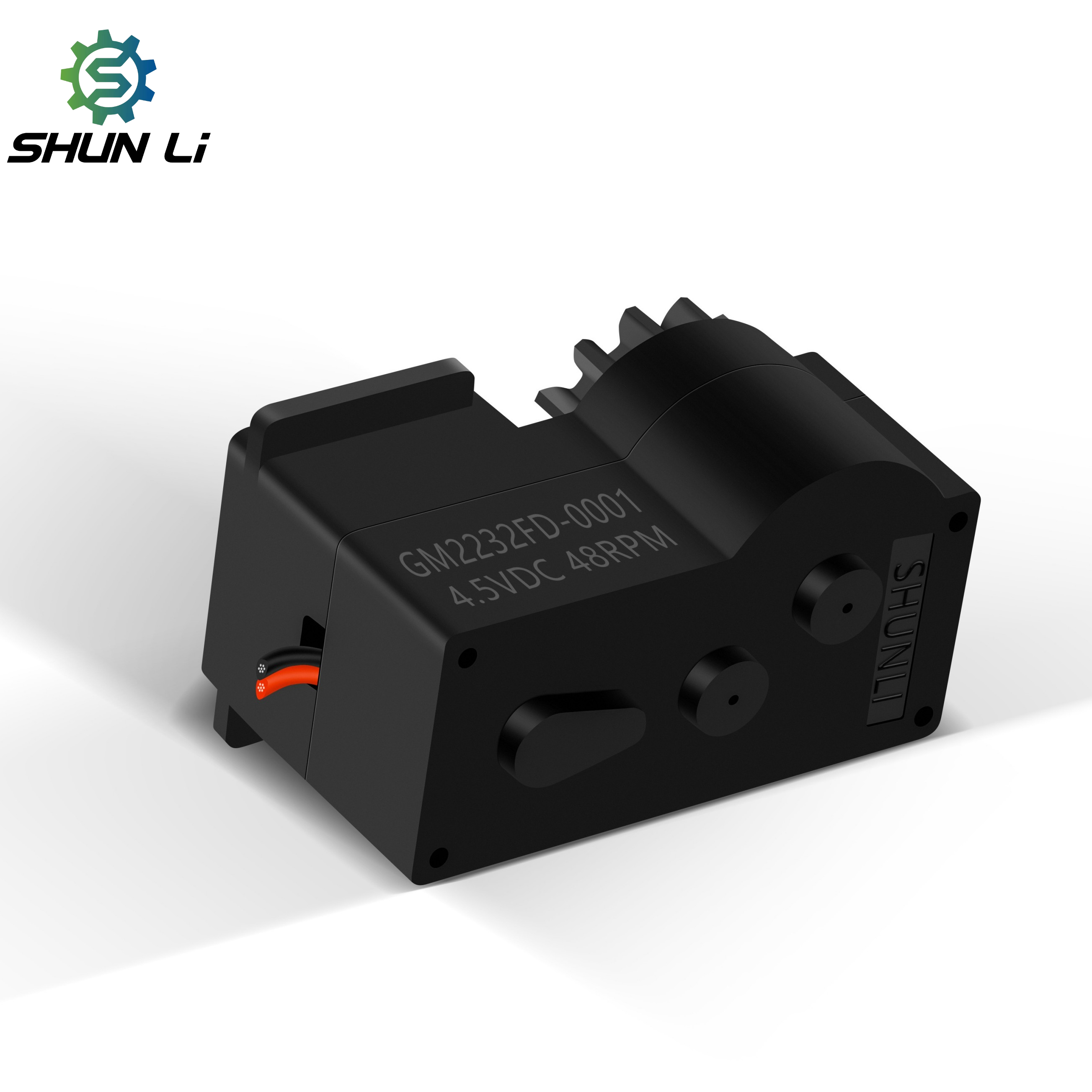

Motor Detail 1
Motor Detail 2
Motor Detail 3
Motor Detail 4
Motor Detail 5
Motor Detail 6
? Frequently Asked Questions
Are you a trading company or a manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can draw up an Assurance Order Online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
Can you customize a motor if I can't find a suitable one on your website?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other specific certificate requirements, we can apply for them for you.
How is your Quality Control process?
We have professional checking staff on every production line process. After finishing the motor, we use professional testing machines, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
