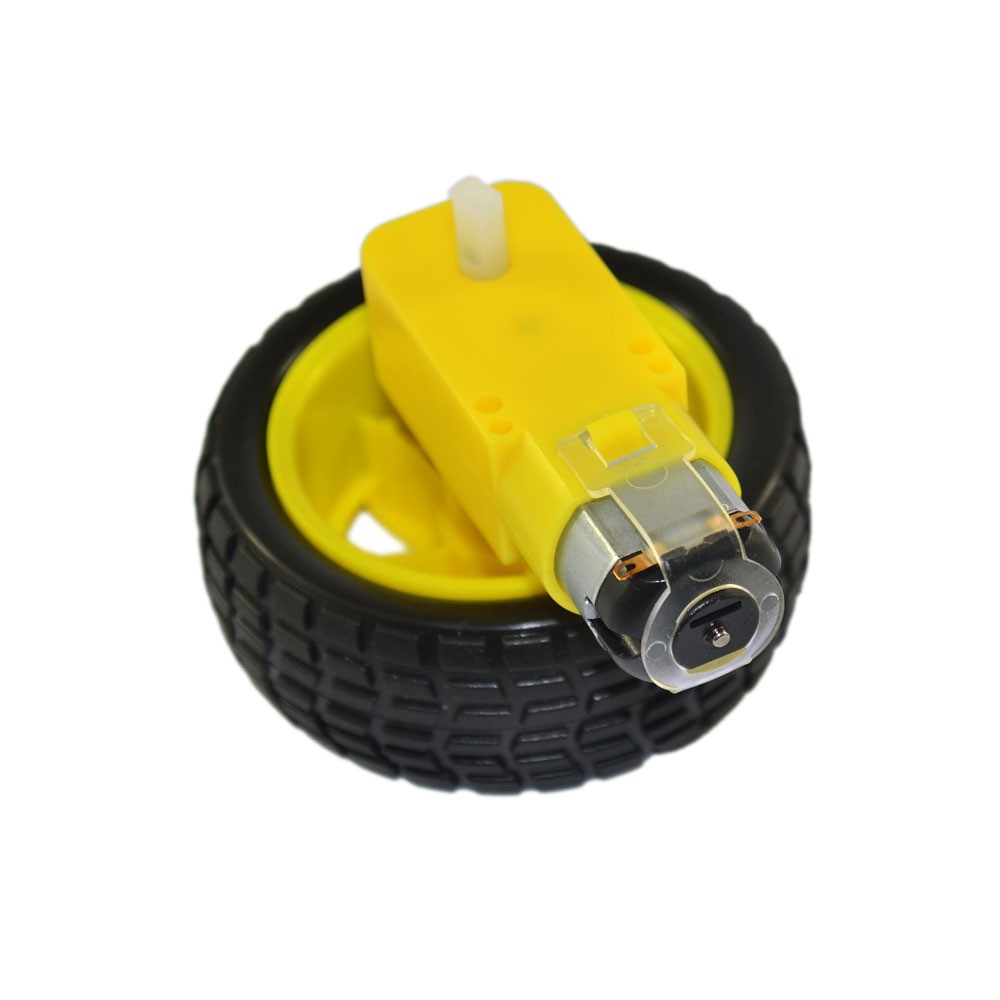

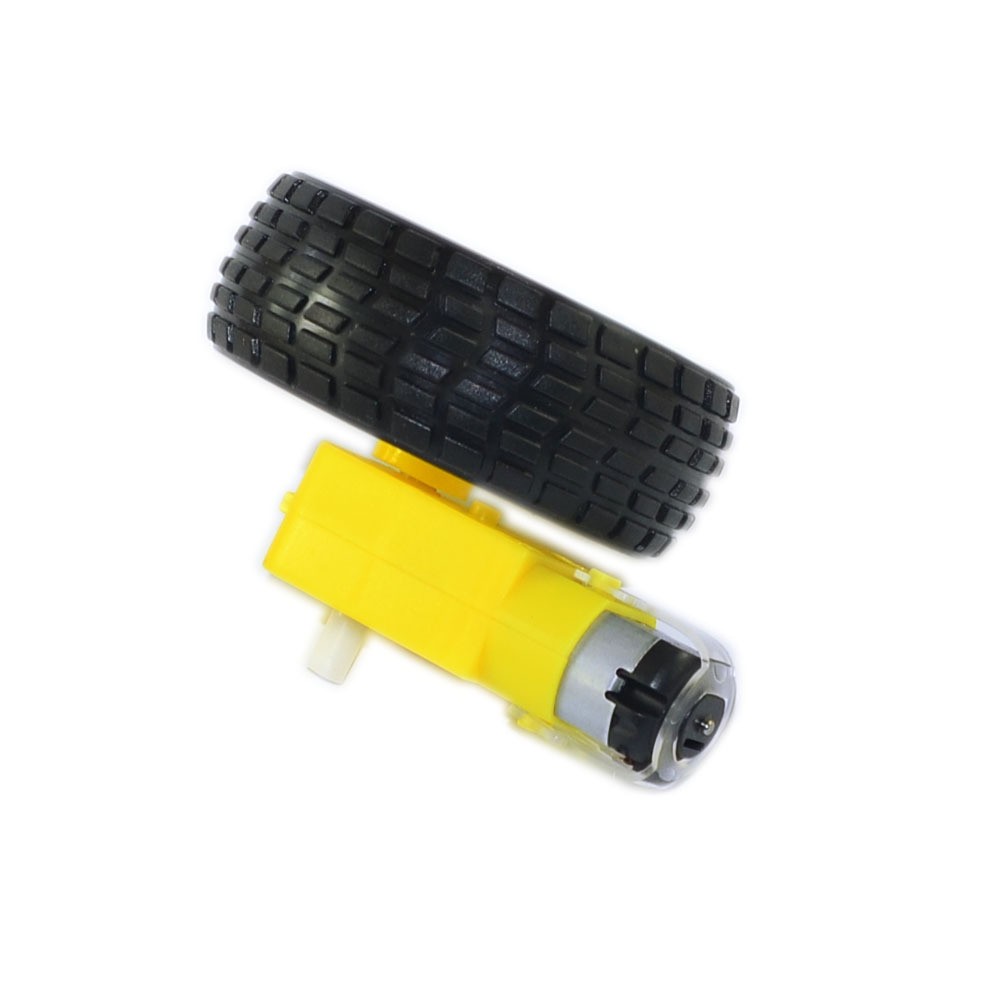

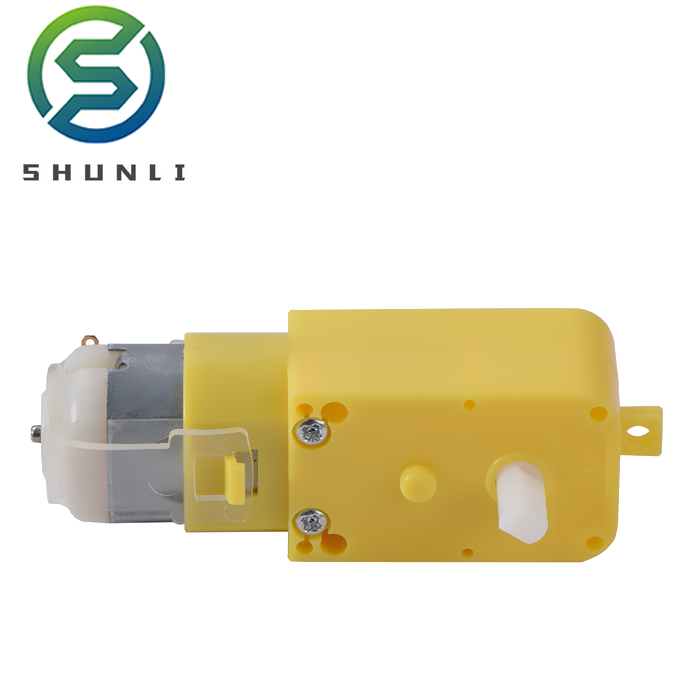

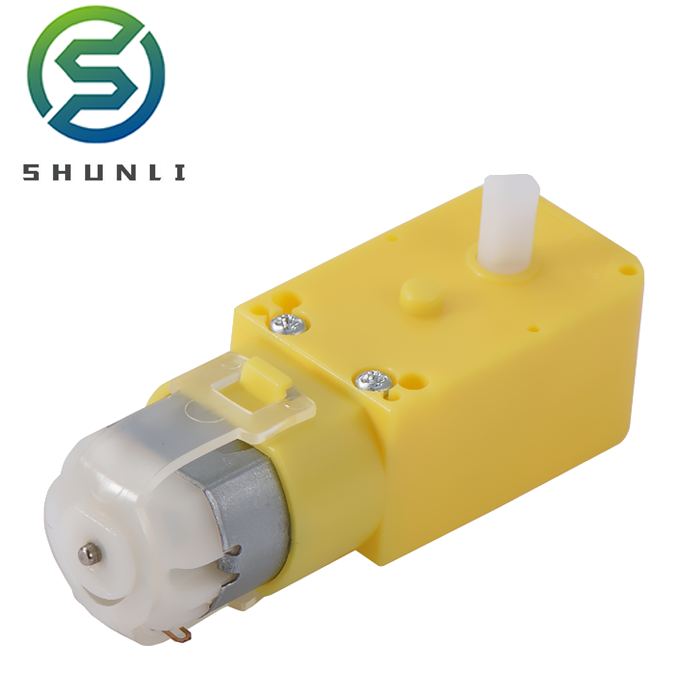

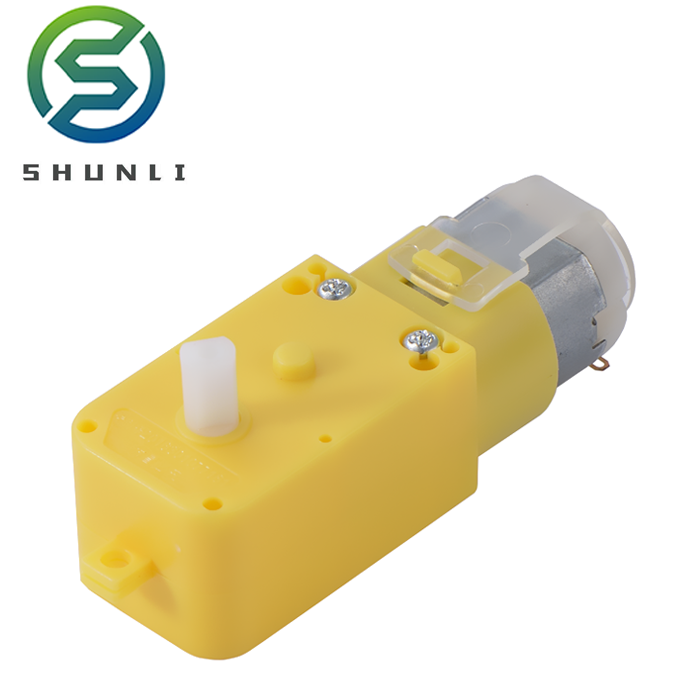

1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1 / 5
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot

1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot

Send Inquiry

Product Description

Product Overview
Mini DC Gear Toy Motor
Reduction Plastic Gearbox
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.
Mini DC Motor Details
Plastic Gearbox for Robot
Technical Characters
Model Voltage No-load Load Stall
Working Voltage Rated Speed Current Speed Current Torque Output Stall Torque Current
V rpm A rpm A N.m Kg.m W N.m Kg.m A
SGP01S-A130-14150-120 3-12.0V 4.5 100 0.2 87 0.5 0.066 0.675 0.4 0.265 2.7 1.25
SGP01S-A130-18100-220 3-12.0V 3.0 50 0.2 40 0.3 0.120 1.233 0.6 0.393 4.003 2.15
Product Dimensions & Variations
Motor Dimension Chart
DC Motor Variation 1
DC Motor Variation 2
DC Motor Variation 3
DC Motor Variation 4
DC Motor Variation 5
Frequently Asked Questions
1. Are you a trading company or manufacturer? We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer? We support multiple payment methods including online payments with Master Card, Visa, PayPal, or TT (Telegraphic Transfer) to ensure convenience and security for our new partners.
3. Can you customize the motor if I can't find a suitable one on the website? Yes, we can customize a suitable motor according to our customer's specific technical requirements.
4. Do you have certificates for the motors? Yes, we have CE, FCC, ISO, and other relevant certifications. If you require specific certificates for your region, we can apply for them as needed.
5. How is your Quality Control managed? We have professional checking staff on every production line process. After completion, we use advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers to ensure quality.
6. What is the typical application for these gear motors? These 1.5V-4.5V mini DC gear motors are ideal for toys, toy cars, DIY robot projects, and other micro-mechanical movements requiring reduction plastic gearboxes.
