Home > DC Gear Motor > Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
1 / 5
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears

Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears

Send Inquiry

Product Description

Product Banner

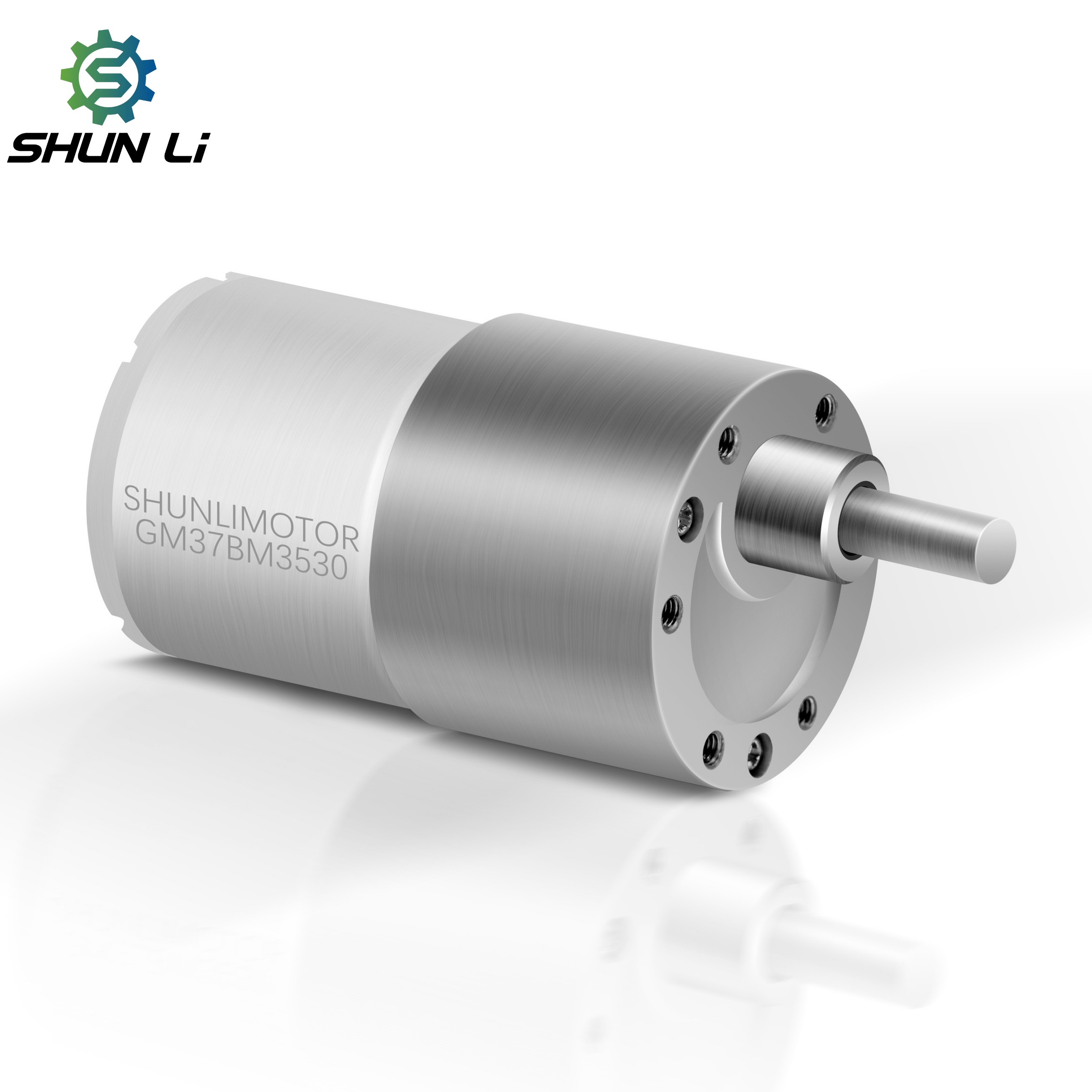

Product View
Product Model GM37BM3525/3530/3540
Gearbox Length 25mm-40mm
Speed 13RPM-100RPM
Voltage 12V/24V/12V
Torque 0.25 N.m/1.2 N.m/0.5 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
⚙️
Professional DC Gear Motor Solutions
High precision performance with customizable transmission parameters for diverse industrial applications.

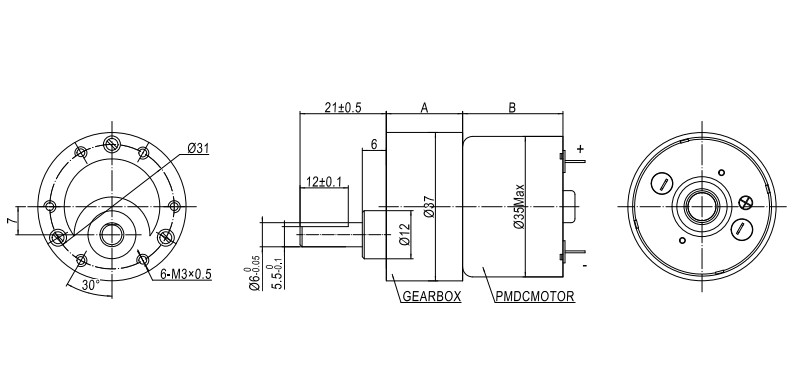

Dimensional Drawing

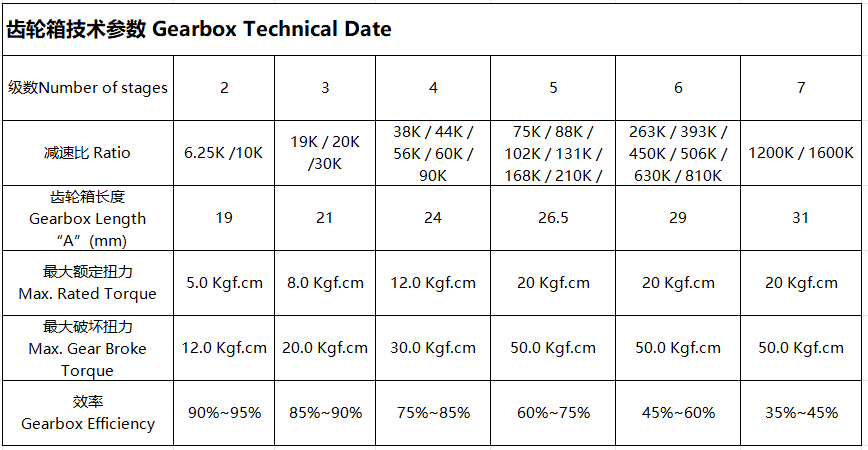

Technical Chart

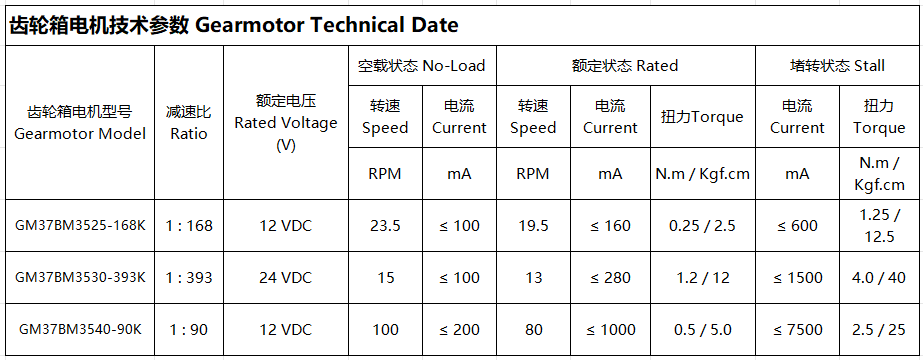

Performance Data
Gallery 1 Gallery 2 Gallery 3 Gallery 4 Gallery 5 Gallery 6
Frequently Asked Questions
1. Q: Are you a trading company or manufacturer? A: We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of expertise.
2. Q: What is the payment term for new customers? A: We accept online assurance orders via Master Card and Visa, as well as payments through PayPal and TT.
3. Q: Can you customize a motor if I cannot find a suitable one? A: Yes, we provide full customization services to modify motor parameters and dimensions according to your specific requirements.
4. Q: Do you hold certifications for your motors? A: Yes, we have CE, FCC, and ISO certifications. We can also apply for other specific certificates upon request.
5. Q: How do you ensure Quality Control? A: We employ professional inspectors at every stage of production and utilize advanced testing machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.
6. Q: Can you provide technical support for integration? A: Yes, our engineering team is available to assist with motor selection and technical specifications to ensure the motor fits your application perfectly.
