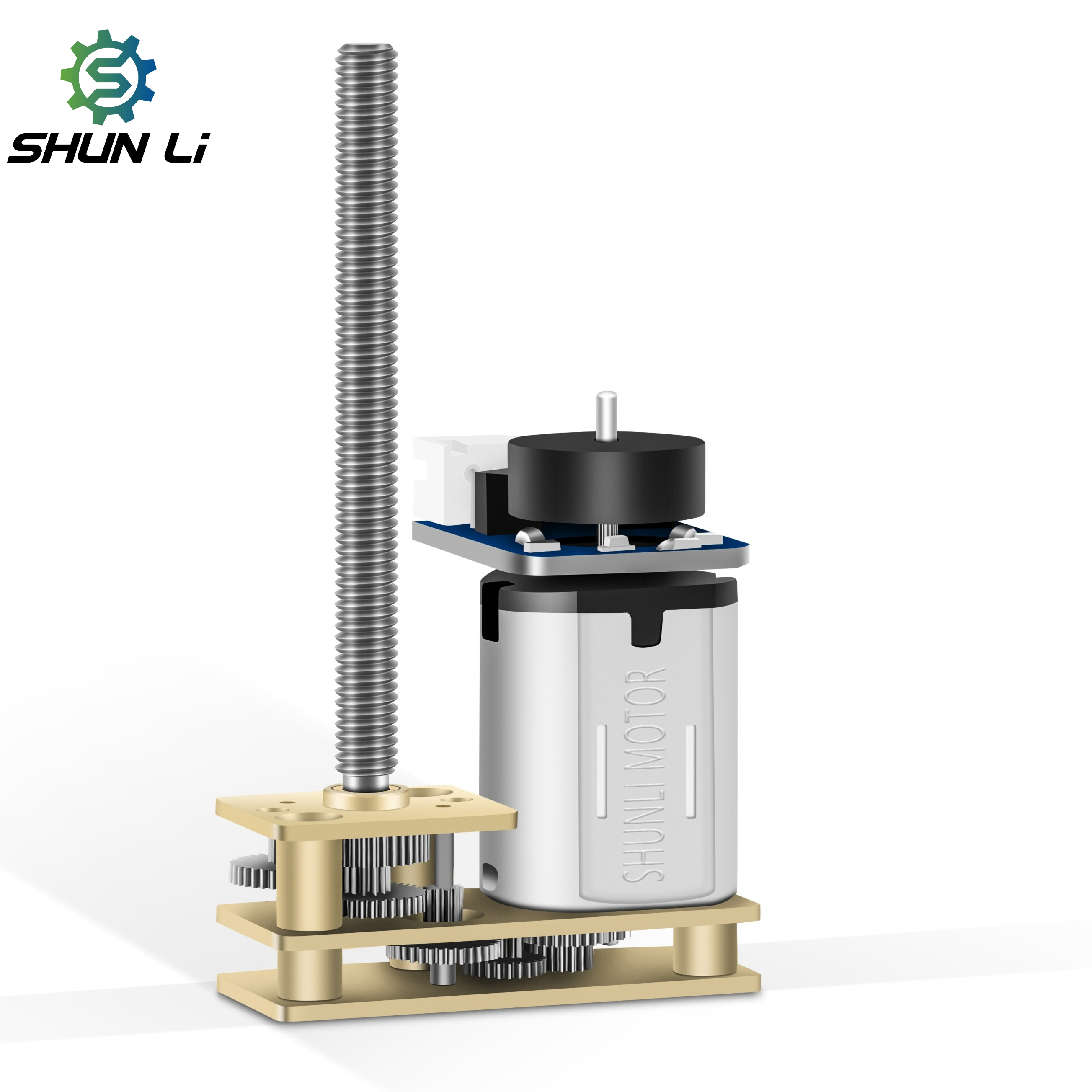

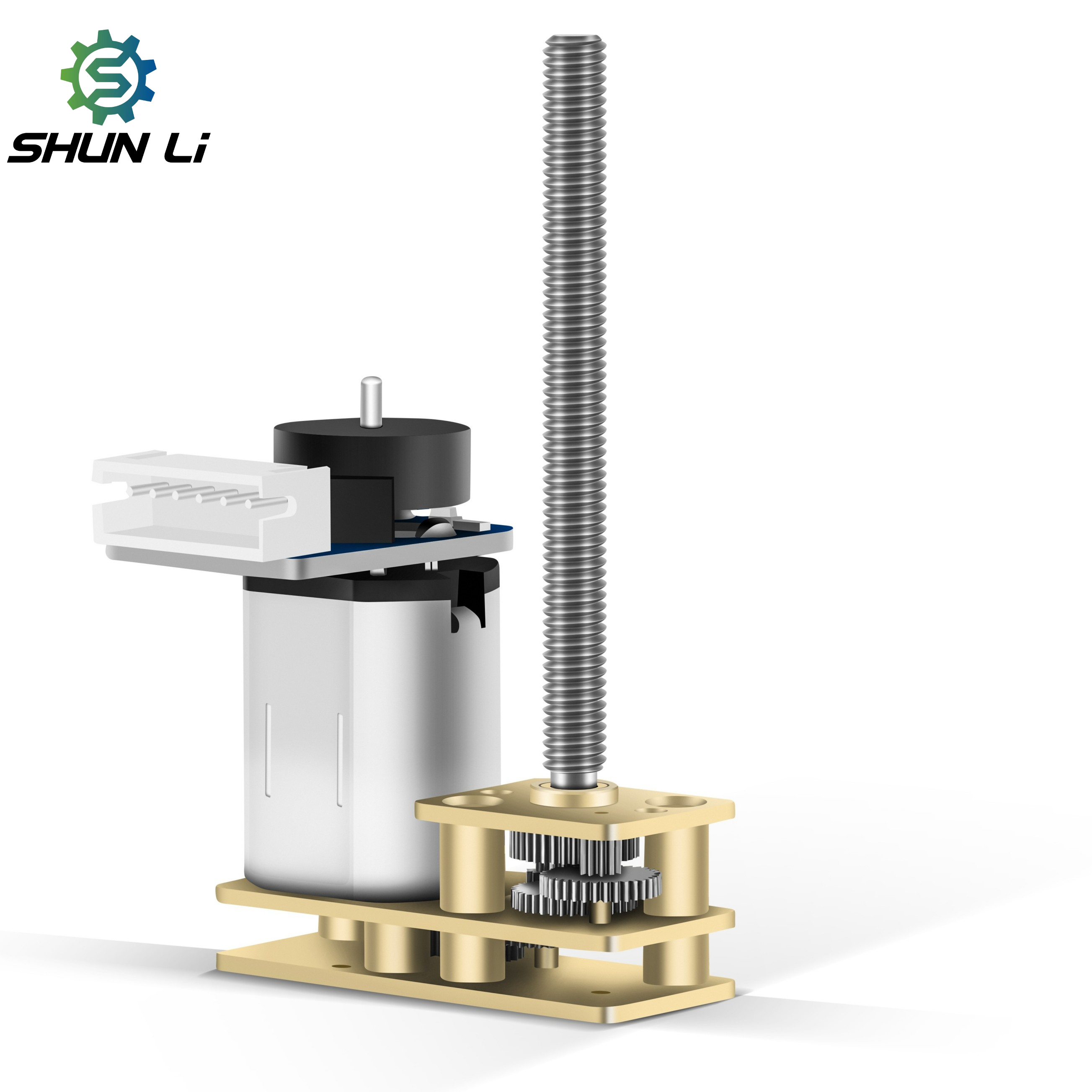

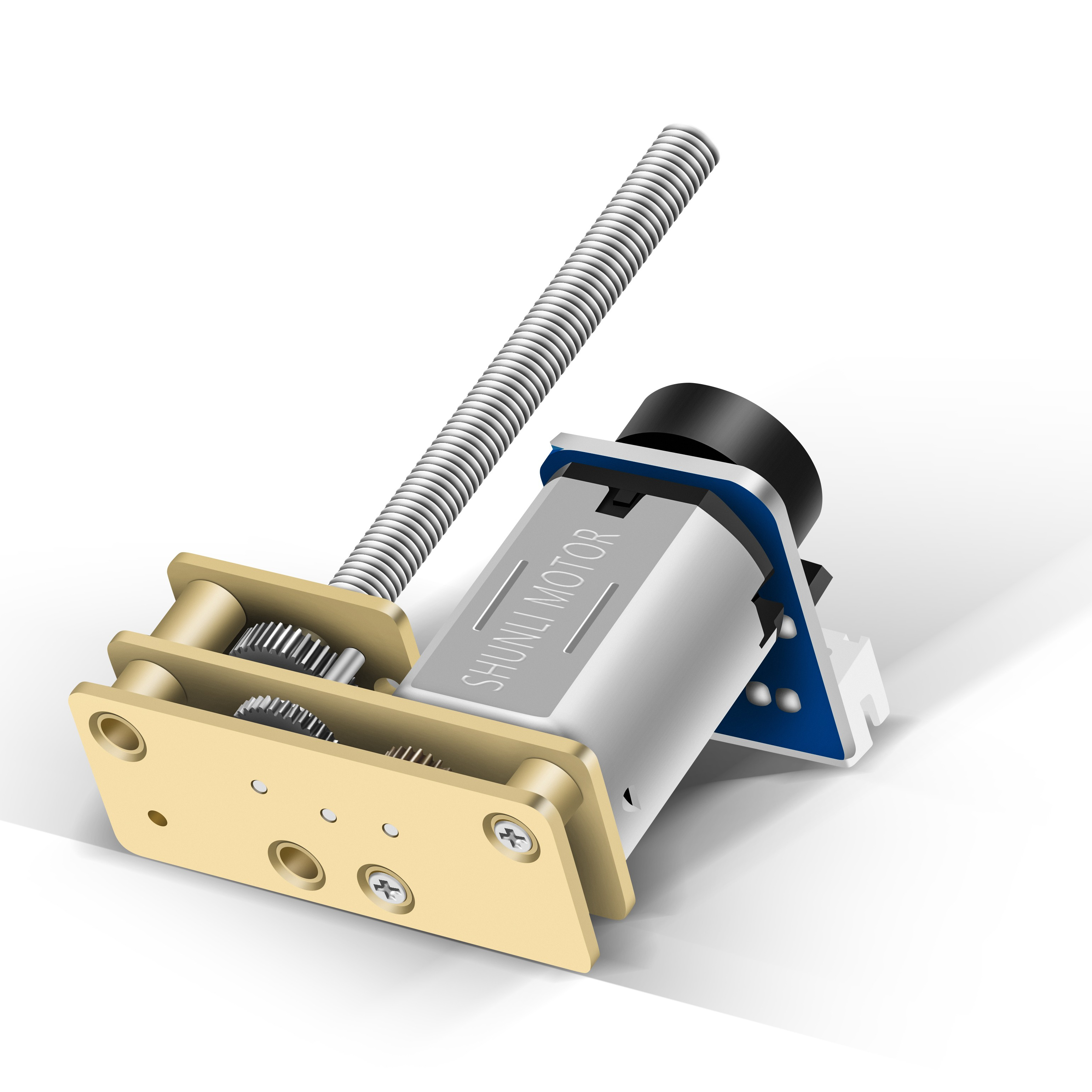

DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
1 / 5
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)

DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)

Send Inquiry

Product Description

Product Display
✓ Product Specifications
Product Details
Product Model GM24FMN20/N30
Gearbox Length 19±0.3mm
Speed 80RPM-325RPM
Voltage 3.7V
Torque 12mN.m/60mN.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
⚙ Technical Parameters & Dimensions

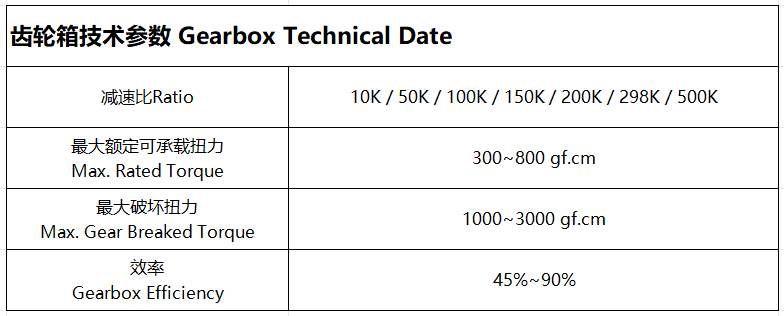

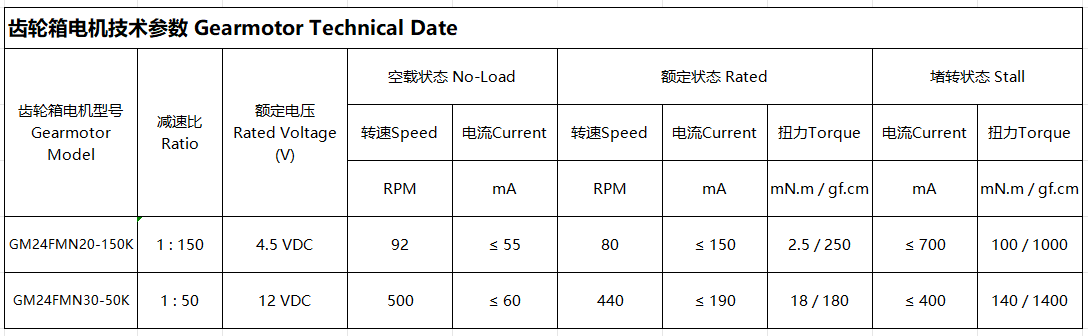

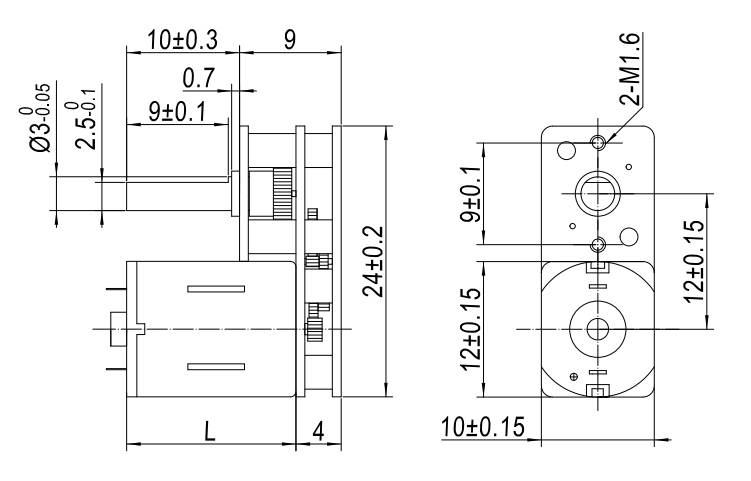

Technical Drawing 1 Technical Drawing 2 Technical Drawing 3
📷 Product Gallery
Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4 Gallery Image 5 Gallery Image 6
? Frequently Asked Questions
Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have professional machines to test, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
How can I ensure the product fits my application?
The transmission dimensions and motor parameters can be fully customized to match your specific application needs. Our engineering team can provide technical drawings for confirmation.
