China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
1 / 5
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

Send Inquiry

Product Description

Product Overview
★ Technical Specifications
Motor Details
Product Model GM37BM545/555/575
Gearbox Length 50mm-65mm
Speed 17.5RPM-240RPM
Voltage 24V/24V/12V
Torque 0.85 N.m/1.8 N.m/2.0 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
⚙ Technical Diagrams

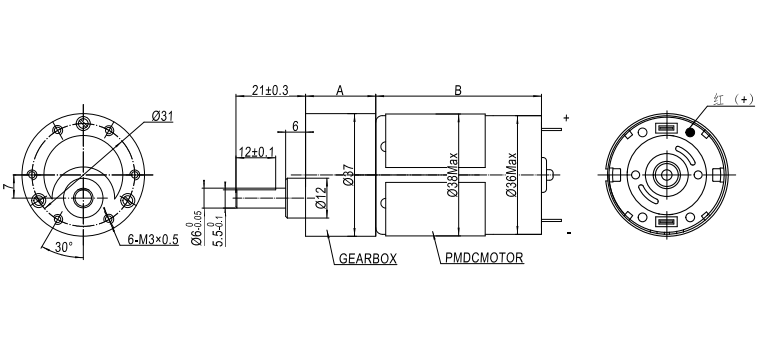

Dimensions 1

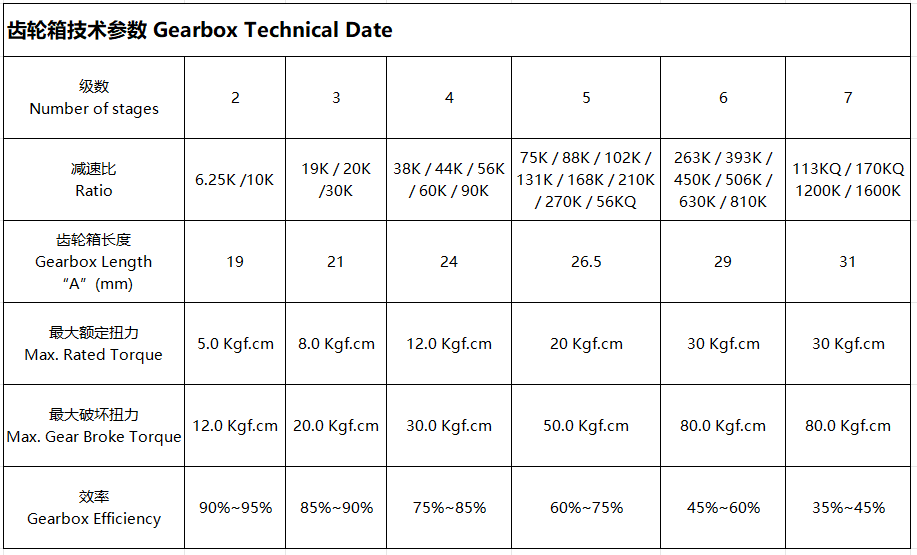

Dimensions 2

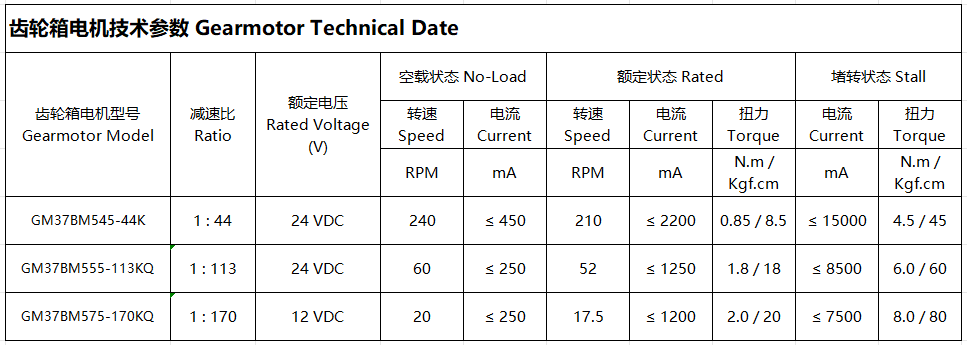

Dimensions 3
✔ Product Display
Product Image 1
Product Image 2
Product Image 3
Product Image 4
Product Image 5
Product Image 6
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
Q2: What are the payment terms for new customers?
We accept various payment methods including Online Assurance Orders (Visa, Master Card), PayPal, and TT for our customers' convenience.
Q3: Can you customize a motor if I can't find a suitable one on the site?
Yes, we can customize motor parameters and transmission dimensions according to your specific requirements.
Q4: Do your motors come with quality certifications?
Yes, our motors are certified with CE, FCC, ISO, and other relevant standards. We can apply for additional certifications if needed.
Q5: How do you ensure product quality control?
We have professional inspectors on every production line and use advanced testing equipment like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers to ensure performance.
Q6: Do you provide samples for testing before bulk orders?
Yes, we provide sample units to ensure the technical specifications meet your application needs before moving to mass production.
