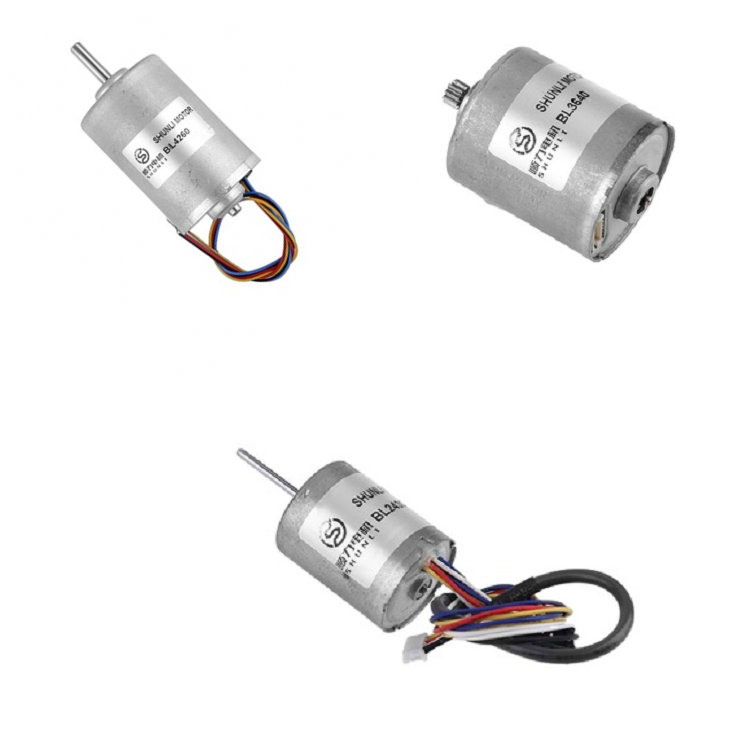

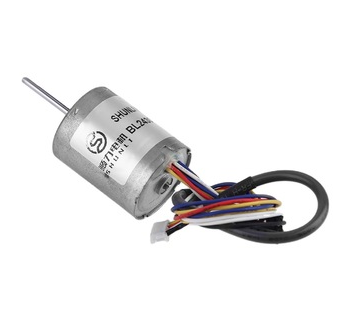

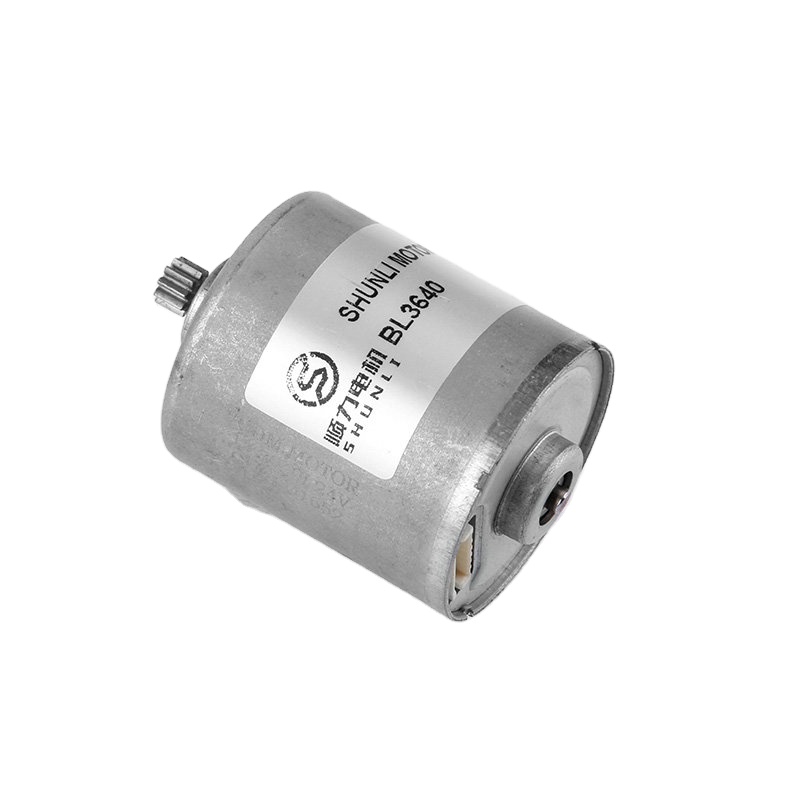

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

1 / 5

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

Send Inquiry

Product Description

12V 18V 24V High Speed 20000 RPM - 40000 RPM 36mm Brushless DC Motor for Fan

Product Details

Motor Customized Specification Available

Reference Technical Specification

BLDC MOTOR Terminations

PIN NO.	PIN Arrangement
1	VCC
2	FG
3	CW/CCW
4	GND
5	PWM

Reference Datasheet

Product Gallery

Frequently Asked Questions

Q1: What is the maximum speed of this brushless motor? A1: This high-speed brushless DC motor can reach speeds up to 40,000 RPM depending on the voltage and load configuration.

Q2: Which voltage options are available for this motor? A2: The motor is designed to operate efficiently at 12V, 18V, and 24V DC power supplies.

Q3: Does the motor support speed control? A3: Yes, the motor includes a PWM (Pulse Width Modulation) pin for precise speed adjustment and an FG pin for speed feedback.

Q4: Can the direction of rotation be changed? A4: Yes, the motor features a CW/CCW termination pin, allowing you to switch between clockwise and counter-clockwise rotation easily.

Q5: Is this motor suitable for high-pressure cooling fans? A5: Absolutely. With a 36mm diameter and high RPM capabilities (up to 40,000 RPM), it is ideal for high-performance fan and blower applications.

Q6: Are customized specifications available? A6: Yes, we provide customization for performance parameters, shaft dimensions, and wiring to meet your specific application requirements.

Product Detail

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

Product Description
