Product Description

Power Brushless Dc Motor
Brushless DC Motor Banner
Product Description
⚙️ High Performance Brushless DC Motor

12v 18v 24v power brushless dc motor 1500 RPM 3000 RPM 4000 RPM for Washing machine/RC plane/DIY Technical tool/fan/Robot/Pump

Motor Overview
Product Details
Customized Specification

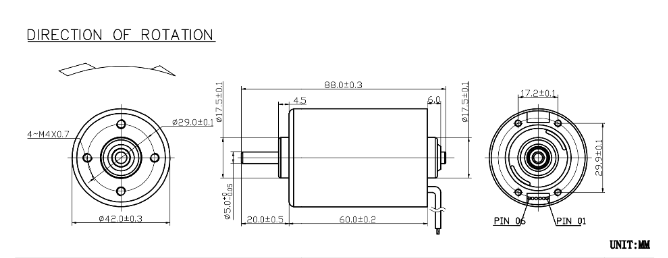

Reference Technical Specification
BLDC MOTOR Terminations
PIN NO. PIN Arrangement
1 VCC
2 FG
3 CW/CCW
4 GND
5 PWM
Reference Datasheet
Technical Datasheet
Recommend Products
Recommended Motor 1 Recommended Motor 2 Recommended Motor 3 Recommended Motor 4 Recommended Motor 5 Recommended Motor 6 Recommended Motor 7 Recommended Motor 8
Frequently Asked Questions
What are the main applications for these brushless DC motors?
These motors are versatile and widely used in washing machines, RC planes, DIY technical tools, fans, robotic systems, and water pumps due to their high torque and efficiency.
Do you support customized motor specifications?
Yes, we provide customized specifications to meet your specific project requirements. Please provide your technical needs for a tailored solution.
What voltage options are available for this series?
This series supports 12V, 18V, and 24V DC power inputs, offering flexibility for various power supply environments.
What are the standard RPM ranges for these micro motors?
Standard configurations typically offer speeds of 1500 RPM, 3000 RPM, and 4000 RPM, which can be controlled via PWM signals.
How is the motor speed controlled?
The speed can be precisely adjusted using the PWM (Pulse Width Modulation) pin as shown in the BLDC motor termination table.
Can the rotation direction be changed?
Yes, the motor includes a CW/CCW (Clockwise/Counter-Clockwise) pin arrangement, allowing for easy direction control in your application.
