Home > DC Gear Motor > 13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

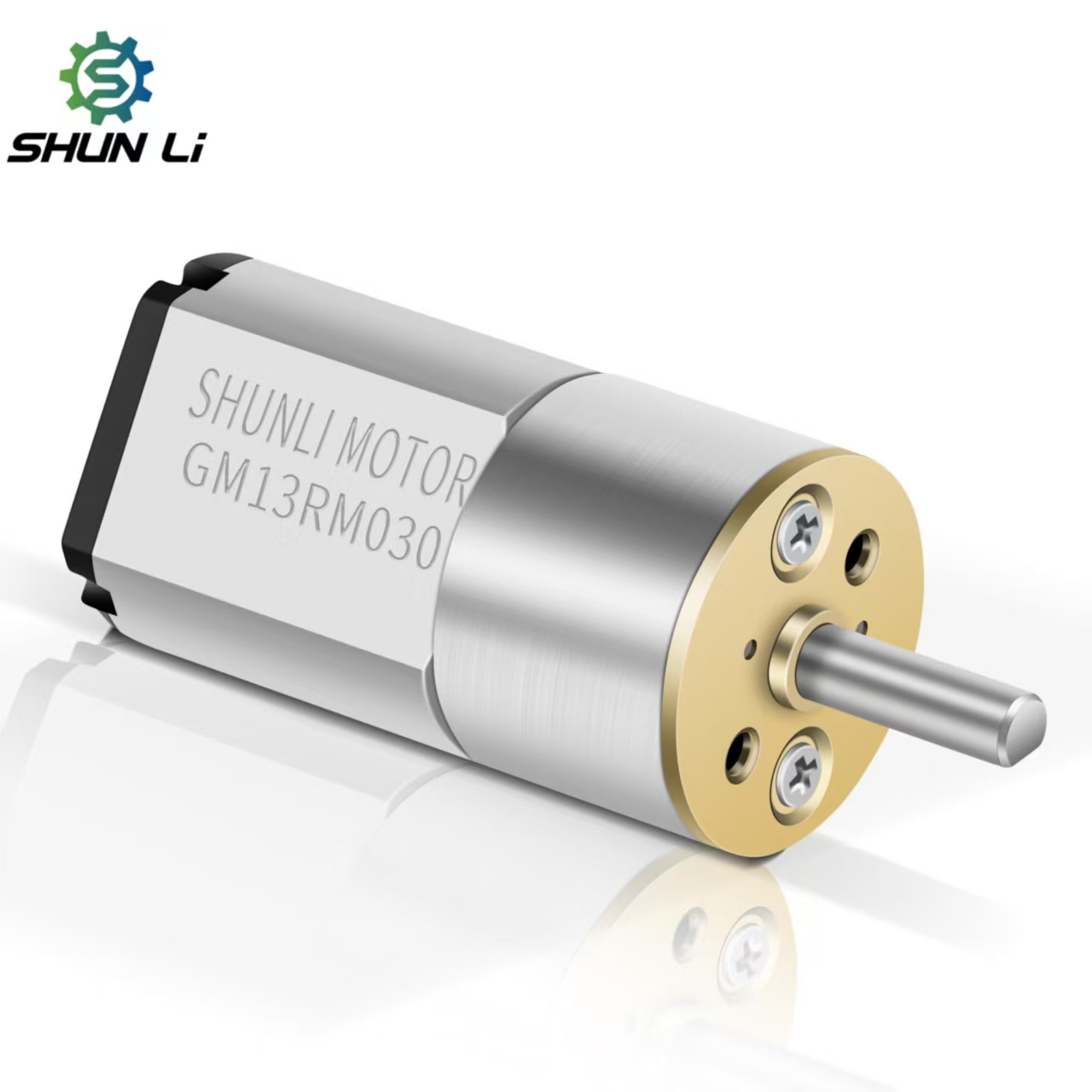

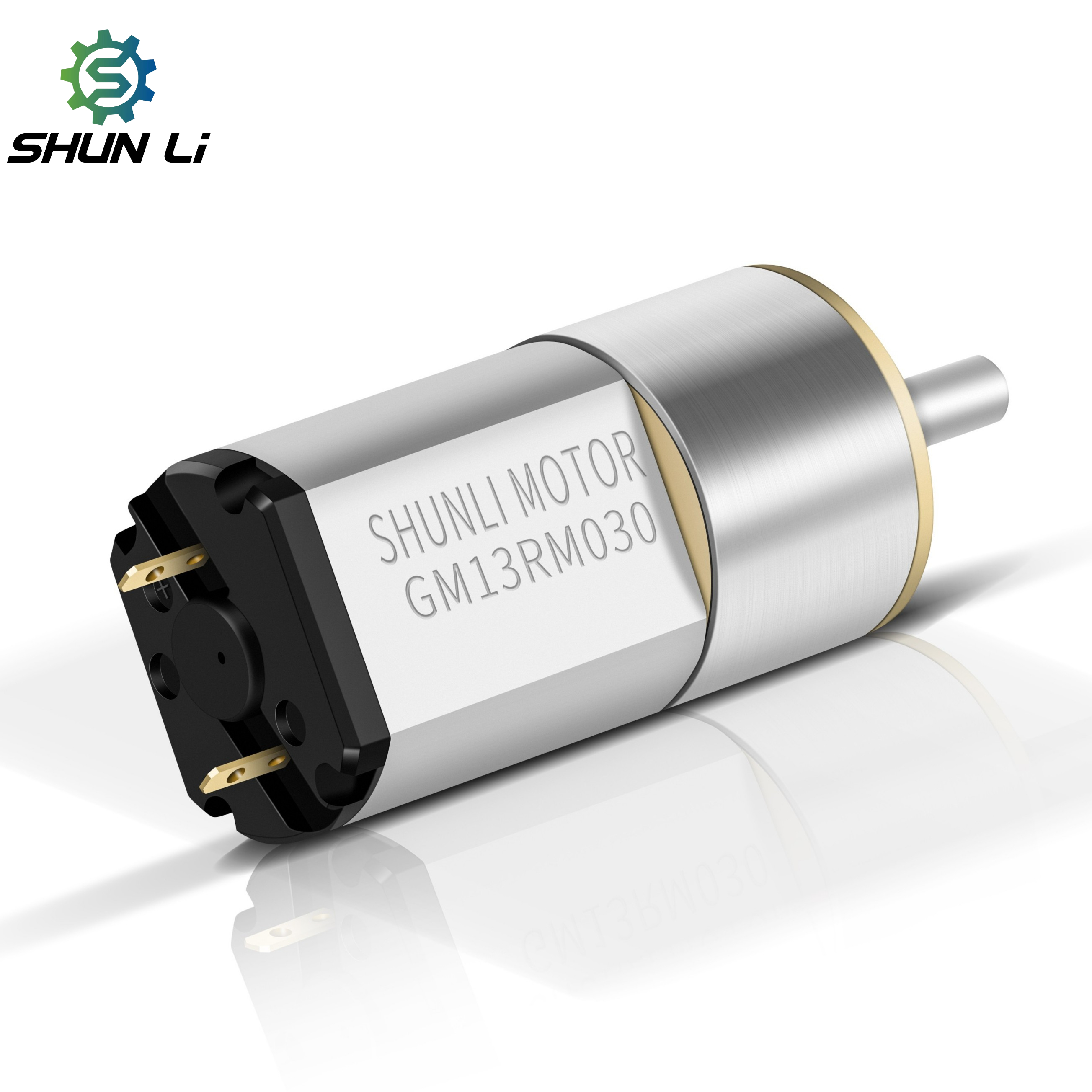

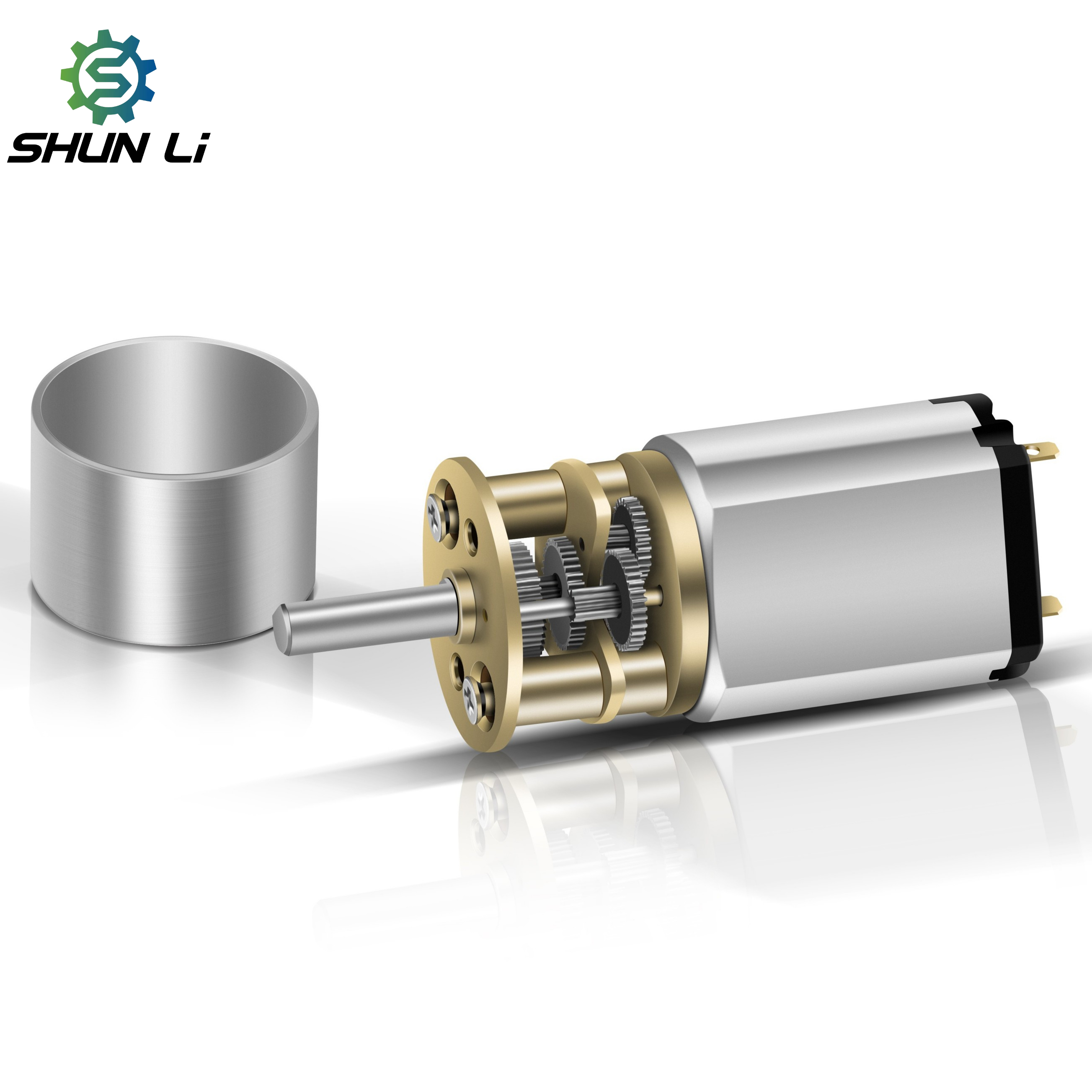

13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
1 / 5
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

Send Inquiry

Product Description

Product Banner
Technical Specifications
Product View
Product Model GM13RM030/050
Gearbox Length 21±0.3mm
Speed 80RPM-325RPM
Voltage 3.7V
Torque 12mN.m/60mN.m
Support Customization Transmission Dimensions And Motor Parameters Can Be Customized
Professional Manufacturing: Specialist in micro DC motors and gear motors with over 14 years of industry experience.

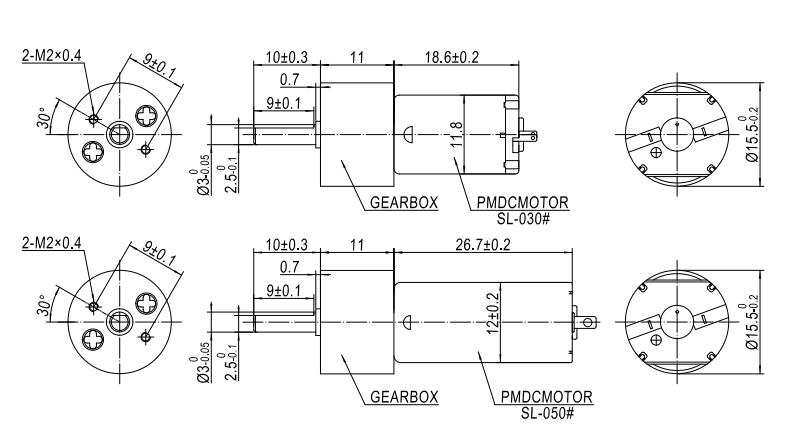

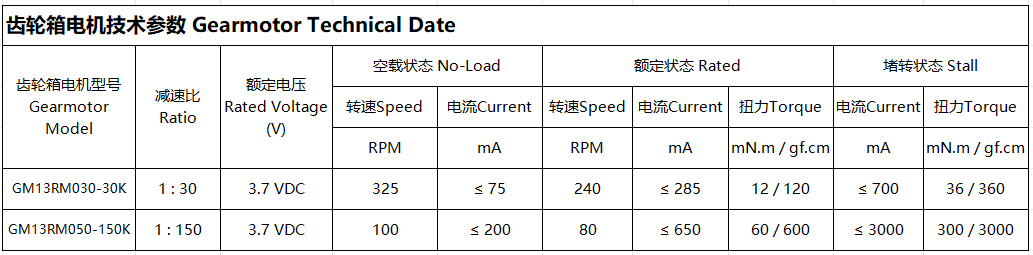

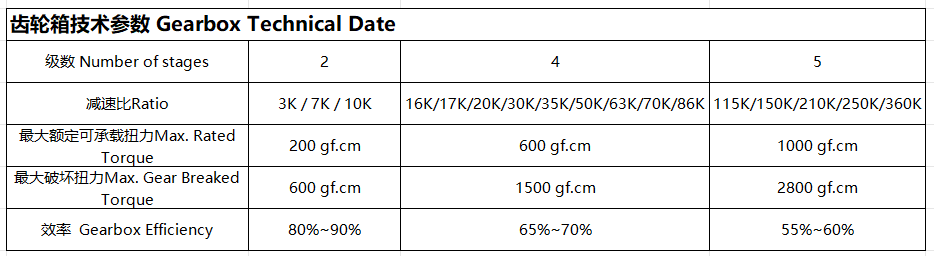

Technical Data Mechanical Drawing Performance Curve
Product Showcase
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can draw up Online Assurance Orders for new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal or TT.
Can you customize a motor if I can't find a suitable one?
Yes, we can customize a suitable motor according to our customer's specific technical requirements and dimensions.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certifications. If you have specific certificate requirements, we can apply for them for you.
How do you manage quality control?
We have professional inspection staff on every production line. Finished motors undergo comprehensive testing using equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical lead time for orders?
Lead times vary depending on order volume and customization requirements. Standard samples are typically processed quickly, while bulk production schedules are confirmed upon order placement.
