MeshLink Motor
1 / 5
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m/gf.cm) | Current (mA) | Torque (mN.m/gf.cm) | |||

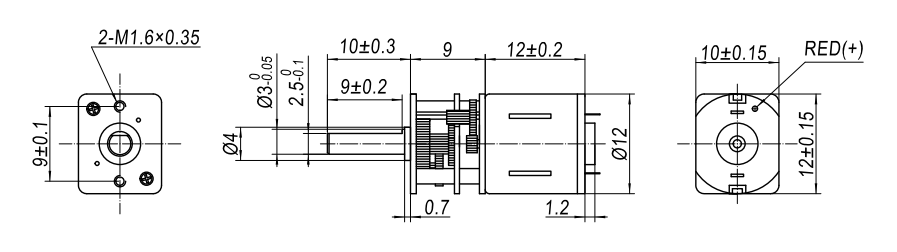

| GM12AMN10-298K | 1:298 | 4.5~6VDC | 70 | ≤80 | 55 | ≤285 | 5.5/55 | ≤700 | 210/2100 |

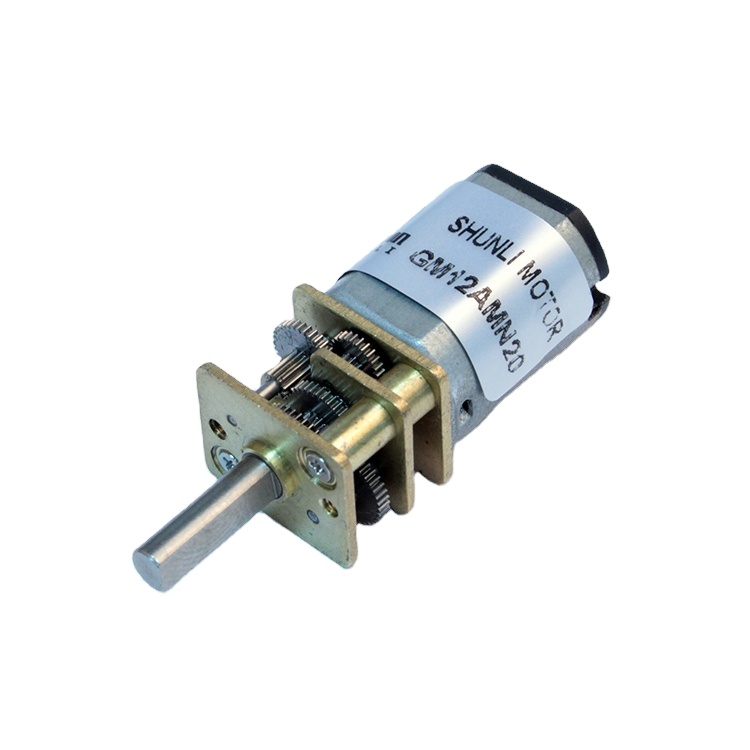

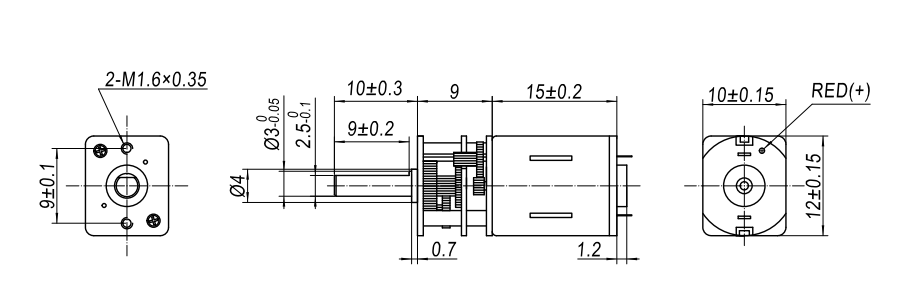

| GM12AMN20-150K | 1:150 | 4.5~6VDC | 92 | ≤55 | 80 | ≤140 | 2.8/28 | ≤700 | 120/1200 |

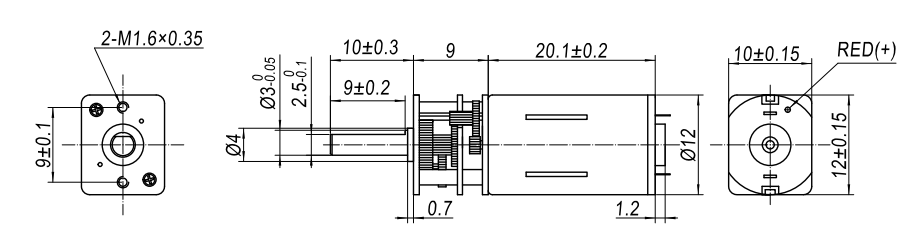

| GM12AMN30-10K | 1:10 | 4.5~6VDC | 2500 | ≤60 | 2200 | ≤195 | 4.0/40 | ≤400 | 26/260 |
| Number of stages | 2 | 4 | 5 | 7 |
| Gearbox Length "L" (mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
We are a factory specializing in producing motors for more than 14 years. With professional R&D teams, mature management, and experienced engineers, we ensure a reliable manufacturing process.
Quality is the basis of our development. Every step, from material receiving to final shipment, is carefully checked to confirm standard compliance.
Recognized seller with high credibility in the motor industry.
100% on-time delivery rate to confirm your product arrives timely.
Standard samples produced within 2 weeks; customized samples within 3 weeks.
Timely response: all inquiries will be replied to within 2 hours.
