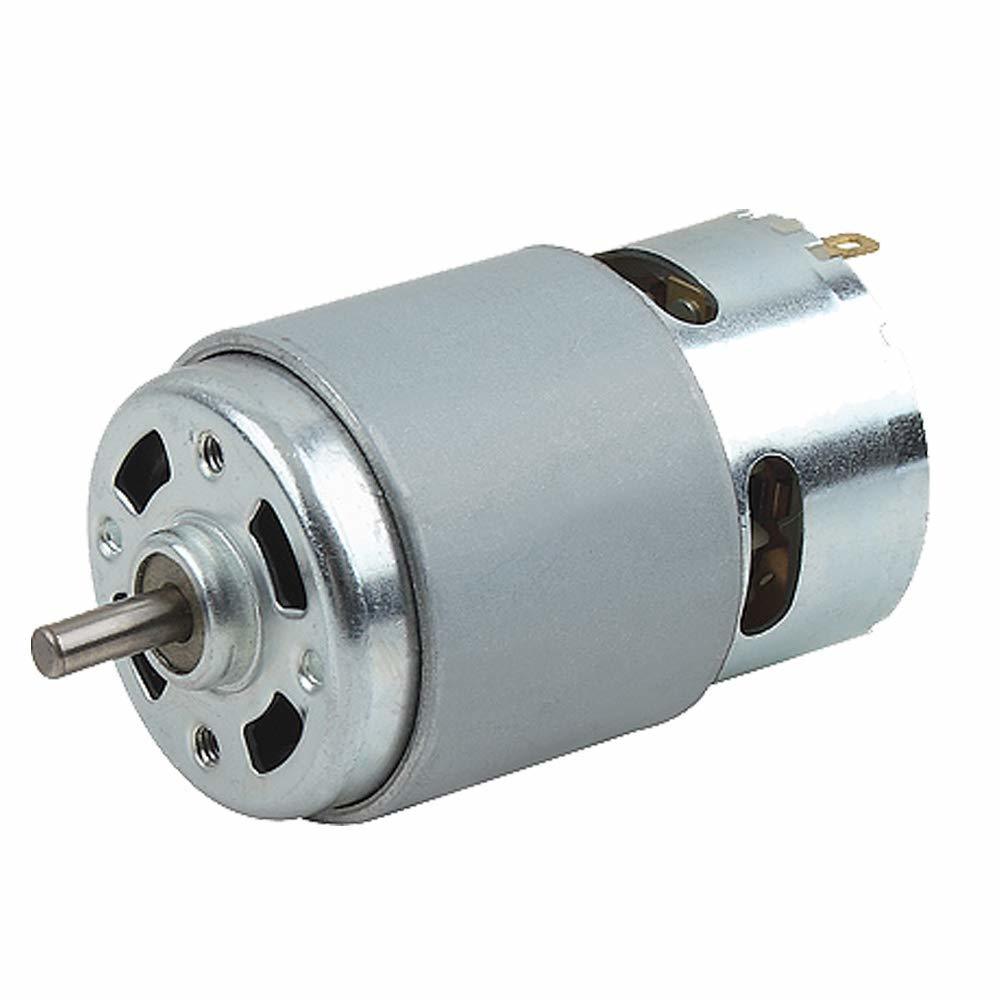

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
1 / 4
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Send Inquiry

Product Description

High Performance DC Motor

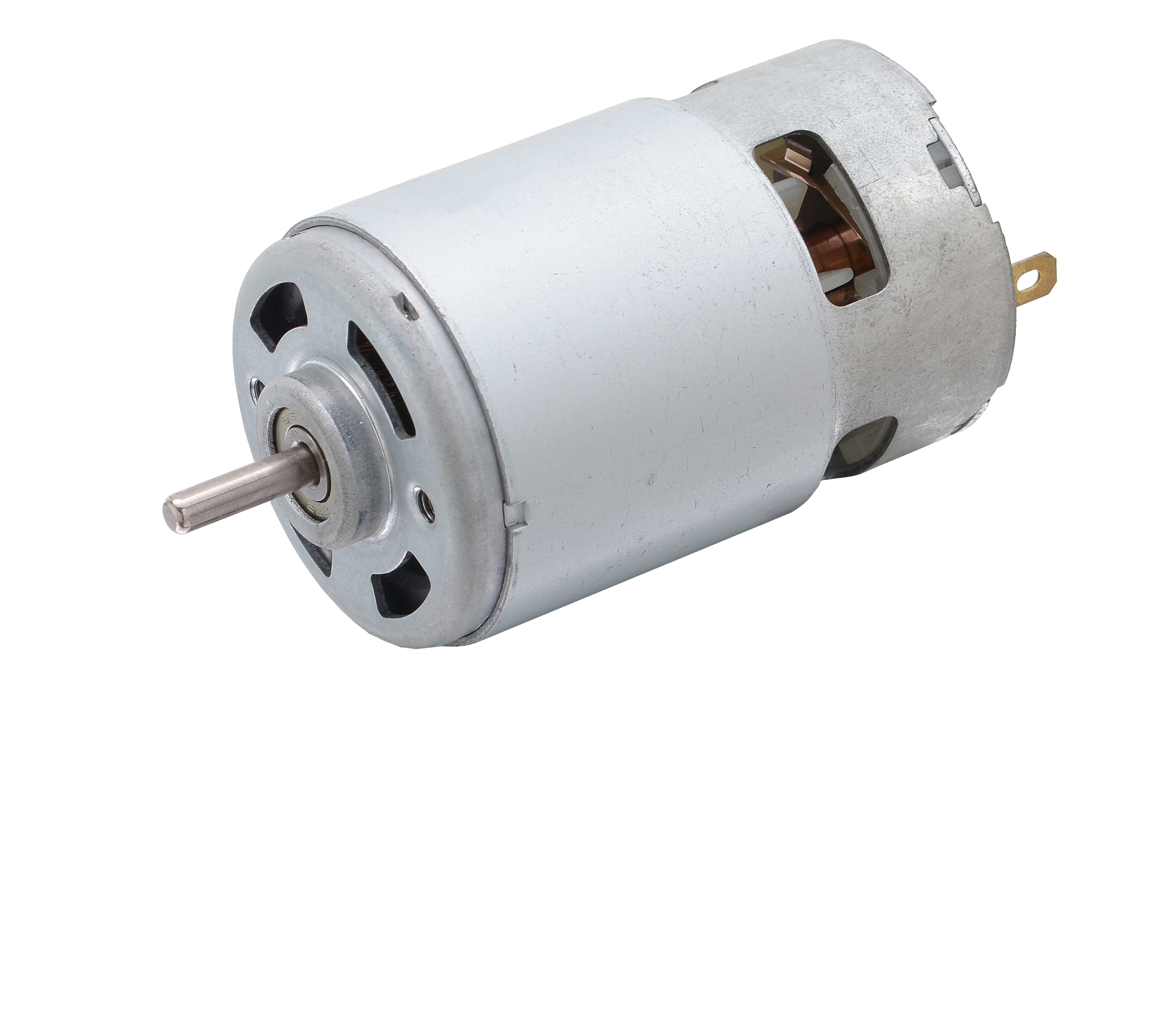

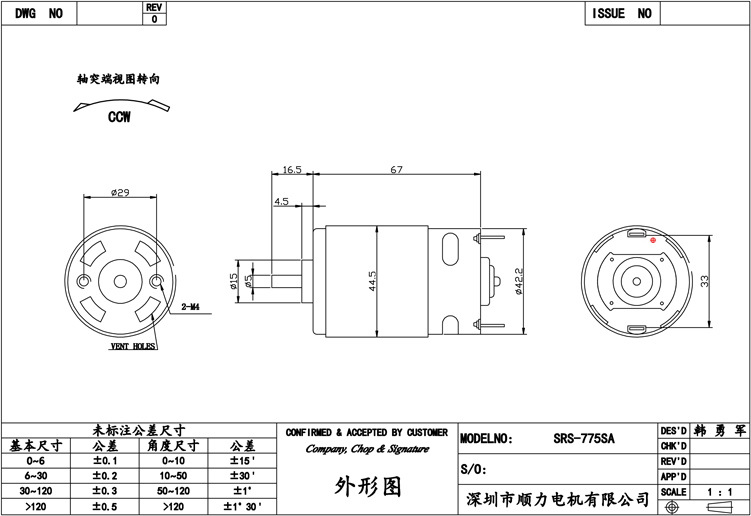

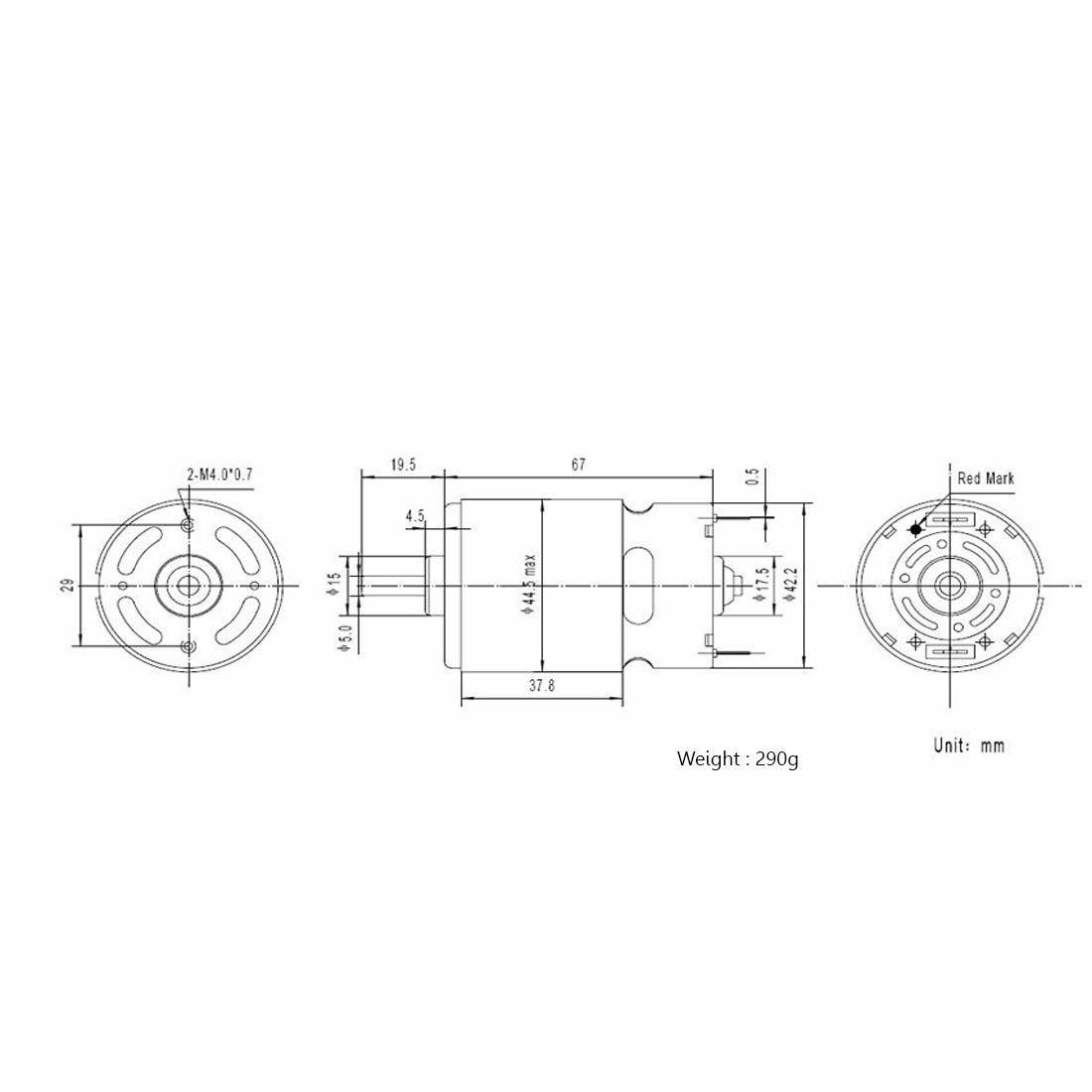

7 Series Motor Dimensions

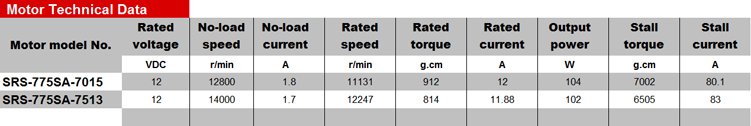

Technical Specifications
Product Model7 Series
Motor Diameter7 Series: 42.3 mm (With protecting ring: 45 mm)
Motor Length755 motor: 59mm | 775 motor: 66 mm
Motor Voltage7.2-48VDC
Motor Speed3000-20000RPM
Motor ShaftStandard 5mm D shaft (Customizable shape & length)
Product Construction
Motor Internal Structure Motor Components Detail

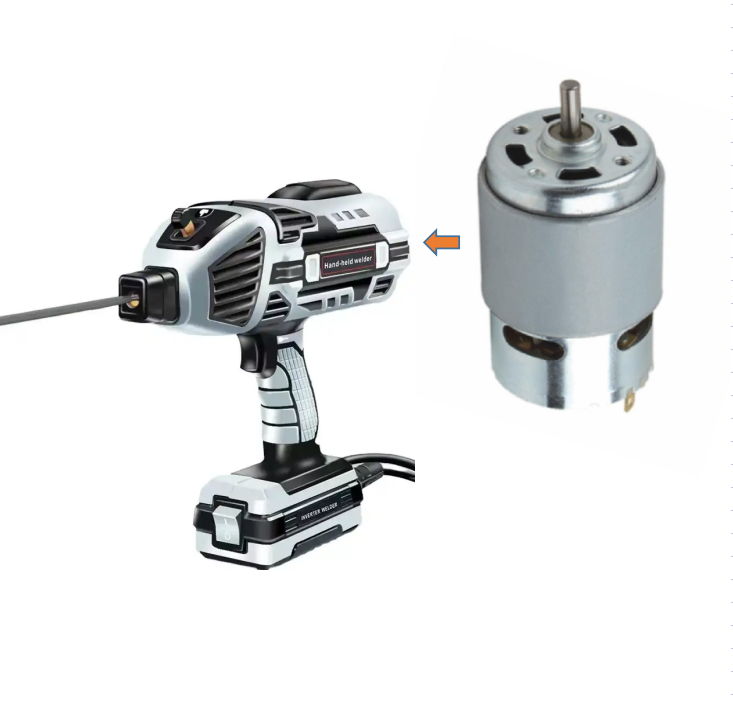

Application & Variations
Motor View 1 Motor View 2 Motor View 3 Motor View 4 Motor View 5 Motor View 6
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a specialized factory. Our expertise lies in micro DC motors and DC gear motors, with over 14 years of industry experience.
2. What are the payment terms for new customers?
We support various payment methods including Online Assurance Orders (MasterCard, Visa), PayPal, and T/T for your convenience and security.
3. Can you customize a motor if I can't find a suitable one on the website?
Absolutely. We provide customization services to modify motor specifications, shaft shapes, and lengths according to your specific requirements.
4. What certifications do your motors hold?
Our products are certified with CE, FCC, and ISO standards. If you require additional specific certifications, we can apply for them based on your needs.
5. How do you ensure product quality control?
We employ professional inspection staff at every stage of production. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testing equipment.
6. What is the typical lead time for bulk orders?
Lead times vary based on customization requirements and order volume. Please contact our support team for a specific timeline based on your project needs.
