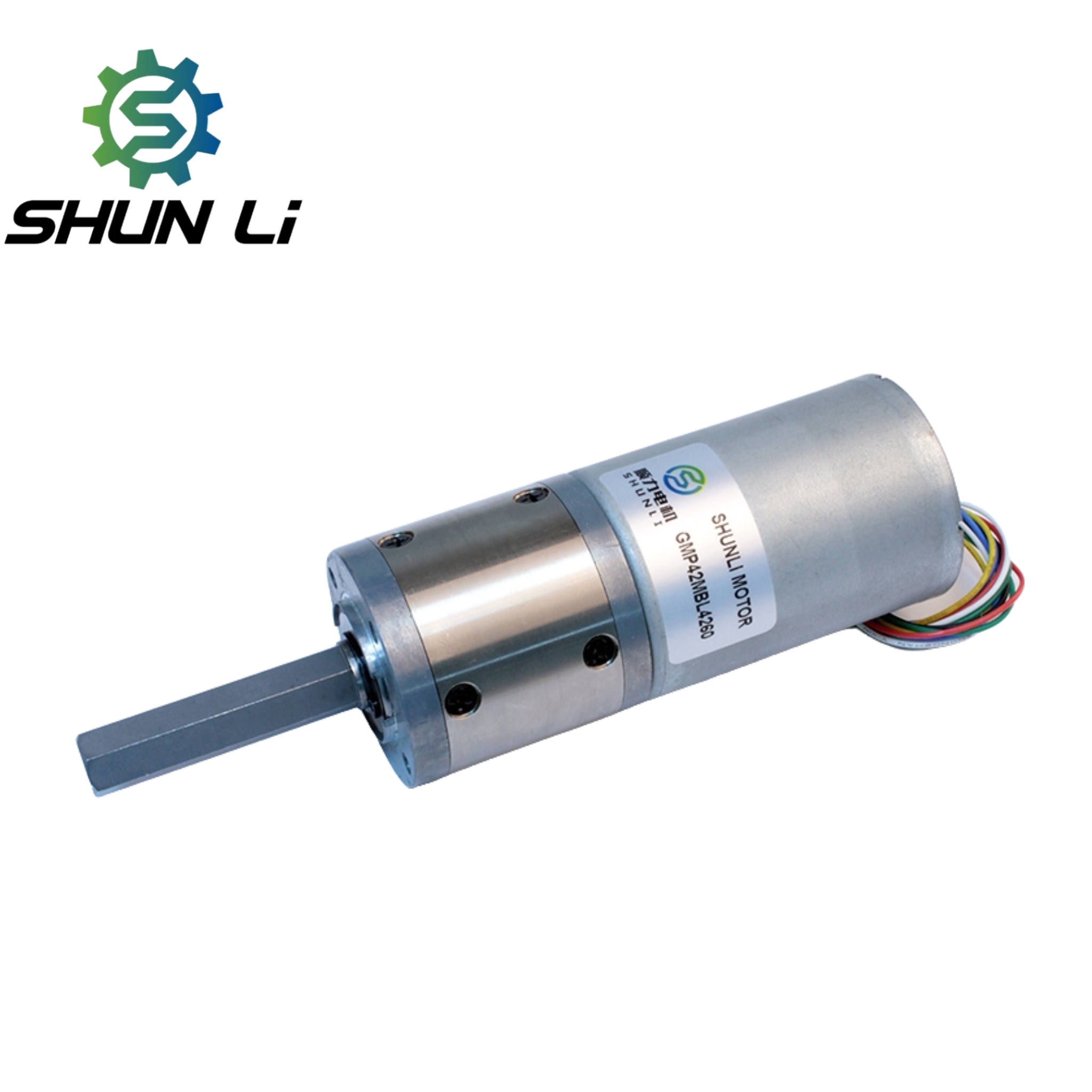

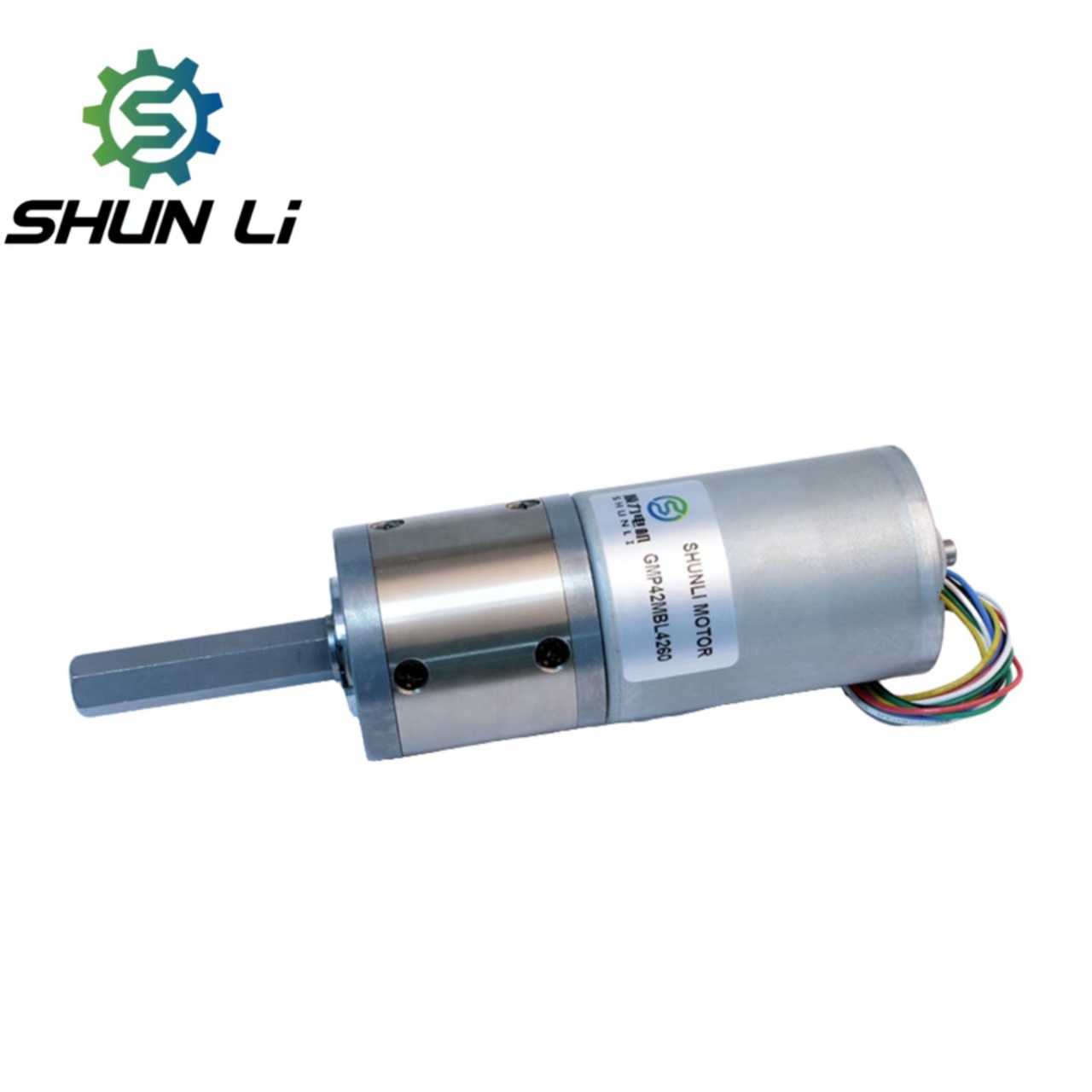

Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor
Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor
Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor
Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor
Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor
1 / 5
Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor
Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor
Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor
Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor
Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor

Low Speed Brushless Motor 24 Volt Hall Effect Sensor Dc Planetary Gear Motor

Send Inquiry

Product Description

Motor Overview
⚙️ PRODUCT SPECIFICATIONS

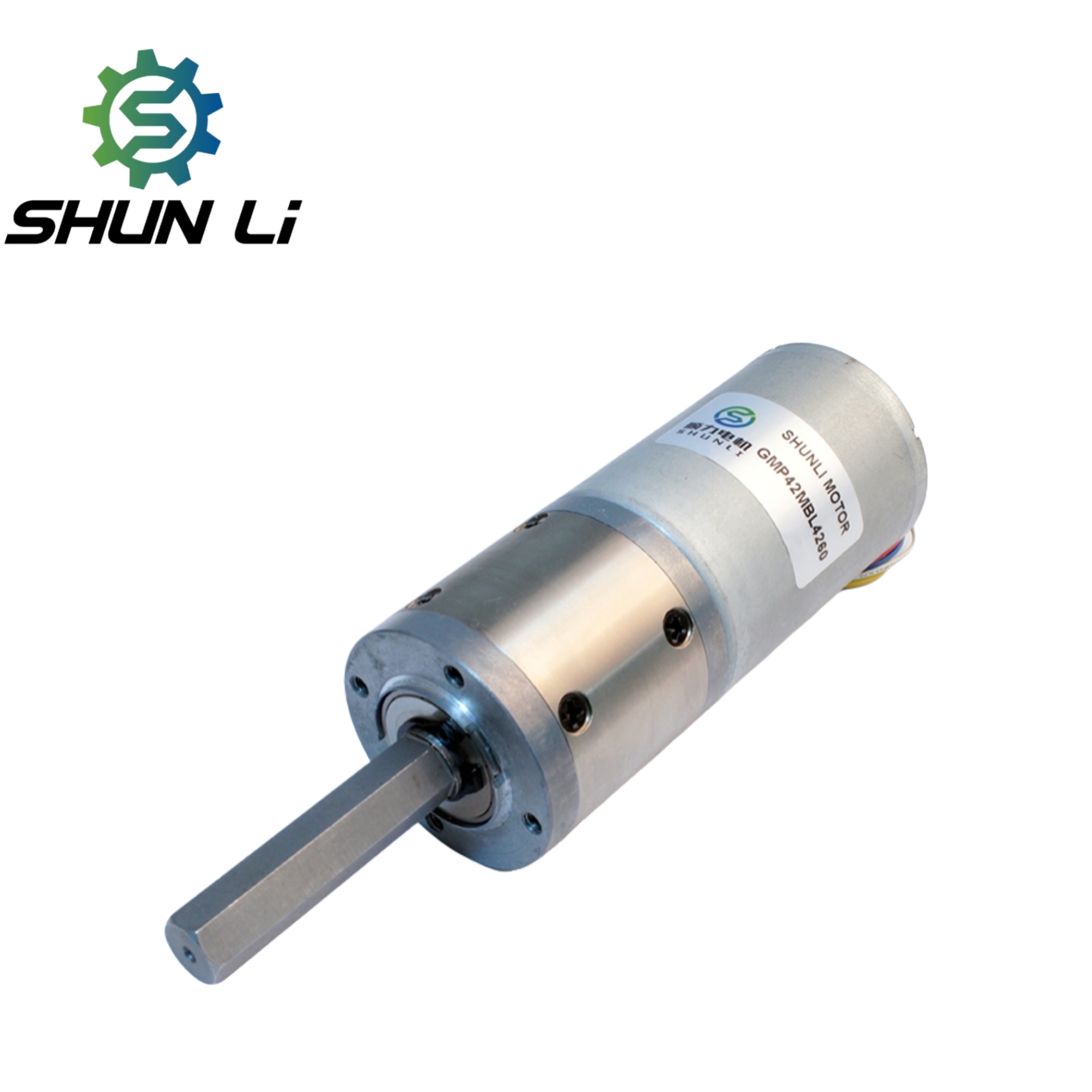

Product Model
Product Model GMP42MBL4260
Gearbox Length 33.5~67.5mm
Speed 8RPM-135RPM
Voltage 12V/24V
Torque 2.5 N.m / 6.0 N.m
Support Customization The Transmission Dimensions and Motor Parameters Can Be Customized
📊 TECHNICAL DIMENSIONS

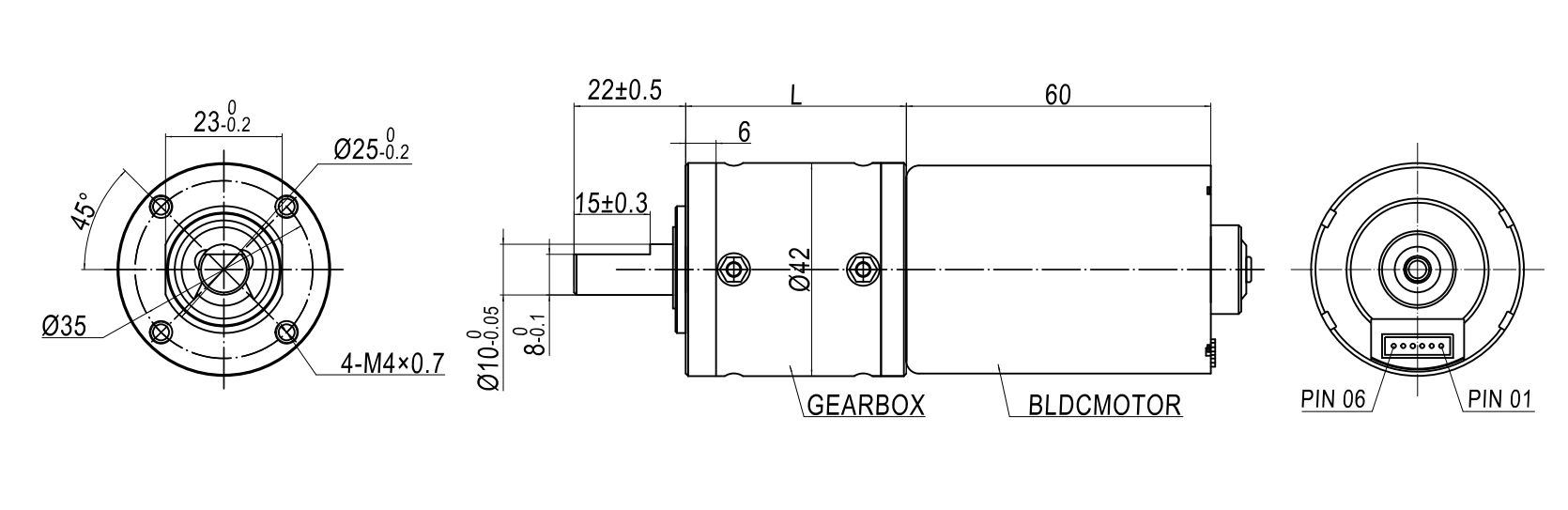

Motor Dimensions

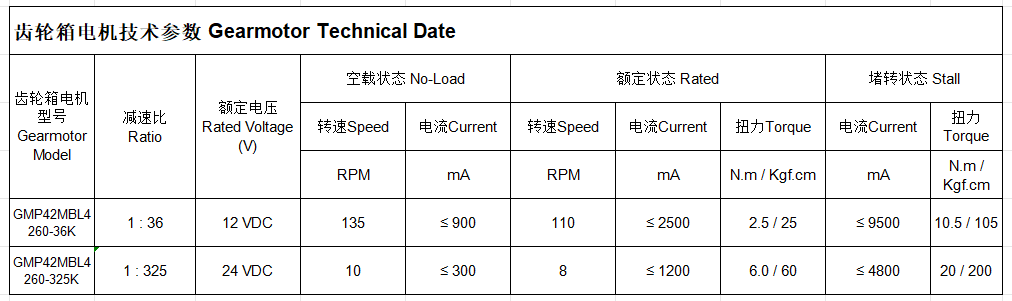

Performance Chart
📷 PRODUCT DISPLAY
Display 1
Display 2
Display 3
Display 4
Display 5
Display 6
❓ FREQUENTLY ASKED QUESTIONS
1. Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer?
We can draw up an Online Assurance Order, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal or TT.
3. Can you customize a motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements if you cannot find one on our website.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. If you have other specific certificate requirements, we can apply for them for you.
5. How is your Quality Control?
We have professional checking staff on every production line process. Our quality testing equipment includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
