Home > Motor In Stock > Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor

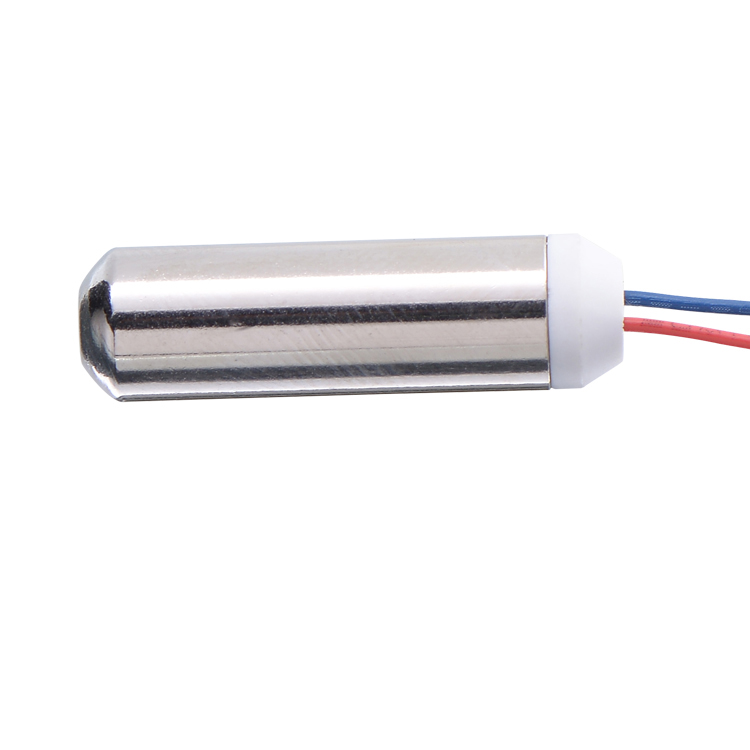

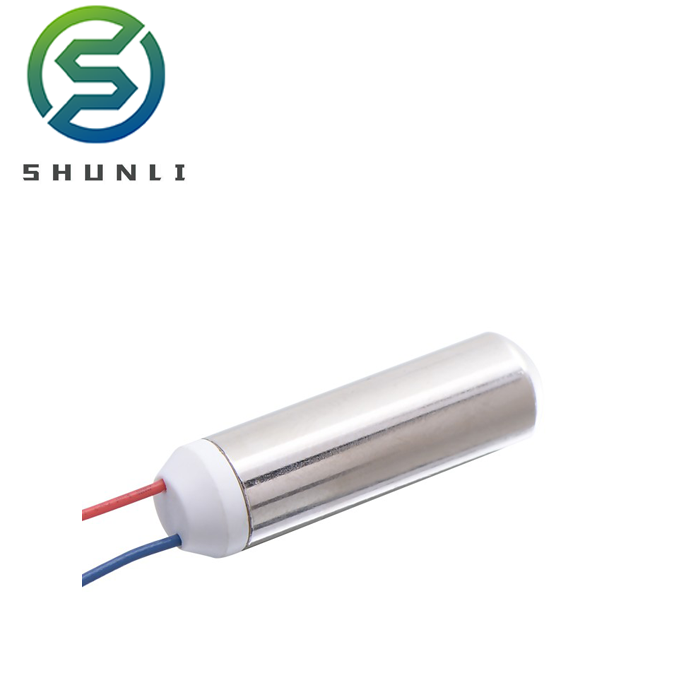

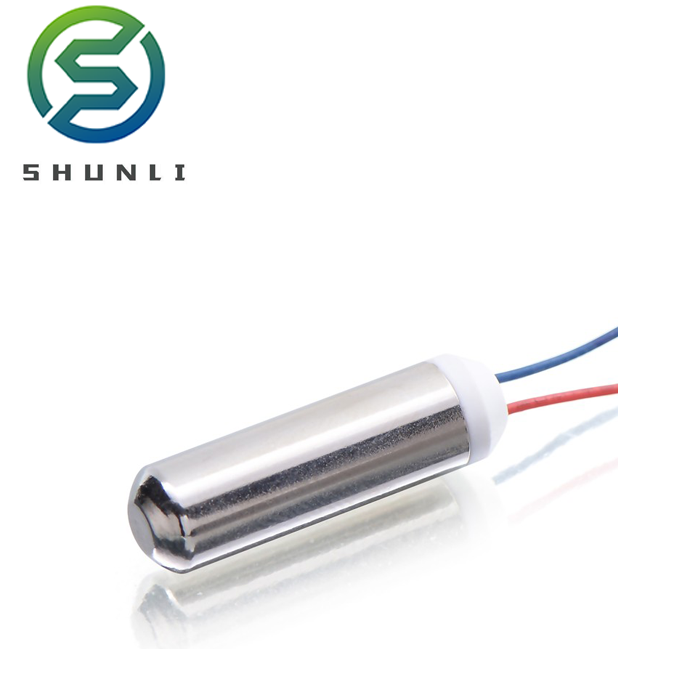

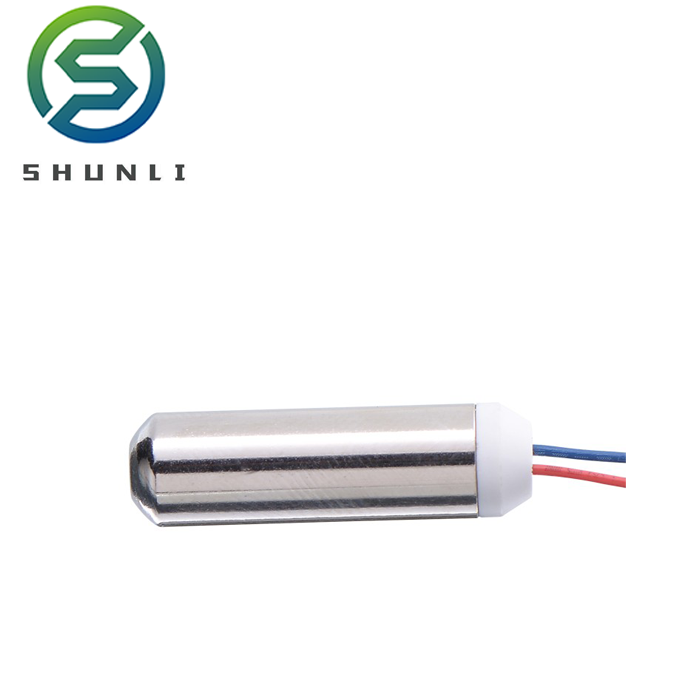

Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor
Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor
Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor
Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor
Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor
1 / 5
Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor
Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor
Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor
Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor
Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor

Shunli Custom 1.5v 3v 5v Micro Vibration Dc Mini Motor

Send Inquiry

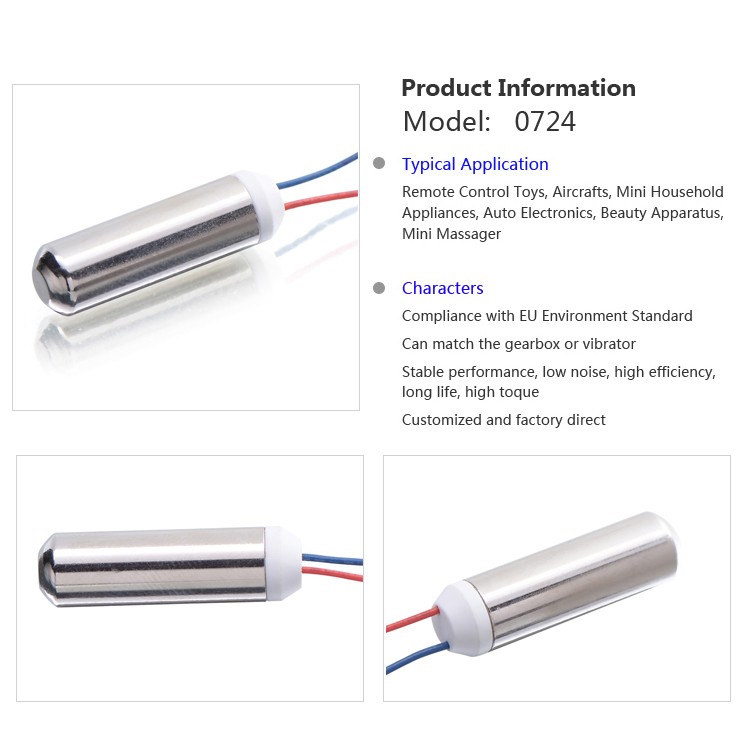

Product Description

Product Features & Promotion
Micro Vibration DC Mini Motor
🚀
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.
1.5v 3v 5v Motor Details
Technical Specifications
MODEL RATED NO LOAD RATED STALL
VOLTAGE (V) SPEED (r/min) CURRENT (mA) SPEED (r/min) CURRENT (mA) CURRENT (mA)
0724 1.5 19900 45 17600 108 480
0724 5 20000 33 18500 65 400
0724 3 25300 28 21300 89 370
Motor Dimension Drawing
Wide Applications
Our micro vibration motors are widely used in smart devices, wearable technology, medical equipment, and industrial automation.
Motor Applications
Certifications & Quality Control
Product Certifications
🛡️
Quality First: From raw material receipt to shipment, every step is carefully checked. Quality is the basis of our development.
Factory Production
Testing Equipment
Frequently Asked Questions
❓ 1. Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
❓ 2. Can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements if you cannot find a standard model on our list.
❓ 3. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certifications. We can also apply for other specific certificates upon request.
❓ 4. How is your Quality Control process?
We have professional inspection staff at every production stage. Finished products undergo rigorous testing including Hardness, 2.5D Image, Salt Spray, Life, Temperature, and Noise tests.
❓ 5. What are your payment terms for new customers?
We offer various secure online payment options including major credit cards, bank transfers, and other common electronic payment methods.
❓ 6. What is the typical life span of these micro motors?
Our motors are designed for high durability and long life cycles, ensuring stable performance in demanding applications.
