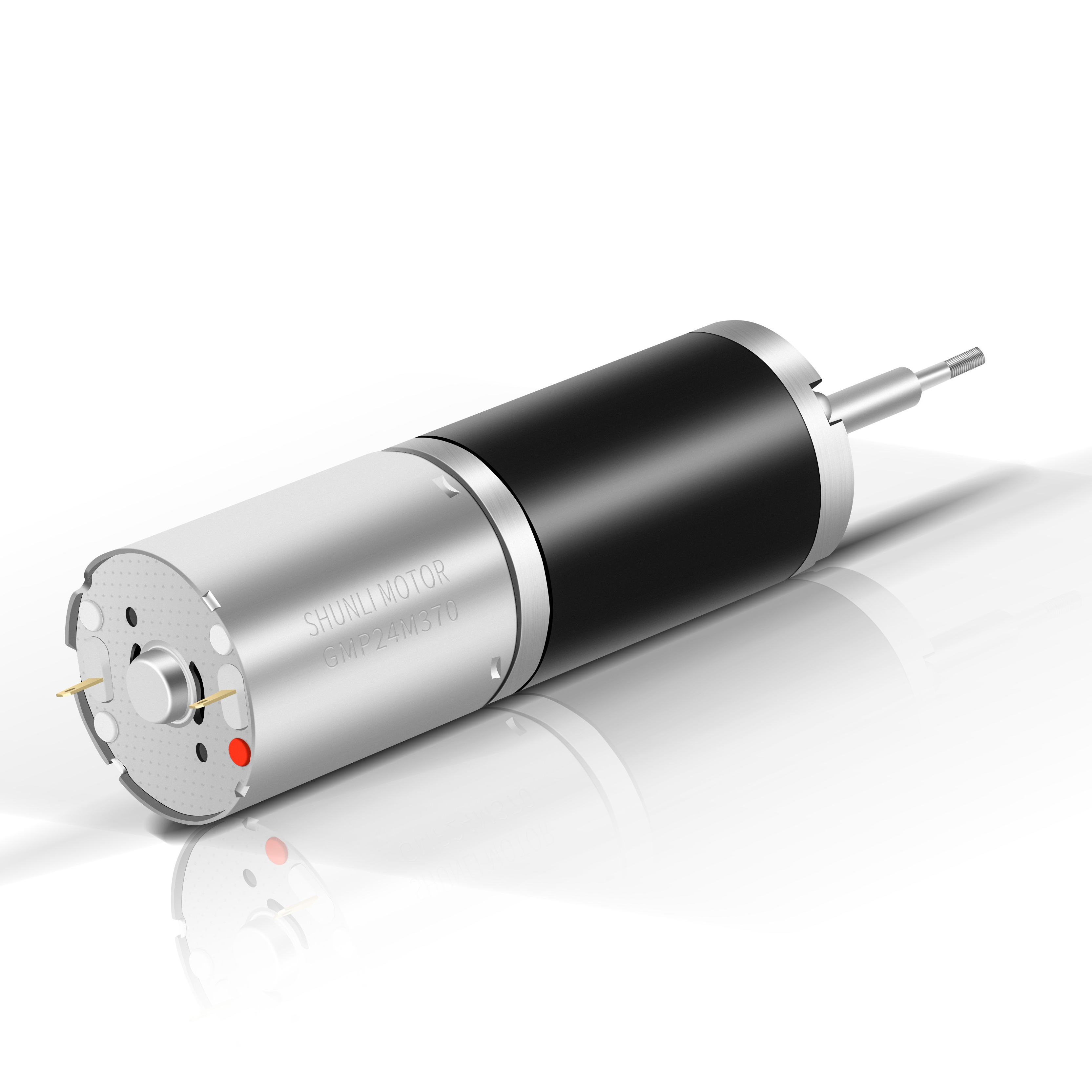

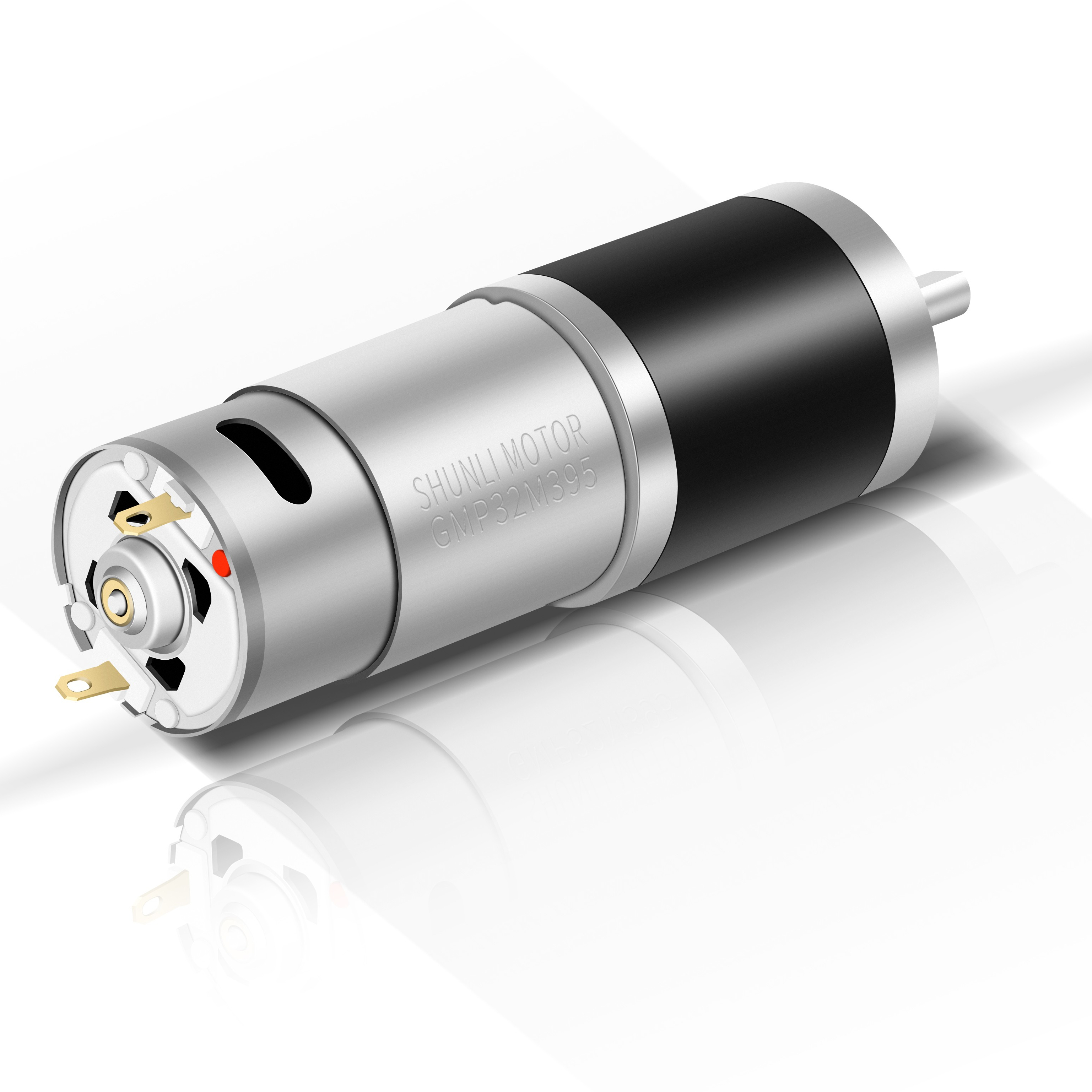

High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
1 / 5
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components

High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components

Send Inquiry

Product Description

Promotion
Promotion Banner
Product Description
Product Details

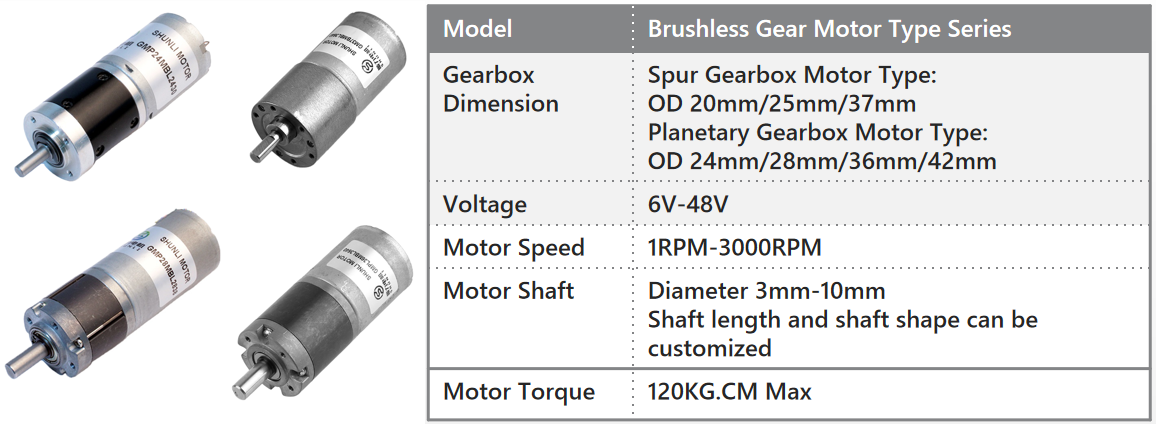

High Torque Brushless Dc Motor Details
The Price & technical specification of different motor type is different, kindly contact our engineer sales service if you're interested in it.
Specification

Gearbox Technical Data

Ratio 3.4K - 5184K
Max. Rated Torque 0.5~120Kgf.cm
Max. Gear Breaked Torque 180 Kgf.cm
Gearbox Efficiency 45%~95%

Gearmotor Technical Data

Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA N.m / Kgf.cm
GM25AMBL2430-217K 1 : 217 12 VDC 18 ≤ 120 15 ≤ 200 0.45 / 4.5 ≤ 950 0.21 / 2.1
GM37BMBL3657-113QK 1 : 113 24 VDC 58 ≤ 400 48.5 ≤ 1400 3.0 / 30 ≤ 7000 10 / 100
GMP36MBL3640-27K 1 : 27 24 VDC 185 ≤ 300 150 ≤ 750 0.45 / 4.5 ≤ 3000 2.25 / 22.5
GMP42MBL4260-325K 1:245 24 VDC 10 ≤ 300 8 ≤ 1200 6N.M / 60KG.CM ≤ 4800 20/200
Outline Drawing

GM25 Motor Type

GM25 Outline Drawing

GM37 Motor Type

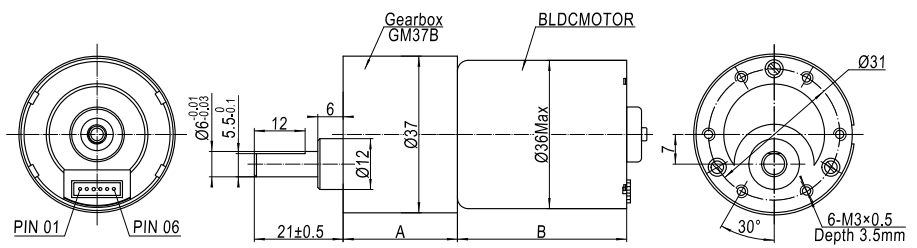

GM37 Outline Drawing

GMP36 Planetary Gear Motor Type

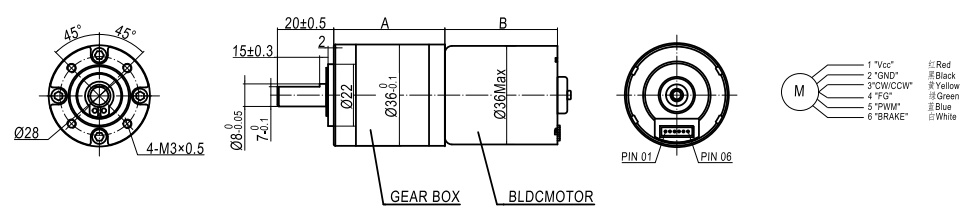

GMP36 Outline Drawing

GMP42 Planetary Gear Motor Type

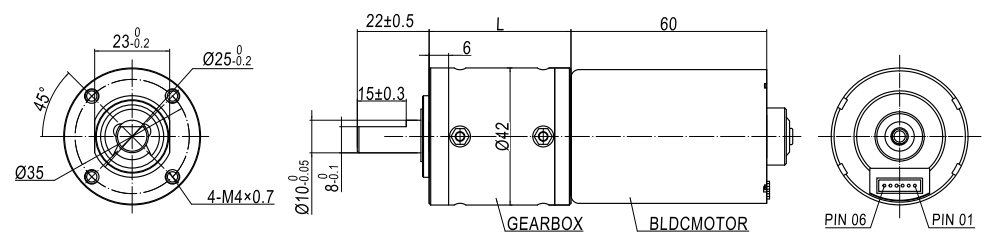

GMP42 Outline Drawing
Certificate & Customer Evaluation
Certificates
Customer Evaluation
Application
Motor Applications
Production & Service
Our Factory
Factory Overview
Has been established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.
Quality Control
In order to confirm quality, from we receive material to shipment to be carefully checked every step of the way. Quality is our basis of our development.

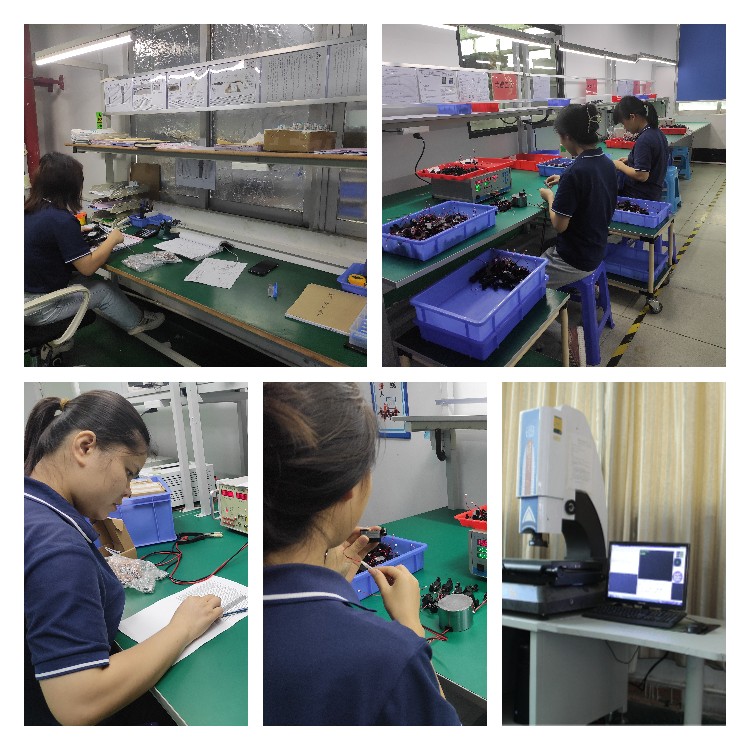

Quality Control Process
Our Service
Credibility We are gold seller and in possession of high credibility.
Delivery 100% on-time delivery rate confirm your product arrives timely.
Samples Samples produced within 2 weeks. Customized samples within 3 weeks.
Support Timely reply, technical service support, message replied within 2 hours.
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing the motor, we use equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers for full quality verification.
How long does it take for sample production?
Standard samples are typically produced within 2 weeks, while customized samples are completed within 3 weeks.
