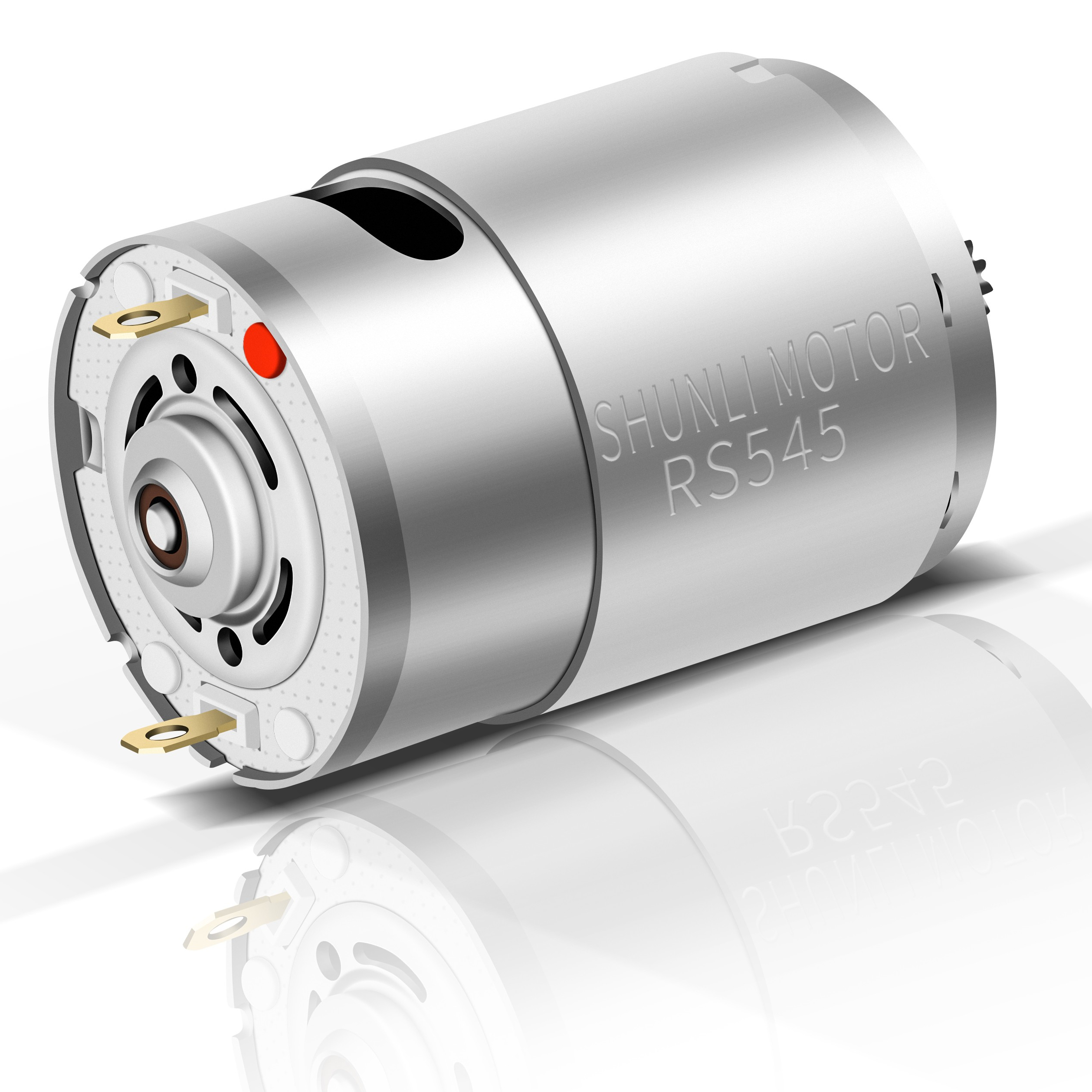

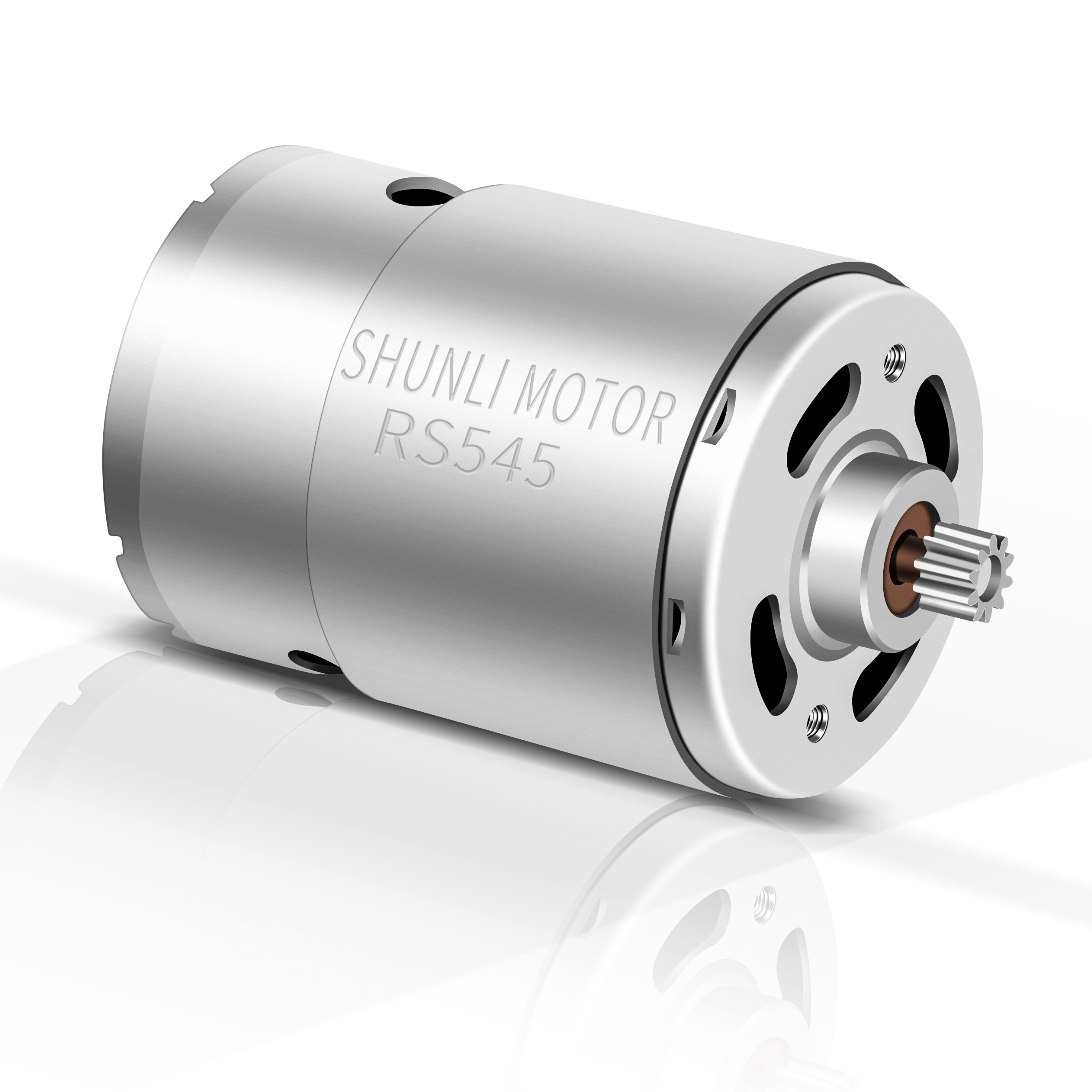

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

1 / 5

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

⚡ Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

Motor Customized Specification

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7	10.6
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6	40.36
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9	15.35
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2	12.09

RS - 545 A Series

❓ Frequently Asked Questions

What is the voltage range for the RS 550/545/555 motors?

These DC motors support a versatile operating range from 6.0V to 24.0V, making them suitable for various battery-powered and industrial power supply applications.

What is the maximum RPM these motors can achieve?

Depending on the specific model and voltage configuration, these high-speed motors can reach speeds up to 30,000 RPM.

Are these motors suitable for high-torque applications?

Yes, models like the RS-550H provide rated torque levels up to 25.7 mN.m, designed for power tools and performance equipment.

Can the technical specifications be customized?

The motor specifications including speed, voltage, and shaft configuration can typically be customized to meet specific application requirements.

What are the typical applications for these DC motors?

Commonly used in cordless power tools, vacuum cleaners, automotive parts, models, and various high-speed DIY projects.

How do I choose between the RS-550, 545, and 555 models?

Choice depends on your power requirements, space constraints, and target RPM. The RS-550 is generally higher in power and speed compared to the smaller 545 variant.

Product Detail

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Product Description
