775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

1 / 5

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Send Inquiry

Product Description

775 DC Motor for Power Tools - High Torque 12V 24V DC Motor

🚀 Product Details

Note: Motor Specifications can be fully customized based on your application requirements.

📐 Reference Drawings

Model: RS - 755 H

Model: RS - 775 H

Customization: The length of the shaft can be adjusted to fit your specific power tool design.

📊 Technical Data Sheet

Model	Operating Range (V)	Nominal Voltage	No-Load		Rated Load				Stall
Model	Operating Range (V)	Nominal Voltage	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-770H	6.0 ~ 12.0	12 VDC	15000	2.2	13177	15.91	81 / 826.2	111.8	115	666.9 / 6802
RS-775H	6.0 ~ 24.0	24 VDC	3478	0.15	2925	0.75	44.4 / 452.9	13.35	4.07	245.7 / 2506

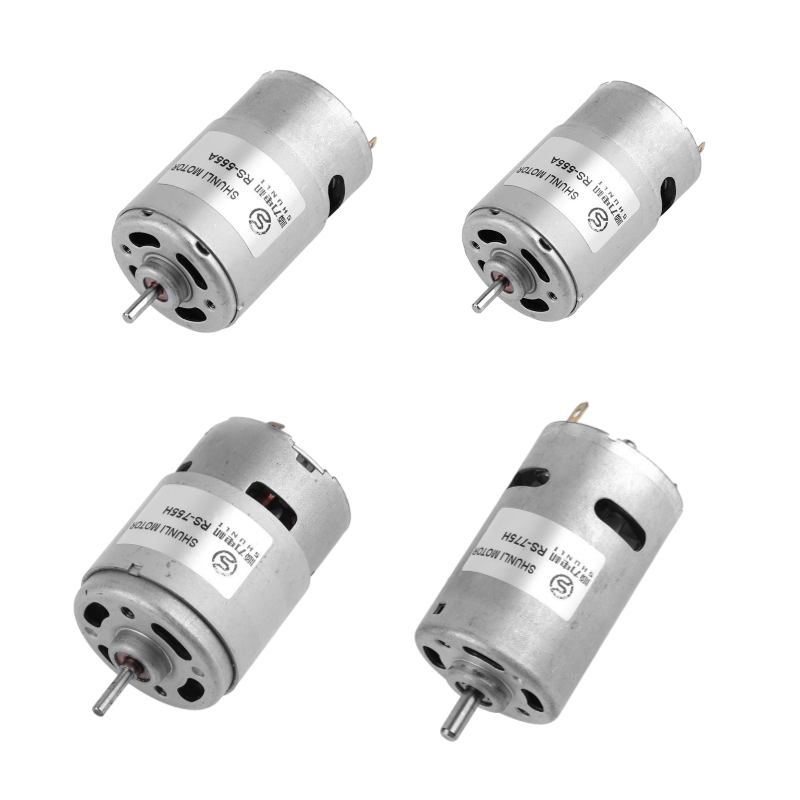

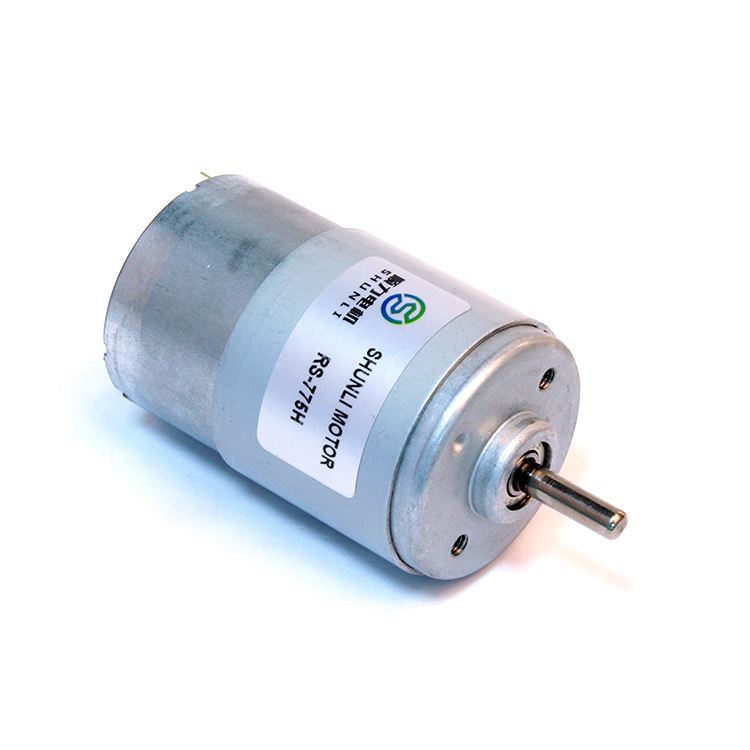

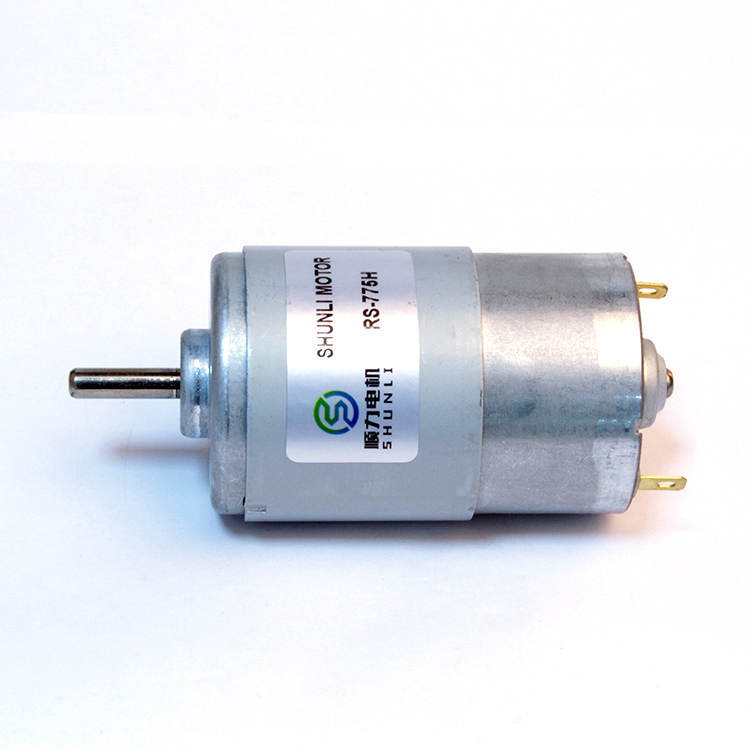

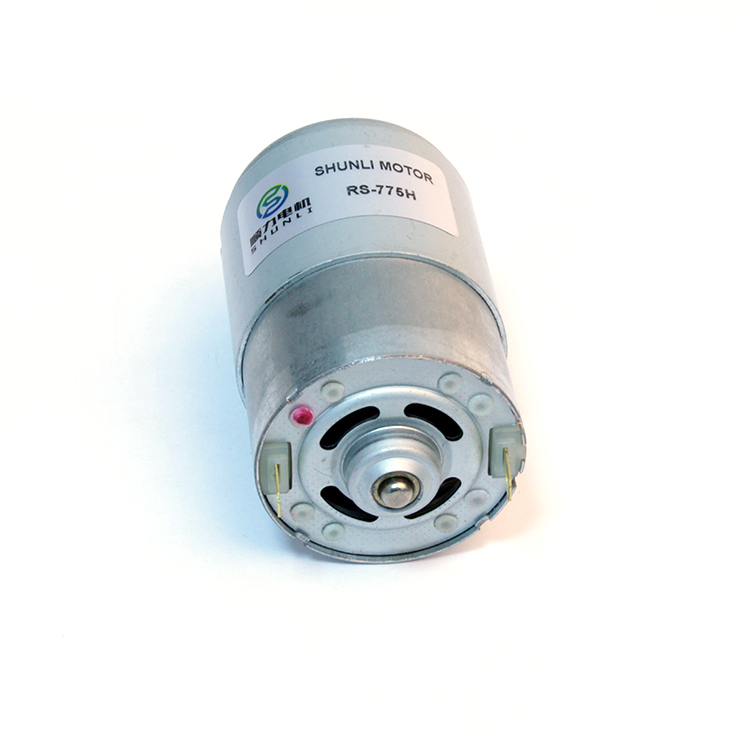

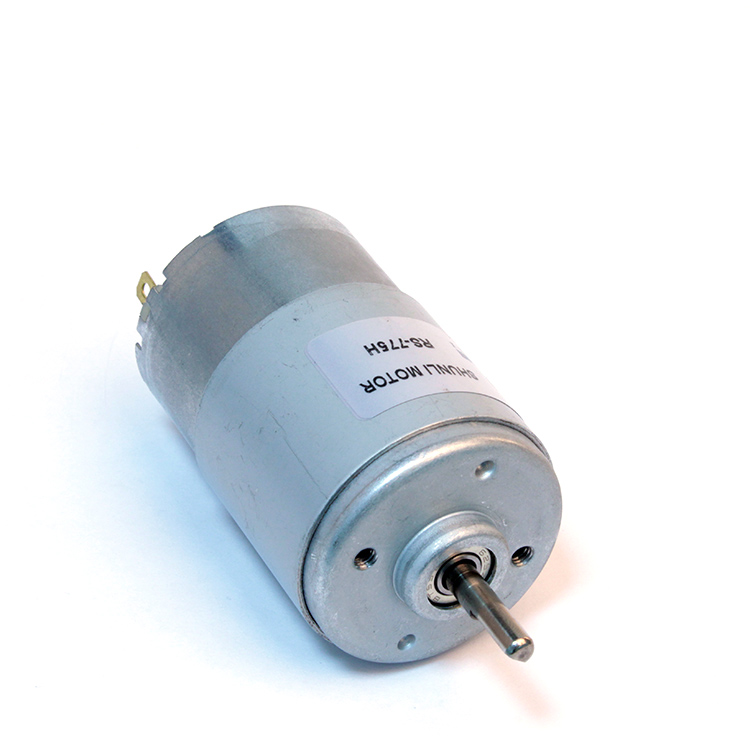

🖼️ Product Showcase

❓ Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.

What are the available payment terms for new customers?

New customers can pay online via Master Card, Visa, etc. We also accept PayPal and TT transfers.

Can you provide customized motors if I can't find a suitable one on the website?

Yes, we can customize motor specifications, including voltage, speed, torque, and shaft length, according to your specific requirements.

Do your motors carry any quality certifications?

Yes, our motors are certified with CE, FCC, ISO, and other relevant standards. We can apply for additional certificates if required.

How do you ensure the quality of your DC motors?

We employ professional inspection staff at every stage of the production line. Final products undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.

What is the typical operating range for the 775 series motors?

The 775 series typically operates within a range of 6.0V to 24.0V DC, making it highly versatile for various power tool applications.

Product Detail

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Product Description

775 DC Motor for Power Tools - High Torque 12V 24V DC Motor
